System Q HandyQUAD QUAD050 How-To

How to
FIT CCTV
Question: How can I view my CCTV cameras on a screen as a
Picture in Picture display?
Answer:
Use a HandyQUAD device to view one picture inset into another or choose from any of its 7 display
modes including Vertical and horizontal split screen
Quad
Full Screen
This CCTV installation tip is aimed at helping you to install CCTV equipment. If you are looking for answers on "how to fit CCTV" or perhaps "how to network a DVR or
NVR" or even "how to get CCTV on your mobile phone" why not check out our full range of CCTV installation tips at: www.systemq.com
How to guides aim to answer commonly asked questions in a concise and informative manner. They are for advice & guidance only and do not replace any of the manuals or other literature supplied with our products.
System Q Ltd. McGregor's Way, Turnoaks Business Park, Hasland, Chesterfield, S40 2WB
Telephone: 01246 200 000
Copyright © System Q ltd
Compatible with analogue as well as HD cameras (HD-TVI & AHD)

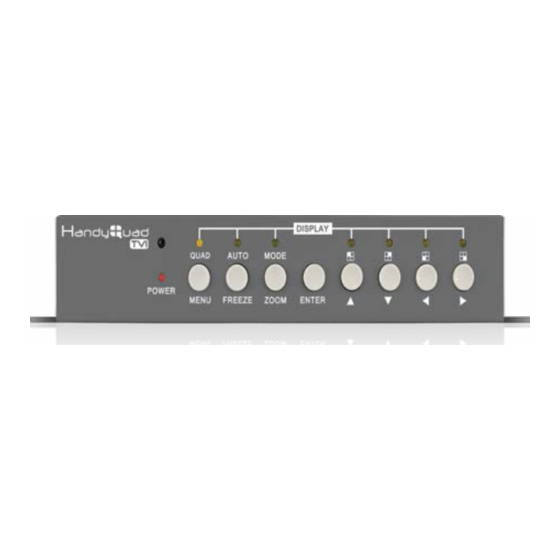

the HandyQUAD is a great device to configure different display
options on a screen. With 7 display modes, it's easy to use up to
4 video loopthroughs from a DVR or distributor to configure the
ideal display option for a Reception area or to have on display to
customers in a retail outlet.
Product Code: QUAD050
7 Display Options
Easy channel selection
Picture In Picture
Switching
Vertical Split
