ALS RFL251R User Manual

ALS RFL251R User Manual

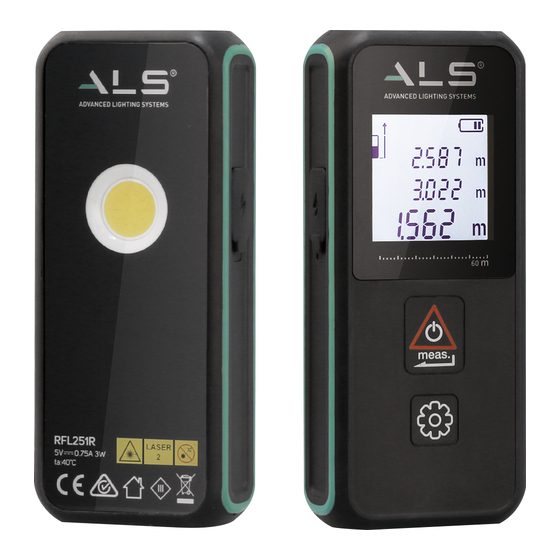

250lm rechargeable laser range finder work light

Advertisement

250lm rechargeable laser range finder work light
RFL251R
125/250 lumen
(step 1/2)
Top: 120 lumen
2-3h
120 g
Front: COB LED
Top: High power LED
650 nm wavelength
Top: Laser LED
47x23x111 mm
Incl. CHARGER
Input: 100-240V AC 50/60Hz
Output: 5V DC 1.5A
Above specifications apply to the work light only
<1mW
3.8V/1600 mAh
IMPACT
0
o
RESISTANCE
Front: 4/2h (step 1/2)
Li-poly
Top: 2.5h
to +40
C
IP20
o
Work light specifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFL251R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ALS RFL251R

  • Page 1 250lm rechargeable laser range finder work light RFL251R 125/250 lumen Front: COB LED <1mW 3.8V/1600 mAh Front: 4/2h (step 1/2) (step 1/2) Top: High power LED 650 nm wavelength Li-poly Top: 2.5h Top: 120 lumen Top: Laser LED 2-3h 47x23x111 mm...
  • Page 2 Product Features: • Front COB LED provides 250/125lm brightness • 120lm top high-power LED lamp can be used as a flashlight for narrow work areas as well as to illuminate your distance measurement target • Measuring range up to 60m with high accuracy +/- 3mm •...
  • Page 3 5. Then short press the MEASUREMENT BUTTON to start measuring. When laser distance measurement is on, the laser icon will appear and blinking (per below) Measurement ongoing 6. Short press the MEASUREMENT BUTTON to capture and record distance (the measurement icon will disappear) Recorded distance...
  • Page 4 7. Short press the MEASUREMENT BUTTON to take a new measurement, the laser icon will reappear, distance measurement will change to actual distance and the previous recorded distance will show in an upper row. Then press again to capture the distance. Measurement ongoing Last recorded distance Last recorded distance...
  • Page 5 9. Short press SETTINGS BUTTON to toggle measurement mode between measuring from the top of the lamp or bottom of the lamp Measure from bottom of lamp Measure from top of lamp 10. Press and hold SETTINGS BUTTON for at least 3 seconds to change unit of measurement (ft = feet , in = inches, m = meters) m= meters ft = feet...
  • Page 6 The green charging indicator lights up when charging is completed • Recharge frequently • Always replace the battery with an original ALS battery • Do not leave the battery without charge for an extended period - Deep discharge risks damaging the battery •...
  • Page 7 Patent Information www.advancedlightingsystems.com // SCANGRIP A/S Rytterhaven 9 DK-5700 DENMARK...
