Summary of Contents for Xforce PR-104

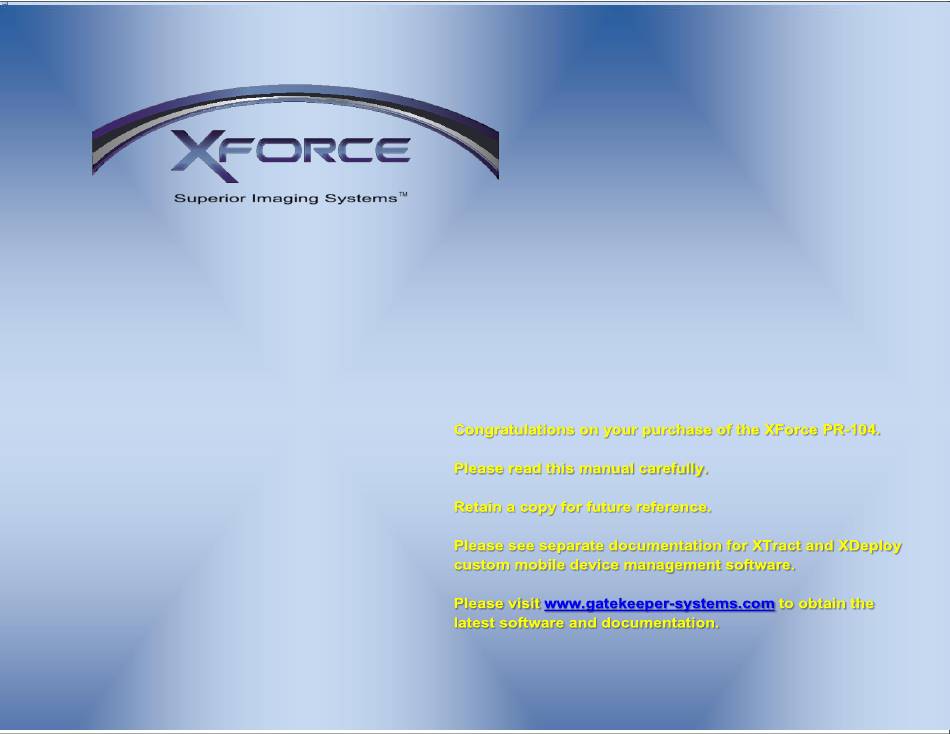

- Page 1 P a g e...
-
Page 2: Table Of Contents
Installing the USB Windows 8/8.1 (64bit); Windows 10............................9 How to Enable .netFramework in Windows 8/8.1; Windows 10........................... 9 Installing the USB Drivers....................................10 APPENDIX..........................................11 Trouble Shooting......................................... 11 DN2794 X Force PR-104 V1.1 P a g e... -
Page 3: Component Description
One second intervals. 11. PTT. Press To Talk. 12. Screen Button. Press to place PR-104 into Sleep mode. Press any other button to activate XForce PR-104. Please see Video Record for more information on the M Button. 13. Playback Button. Displays menu items for Video Playback; Snap Shot, and Audio playback. Press once on a selected menu item and a sub menu will appear for that item. -
Page 4: Basic Operation
IR Function. In low level light situations the XForce PR-104 has in-built IR Functionality. To activate the IR Functionality on the XForce PR-104 press and hold the M button for 3 seconds. If IR Functionality is activated all Video recordings and Snap Shots will be in Black and White. -
Page 5: Snap Shot
In Playback Mode use the Snap Shot button to fast forward current video. Fast forward is available at X2, X4, X8, X16, X32 and X64 speed. Once the required start point in the video has been reached, press the Playback Button. DN2794 X Force PR-104 V1.1 P a g e... -
Page 6: Audio File Playback
Displays the current position of video playback in relation to the total file length, 6 Minutes 41 seconds of 10 minutes 5 seconds, in the example on the right. 2. Displays the XForce PR-104 ID as set in XDeploy custom mobile device management software. -
Page 7: Photograph File Playback
Please Note: In thumbnail view if Snapshots have been recorded at their highest resolution, the thumbnail will display as a white square titled 18M. This is due to pixel limitation on the playback screen. These Snapshot files will display as expected when the PR-104 is connected to a PC. -
Page 8: Reset
Reset If there is a need to reset the XForce PR-104, use a fine point pen and depress the reset button on the device. Note: Resetting the XForce PR-104 does not cause the loss of any data or file corruption. -
Page 9: Installing The Usb Windows 8/8.1 (64Bit); Windows 10
Installing the USB Windows 8/8.1 (64bit); Windows 10. In order for XDeploy and XTract software to function with the XForce PR-104, USB drivers must be installed on the target PC. The drivers install normally with Windows Vista (32 bit/64 bit) and Windows 7 (32 bit/64 bit) and Windows 8 (32 bit). -
Page 10: Installing The Usb Drivers
On the screen which now appears press 7 (“Disable Driver Signature Enforcement”) on the keyboard. Please Note: This will disable driver signature enforcement for the current session. 10. Login to the Computer as normal. With the XForce PR-104 connected to the Computer and powered on install the Direct-USB driver package. Accepting all default values. -
Page 11: Appendix
Loose Power Connection. Power on Check the connector and reconnect. unexpectedly long and charging via USB cable. Turn off the XForce PR-104 allow it to be fully charge and then restart. DN2794 X Force PR-104 V1.1 11 | P a g e...
