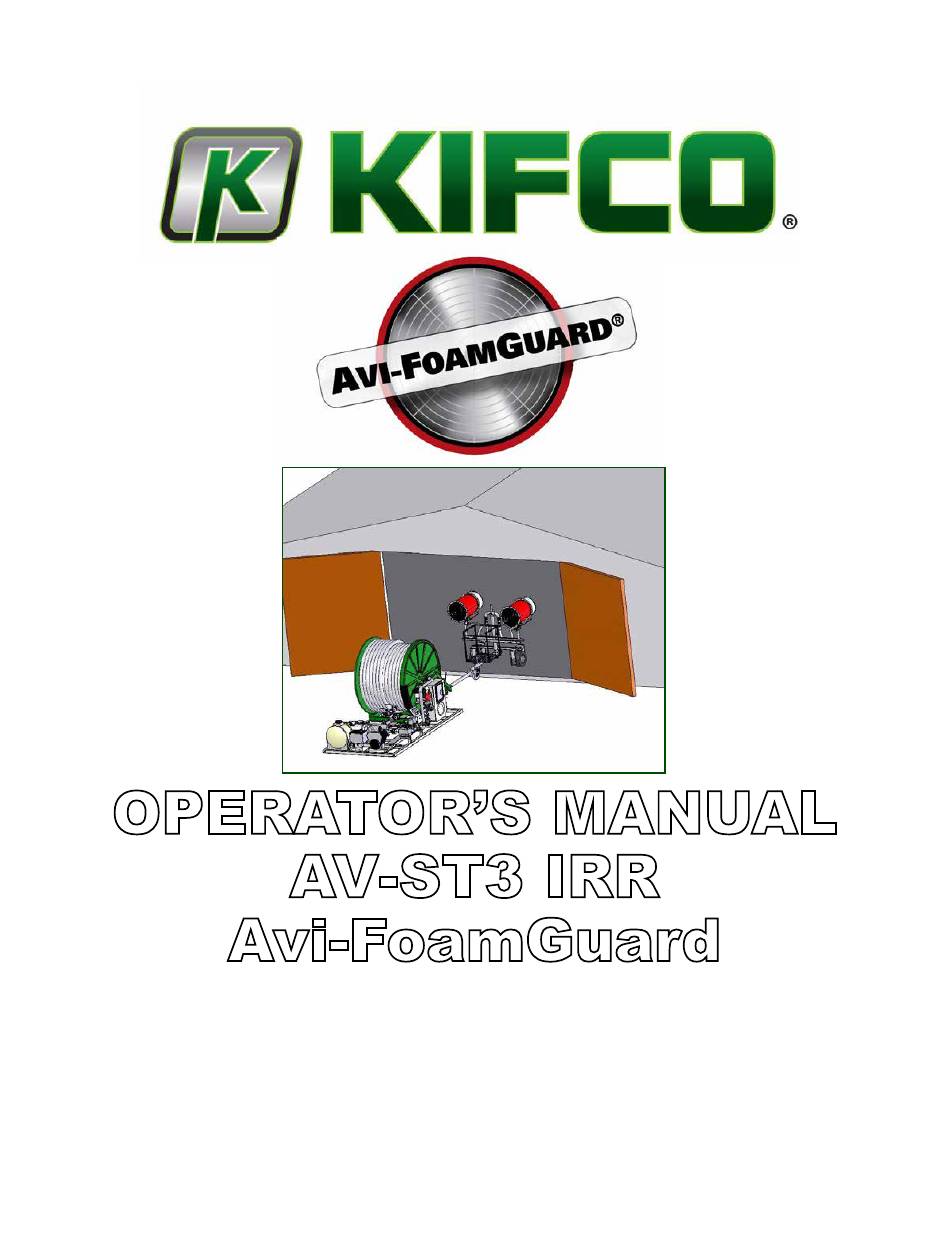

OPERATOR'S MANUAL
AV-ST3 IRR
Avi-FoamGuard
700 South Schrader Avenue
P.O. Box 290
Havana, IL 62644
Phone (309)543-4425
Fax (309)543-4945
www.kifco.com /www.avi-foam.com
P/N 19302390
Revised on 3/1/14, Kifco, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avi-FoamGuard AV-ST3 IRR and is the answer not in the manual?

Questions and answers

Summary of Contents for KIFCO Avi-FoamGuard AV-ST3 IRR

  • Page 1 OPERATOR’S MANUAL AV-ST3 IRR Avi-FoamGuard 700 South Schrader Avenue P.O. Box 290 Havana, IL 62644 Phone (309)543-4425 Fax (309)543-4945 www.kifco.com /www.avi-foam.com P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 2: Introduction

    Avi-FoamGuard properly before operating your machine for the first time. Failure to do so can result in personal injury and/or property damage. If you have any problems or are unclear regarding any of the instructions contained herein, contact Kifco prior to operation.

  • Page 3: Table Of Contents

    Booster Pump Start-Up 14-15 Retraction Engine Start-Up Injection Pumps Application w/ Handheld Nozzle Trolley Retraction Retraction Speed End of Run Procedures 18-19 Winterization & Storage 20-21 Required Maintenance 21-24 Wiring Diagram Warranty 26-27 P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 4: Safety

    The owner is responsible for:  Reading and understanding this manual and video. If any instructions remain unclear contact Kifco for further instructions. ...
  • Page 5 Caution! Never transport your Avi-FoamGuard unless the Anti-Reverse Pawl is in the down position. The Pawl should always be in the down position EXCEPT on trolley pullout! P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 6 & held. (Used in emergency situations). 8. Injection Pump #1 Prime – Press and hold to prime Injection Pump #1. 9. Injection Pump #2 Prime - Press and hold to prime Injection Pump #2. P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 7 Foam Trolley Components 10. Foam Generators 11. Hand Held Foam Nozzle (Optional Piece of Equipment) 12. Safety Chain 13. Foam Trolley Towing Chain 14. Foam Nozzle Valve (Optional Piece of Equipment) 15. Generator Valves P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 8: Handling The Polyethylene Tube

    Keep the tube pressurized to 100 PSI when rewinding! Remember, polyethylene tube is semi-rigid and subject to being crimped. The foregoing precautions will reduce the possibility of kinking or damaging your tube. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 9: Timing

    When these conditions are met, the machine should be in time and ready to wind in (See Fig. 1 below). Fig. 2 illustrates a machine that is not in time. Fig. 1 Fig. 2 P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 10 Step 3 - Replace the Levelwind guard and then replace the fork, being especially careful not to have any over-hang on the chain side of the mounting plate as shown below. Caution! Over-hang on the chain side of the mounting plate when replacing the fork will cause damage to the unit during operation! P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 11: Set-Up & Operation

    Only turn the spool just enough to release the anti-reverse pawl. Over rotating can cause the coils of tube to loosen. The gearbox needs to be in high (H) or low (L) gear for the spool to turn. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 12: Trolley Pull-Out

    (40 Feet Per Mi- nute) until it has reached the desired starting point to begin foaming. Step 6 - Disconnect the foam trolley towing chain and return to holder. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 13: Trolley Set-Up

    Step 2 - Engage the gearbox by pushing in the Clutch Lever. Step 3 - Reset the gearbox by firmly pulling out the stop rod once again. Note: This must be done before the machine will go into gear. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 14: Sanitation System

    Sanitation System - Tube Cleaning: Kifco’s Avi-FoamGuard is equipped with an automatic polyethylene tube cleaning and sanitation option. As the tube passes through the hose guide fork, three nozzles will clean and apply sanitation solution to the polyeth- ylene tube as it is rewound onto the spool of the machine.

  • Page 15: Booster Pump Start-Up

    Step 1 - Turn the fuel supply on to the Booster Pump. Step 2 - Open the choke and turn the key on the booster pump control panel to start the pump. Once started close the choke. Prime Choke Booster Pump Fuel Supply P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 16: Retraction Engine Start-Up

    Step 2 - Open the choke and turn the key to start the retraction engine. Once started close the choke. Let the engine run at an idle speed. Speed Adjustment Lever Choke Fuel Supply P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 17: Injection Pumps

    The Retract Stop switch on the control panel will only stop the Re- traction Engine. If this is needed, press and hold the Retract Stop switch until the retraction engine stops. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 18: Retraction Speed

    This will allow the gear selection lever to engage the different speed range of the gearbox. Caution: Follow these steps precisely! Failure to do so will damage the gearbox! P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 19: End Of Run Procedures

    Step 5 - Once water runs clear from the generators, slowly throttle down the Booster Pump and turn off the key. Turn off the fuel to the Booster Pump. Step 6 - Close the main supply valve. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 20: Winterization & Storage

    Step 3 - Loosen the 6 bolts that con- 6 Bolts Loosened nect the trolley to the supply hose, but do not remove completely. Once loosened, water will begin to expel from the connection. P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 21 Freezing will not damage the Polyethylene hard hose tube used on the Avi-FoamGuard. Even though the tube does not need to be drained you must follow the winterization instructions. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 22: Required Maintenance

    Tightening the chains: Primary Chain: Adjustments are made by tightening/ loosening the adjustment screws connected to the roller (D). Secondary Chain: Loosen the right angle gearbox mounting bolts (item A) and adjust its position. P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 23 Add a fuel stabilizer such as Stabil to both fuel tanks to prevent gunk from forming in the fuel system or on essential carburetor parts. Gearbox: The gearbox on the unit uses SAE90 oil. Change the oil in the gearbox once per year. P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 24 The Retraction & Booster Pump Engines are both covered under original manufacturer’s warranty. Refer to these manufactures should you have engine problems. Lubrication: Lubricate your unit in the designated places as outlined below when performing quarterly maintenance. Use a water resistant grease for lubrication. P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 25 Note: After operating the equipment to perform quarterly maintenance, you must follow the steps for winterization before returning the unit to storage. P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 26: Wiring Diagram

    Wiring Diagram P/N 19302390 Revised on 3/1/14, Kifco, Inc.

  • Page 27: Warranty

    Warranty KIFCO products are warranted to the original user for a period of one year from the date of his purchase in- voice, that the equipment will be free from defects in material and workmanship subject to the following con-...
  • Page 28 PENSES, OR CLAIMS FOR INDEMNIFICATION, BY REASON OF ANY DEFECT IN THE EQUIPMENT OR ITS MANUFACTURE, DE- SIGN OR FUNCTIONING, OR ANY INSTRUCTIONS CONCERNING THE EQUIPMENT. No agent or representative of KIFCO or any of its dealerships has authority to waive, alter or add to the printed provisions of this warranty and limitations of liability.
  • Page 29 Notes P/N 19302390 Revised on 3/1/14, Kifco, Inc.
  • Page 30 Notes P/N 19302390 Revised on 3/1/14, Kifco, Inc.
