Summary of Contents for Four Seasons LifeRoom ONE

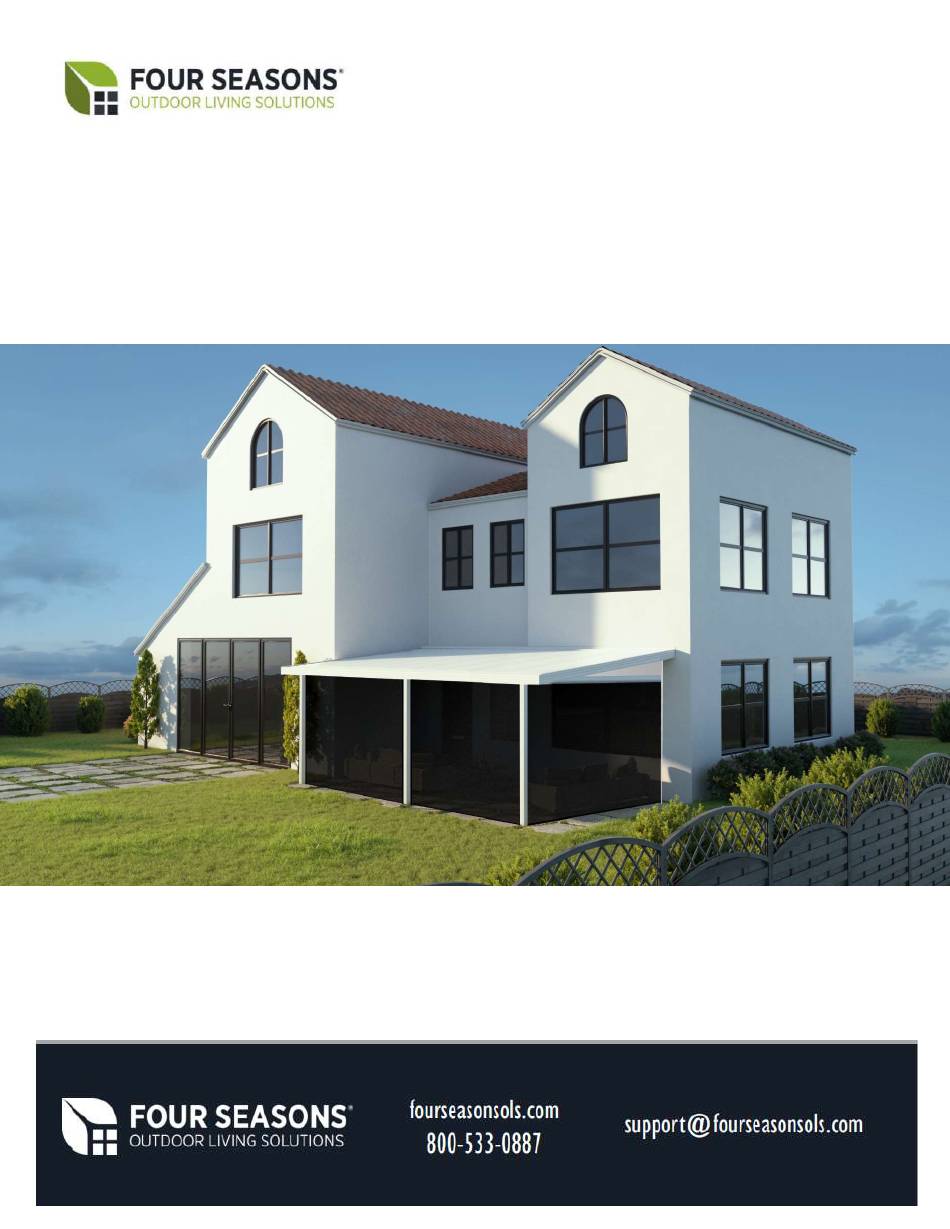

Page 1 LifeRoom ONE Installation Manual www.fourseasonsols.com support@fourseasonsols.com 800-533-0887...
Page 2 TABLE OF CONTENTS LifeRoom ONE Roof & Frame…page 3 LifeRoom ONE Sidewall Framing…page 26 LifeRoom ONE Screen…page 30 www.fourseasonsols.com support@fourseasonsols.com 800-533-0887...
Page 3 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide support@FourSeasonsOLS.Com support@FourSeasonsOLS.Com...
Page 4 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide support@FourSeasonsOLS.Com 3/5/2021...
Page 5 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide STEP #1: Installing Roof Header (#B) Select which attachment method OPTION #1, #2 or #3. (NOTE: if mounting to a masonry wall the anchors are NOT INCLUDED) Select the area on wall or fascia for the Roof Header #B.
Page 6 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Make sure to have 2 screws within 4" of each end of the Roof Header If mounting to House wall OPTION #2 or #3, After predrilling and caulking the Roof Header(#B), Set the Roof Header against the Wall and fasten using the #12x3"...
Page 7 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Make sure both halves of the beam are straight, then fasten through the Top Post Bracket into the second Beam then into the Beam Splice using (2)two #14x1-14/ tek screws Rotate the beam over twice, make sure the beam is straight, then fasten repeating steps C&D fastening...
Page 8 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Find the 8 "Setback Brackets." Measure and place a pencil mark on the prepared 3" Edge Beam, 6” from each side of the Top Post Brackets (I). Set the brackets on the top side of the prepared 3” Edge Beam at the 6”...
Page 9 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Insert this second 3" Edge Beam into the top of the Setback Brackets. Make sure the ends of both 3" beams are lined up. Fasten the Double beam to the Setback Brackets using 4 #14 tek screws each side.
Page 10 10ft = 5" … if roof panels are 12ft = 6” *if you can get more pitch do it* Example: if you bought a 12ft deep x 22ft wide LifeRoom ONE: and you measured 98 inches to the bottom of Roof Header - 98" - 3-1/2” = 94-1/2”...
Page 11 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Once the Edge Beam assembly is LEVEL, take a third post, hold it against the Edge Beam in the center location near the Top Post Bracket(#I), mark a line on the post along the bottom of the beam.
Page 12 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS See dwgs below, measure and Mark the REAR SIDE of Post locations. If you have 10ft roof panels measure/mark 8'-9" or if 12ft roof panels measure/mark 10'-9". Mark post locations out from house wall for the first and last post….then pop a chaulkline connecting the first and last marks.
Page 13 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Cut open a tube of sealant and load into caulking gun. Set ladder at house side, left end of Roof Header. Looking from backyard at the house, have the FEMALE EDGE of ROOF Panel to the LEFT side. Look at both sides of the panel for any dents…if there is a dent or ding you can flip the panel so the dent...
Page 14 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Check Roof panel is SQUARE Line up all POSTS on the front side of the chaulk line popped in step #4-B Keeping back side of post BOTTOMS on the chaulk line...Plumb level the front side of the post, only moving the top…when it is plumb level, REMOVE THE CARDBOARD...
Page 15 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide ANCHOR the POSTS: Set each post in front of the chaulk line…use 4ft level to plumb level the post on front and side of each post. Once post is plumb level both directions drill a 3/8"...
Page 16 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Having the Next Panel Unwrapped… repeat Step 4-E&F Keep ROOF PANEL 4" away from first panel and slide it all the way into the ROOF HEADER Person #1 stands by the first post to hold it steady while person #2 is on ladder chest high with roof panel.
Page 17 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS When there is one roof panel left on ground to put up. STOP. Unfasten and remove the last panel On the HOUSE end of the next ROOF PANEL, on the TOP side, squeeze out a 1/4" bead of sealant on the Aluminum skin ACROSS the 23"...
Page 18 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Set the Gutter Splice(#C) into the Extruded Gutter(#D) up to the 12" Mark Push the Splice down tight into Gutter & the Sealant, Fasten through the Gutter FACE using (4) Four #10 tek screws through the Four Marks …Fastening through the Gutter and into the Splice Fasten (2)Two #10 tek screws through the Back Side of the Gutter 2"...
Page 19 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Take Second piece of Extruded Gutter(#D). Measure inside the LEFT End of Extruded Gutter(#D) 11-1/2" and mark it. Hook Tape on Left End of extr Gutter(#D) and measure to the RIGHT and mark at 2”...
Page 20 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide STEP #7 : Installing Extruded Fascia (#E) NOTE: for ease of installation the Extruded Fascia for each side comes in 2 pieces to be butt together. Take one piece of Extruded Fascia(#E) hold up against roof panel at house end.
Page 21 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Adjust the two Fascias where they butt together for straight joint. Fasten through the top legs of Fascia into roof panels Fasten the TOP LEG of Fascias down into Roof Panels...spacing screws no more than 24"...
Page 22 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS STEP #9: Finish Fastening & Sealing NOTE: Do Not walk of Roof Panel SEAMS ROOF PANELS Fasten TOP side of Roof Panels downward through the Roof Header(#B) Leg into the roof panels using (3)Three #10 tek screws.
Page 23 LifeRoom ONE Installation Guide PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS Fastening & Sealing the GUTTER Fasten through the TOP of Gutter Leg downward into the Roof Panels (2) Screws per roof panel, 4inches away from all roof seams...
Page 24 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Measure the Roof Top from the attachment against the house, outward to inside the Gutter Edge & add 2inches Count how many roof Seam Joints you have then Cut that many Strips of Peel n Seal tape NOTE: you can piece 2 pieces together if needed and overlap them 3 inches.
Page 25 PATIO COVER INSTRUCTION SHEETS PATIO COVER INSTRUCTION SHEETS LifeRoom ONE Installation Guide Step 11: Flashing support@FourSeasonsOLS.Com support@FourSeasonsOLS.Com...
Page 26 LifeRoom ONE Installation Guide LifeRoom ONE SIDE WALL FRAMING STEP 15: Measure against the house wall and cut the 3" Receiving Channel: The Channel must be in line with the front Corner Post of the Patio Cover. Plumb level the Channel up the wall and mark the location on the wall.
Page 27 LifeRoom ONE Installation Guide LifeRoom ONE STEP 17: Measure for the 3x3 Side Beam. Measure from the front 3x3 Beam to the inside of the Receiving Channel against the STEP 19: Measure and cut 3x3 posts for house wall, then subtract 1/2“. Cut the 3x3 house wall: Measure from the floor to Beam to that measurement.
Page 28 LifeRoom ONE Installation Guide LifeRoom ONE STEP 20: Assembling the Trapezoid Filler Panel: a) Measure across the top of the 3x3 Side Beam and cut the 1x1 angle to fit. Line up the angle flush with outside edge of the Side Beam and...
Page 29 LifeRoom ONE Installation Guide LifeRoom ONE STEP 19 (continued): d) Measure the trapezoid opening; transfer and mark measurements onto the 2" Filler Panel. Cut the Filler Panel with a skillsaw fitted with a carbide tip blade. Test fit it and push it into the opening.
Page 30 LifeRoom ONE Installation Guide LifeRoom ONE Screen Installation Guide www.fourseasonsols.com support@fourseasonsols.com 800-533-0887...
Page 31 LifeRoom ONE Installation Guide LifeRoom ONE What’s Included What You Need www.fourseasonsols.com support@fourseasonsols.com 800-533-0887...
Page 32 LifeRoom ONE Installation Guide LifeRoom ONE STEP 1: Remove the screws as shown below from both sides of the hood assembly. STEP 2: Remove the Cover and set aside www.fourseasonsols.com support@fourseasonsols.com 800-533-0887...
Page 33 LifeRoom ONE Installation Guide LifeRoom ONE STEP 3: Measure up the post as shown, from the top of the floor post bracket— not the floor—to the bottom of the 3x3 beam. STEP 4: Subtract 3 ¾” from the measurement you just made (H), and cut the Side Track.
Page 34 LifeRoom ONE Installation Guide LifeRoom ONE STEP 5: Slide the Receiving Channels over the leg of the End Caps as shown. www.fourseasonsols.com support@fourseasonsols.com 800-533-0887...
Page 35 LifeRoom ONE Installation Guide LifeRoom ONE STEP 6: Using two people, lift the Hood Assembly and Receiving Channels between the Posts of your LifeRoom ONE, and push it up tight against the beam. STEP 7: Make sure the Hood Assembly is facing upward and tight against the Beam.
Page 36 LifeRoom ONE Installation Guide LifeRoom ONE STEP 8: Push the Hood Assembly up tight against the 3” Edge Beam. Then, secure the Receiving Channels to each Post using self-drilling screws. Keep the bottom screw 5” up from the ground and then equally space the remaining screws .
Page 37 LifeRoom ONE Installation Guide LifeRoom ONE STEP 9: Insert the Side Rails into the Receiving Channels as shown. The Plastic Entry Guide should be on the top; do not fasten the Rails yet. STEP 10: Pull the Screen down into the...
Page 38 LifeRoom ONE Installation Guide LifeRoom ONE STEP 11: Pull the Screen down to the floor. Adjust the Side Rail Tracks so they are parallel with each other. Minor Screen wrinkles are normal; sunlight will typically help smooth them out. Bottom...
Page 39 LifeRoom ONE Installation Guide LifeRoom ONE STEP 13: With the Screens pulled down, attach a fastener through the End Cap on both sides as shown below. STEP 14: For 10’5” screens, use 2 additional screws to fasten the hood upward to the 3” Edge Beam, spaced into thirds. For all other Screen units, use 1 screw in the center of the hood to the Edge Beam.
