Summary of Contents for Global RP-T2/S

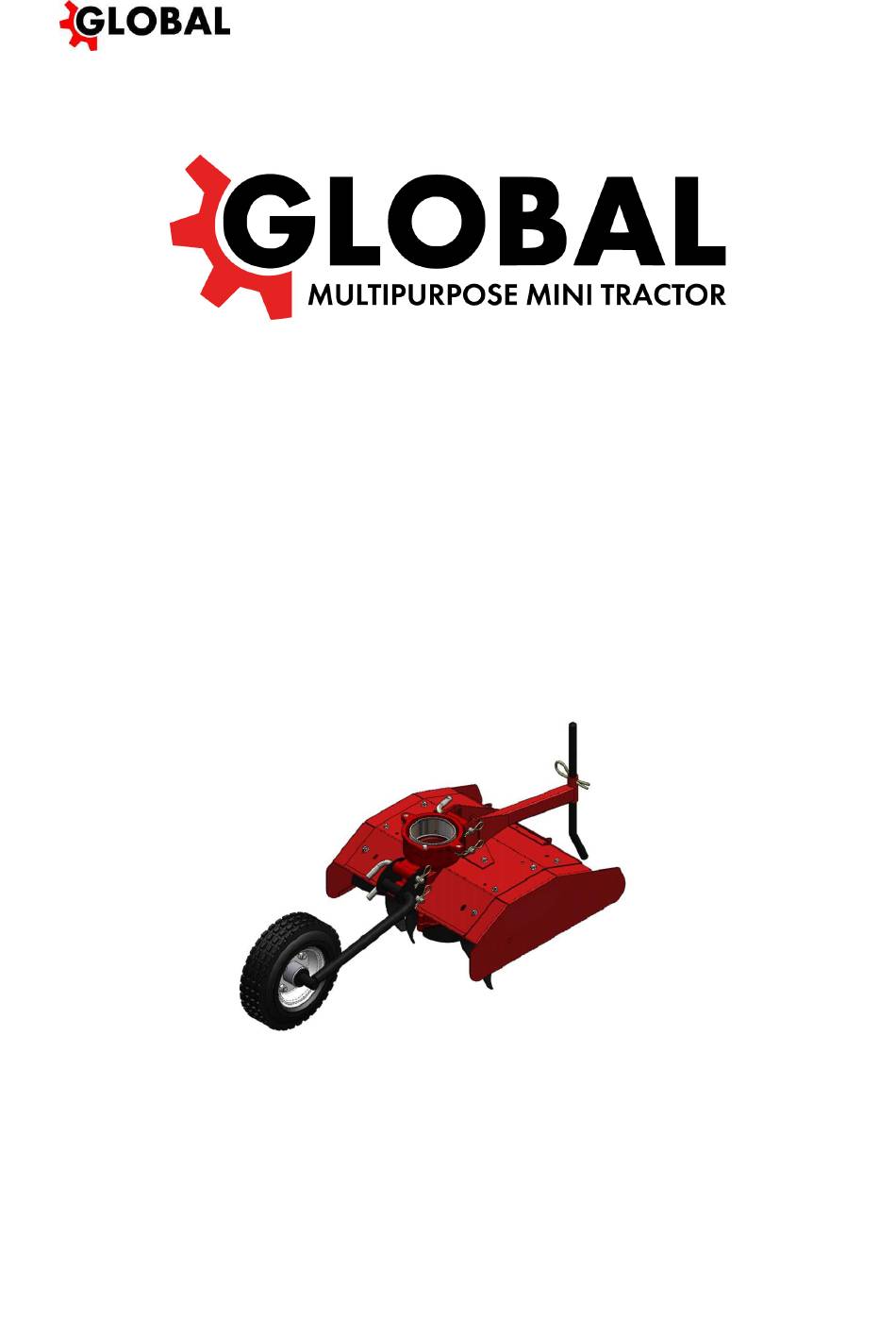

- Page 1 Rotary Hoe ROTARY HOE RP-T2/S Instructions for use...
-
Page 2: Table Of Contents
KNIGHTS a.s. Rotary hoe RP-T2/S makes laborious and time-consuming weeding and soil loosening easier. Its main task is fine surface loosening and removal of small weeds between rows of grown plants. It is easier for nutrients, water and sunbeams to get to the plants and your crop will perfectly prosper. -
Page 3: Operational Safety
Check the correct operation of the safety switch on the left hand grip of the drive unit before starting your work! RP-T2/S rotary hoe may only be transported to the workplace where it is used only on the transport kit. Never transport the machine on its own wheels and on public roads. -
Page 4: Noise And Vibrations Levels
It does not turn soil over, it only mixes it. Based on its type of knives used, it is particularly suitable for lighter soils. The RP-T2/S rotary hoe’s power drive is PJGCV160 or PJGCV190. -
Page 5: Operating Instructions
Rotary Hoe The skive carrier with the skive (5) is mounted to the rear side of the gearbox together with the covers by means of two pins, which are secured with cotters. The skive is used as a spur, which sets the hoeing depth and reduces the machine's forward speed. 4 Operating Instructions 4.1 Machine Assembly Request unpacking of the machine and training from your dealer as a part of the pre-sale service! -
Page 6: Commissioning
Rotary Hoe 4.2 Commissioning Always use the starting stand during starting! First of all, thoroughly read the engine operating instructions! This way, you will avoid its potential damage. Before every use of the rotary hoe, check its safety switch on the left handle of the handlebars. 4.2.1 Engine Starting Make sure that all persons, animals, children are at a safe distance from the machine! Otherwise, do not continue with the start-up process! -
Page 7: Machine Lubrication
Rotary Hoe 5.1 Machine Lubrication When working with lubricants, observe the basic hygiene regulations and observe the environmental protection regulations and laws. If you are not sufficiently manually skilled, have the operations done by an authorized service centre. The gearbox worm gears operate in their oil bath. In the case of new machines, replace oil after the first 10 hours of operation and then after 100 hours or after the season. -
Page 8: How To Order Spare Parts
Only with this information it is possible to search correctly for the designation of the respective spare part. Field Description Type Machine type designation. (RP-T2/S) N° Unique serial identification number. 1005000001.0111.00001(product.period.number) CN°... -
Page 9: Attached Illustrations
Rotary Hoe 7 Attached illustrations 1) Top cover (for working widths of 28 and 34 cm) 2) Gearbox housing with mounted the hoeing device - 28 cm width 3) Assembled top cover (for working widths of 12 and 18 cm) with its left and right sides –... - Page 10 Rotary Hoe Fig. 2 : Description of the Main Parts 1) Gearbox T-2/S 2) Hoeing device 3) Covers 4) Steering wheel 5) Skive carrier with a skive 6) Pin 7) Cotter 1) Steering wheel arm 1) Skive carrier 2) Steering wheel 2) Skive 3) Washer 21 3) Cotter...
- Page 11 Rotary Hoe 1) Top cover for the 1) Top cover for the working widths of 12 and working widths of 18 cm 28 and 34 cm 2) Cover holder 2) Cover holder 3) Right side 3) Right side 4) Left side 4) Left side 5) Washer 5.2 6) Self-locking nut...
- Page 12 Rotary Hoe 1) Regular star 1) Regular star 2) Spacer 2) Spacer 3) Narrow star 3) Regular star 4) Axial pin – long 4) Axial pin – long 5) Washer 5) Washer 6) Nut M12x1,5 6) Nut M12x1,5 There is no distinction There is no between the right and left distinction between...
- Page 13 Rotary Hoe No.: (1) (2) Fig. 15 : Safety labels – combined sticker Position on the machine Fig. 16 : Oil draining and filling hole Fig.17 : Sliding the cover onto the gearbox housing...
