Summary of Contents for Gen2wave SELD A10

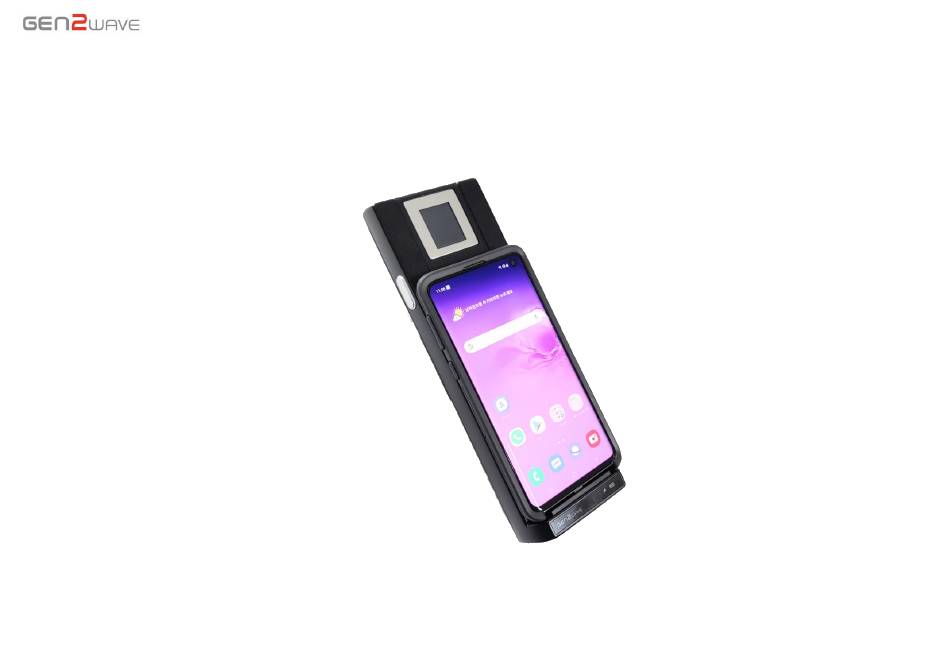

- Page 1 V1.2 SELD A10 User Guide Gen2Wave Co.,Ltd...
-
Page 2: Device Features
Device Features Fingerprint reader E-Passport/ID reader antenna Barcode Reader Camera / Flash Temperature measurement sensor Iris reader Power button Battery cover Left function button Right function button Lock button Universe mount HID RFID antenna USB-C Connector (male) Power / Charging status LED MSR reader OCR reader IC card reader... - Page 3 Application installation / installation on A10 of smartphone Application Installation ① Download the application below from the link provided separately. SLEDA10TEST_x.x.x.apk : This is the main application for testing each function of A10. GemPCSC_Service_V1.5.apk : This is a service application for IC card testing. ...
-
Page 4: Power Interface
Power interface(1) Power ON : Press the A10 power button for about 0.5 seconds. The A10 A10 power status LED lights up blue. Power OFF : Press the A10 power button for about 3 seconds. A10 A10 power status LED turns off. Smartphone charging with A10 ... - Page 5 Power interface(2) Power on ① After mounting the A10 on the smartphone, press the power button for 0.5 seconds, the A10 power LED turns on and the A10 power turns on. * If the A10 demo app is installed on your smartphone, the demo app will run automatically when the power of A10 is turned on.
- Page 6 Charging interface A10 charging ① The A10 battery can be charged by plugging in power to the A10 USB-C port. ② Regardless of the A10 power status, it can always be charged. ③ When charging, the charging status LED of the A10 lights up, red when charging, and green when charging is complete. Smartphone charging ...
-
Page 7: How To Use Functions
How to use functions Currently, only sample tests are available for each function. If a problem occurs while using the program, close the program and run it again. Caution. When running or reading a program, you should always allow USB permission and access permission pop-ups at the bottom of the screen. - Page 8 Thermometer Thermometer ① BODY Temperature Mode : Need to check it to take your body temperature. ② Celsius Unit : When checked, the temperature is displayed in Celsius, when unchecked, the temperature is displayed in Fahrenheit. ③ Select “THERMAL READER”. Can measure the temperature of the object by pressing the "READ ...
-
Page 9: Barcode Scanner
Barcode Scanner Barcode Scanner ① Select “SCANNER SCANNER”. Can read barcodes by pressing the right or left function button or the scan button on the screen. A laser aimer should be on the center of barcodes to get a successful ... -
Page 10: Magnetic Stripe Reader
Magnetic Stripe Reader Magnetic Stripe Reader ① Select “Magnetic Stripe Reader”. MSR data can be read along the rail from top to bottom with the magnetic line visible as shown in the picture below. - Page 11 HID RFID HID RFID ① Select “HID RFID”. If see the phrase “Waiting for card” on the screen as shown in the picture, place the card on the antenna of the device and read.
- Page 12 Smart Card / SAM Smart Card / SAM ① Select “SMART CARD / SAM”. To read an smart card, insert the smart card into the smart card slot at the bottom of the A10 and press the "READ SMART CARD" button on the screen to view the ATR data.
- Page 13 Passport / ID card Reader Passport / ID card reader ① Select “PASSPORT READER”. Wait a few seconds for the program to run 1) OCR data can be read along the rail from top to bottom with the MRZ line visible as shown in the picture below.
- Page 14 Fingerprint reader (Suprema) Fingerprint reader ① Select “FINGERPRINT READER”. After entering the User Name in Enroll, press the “START BUTTON” to register the fingerprint. Can search for fingerprint by selecting “START BUTTON”. ...
- Page 15 Fingerprint reader (IB) Fingerprint reader ① Select “FINGER READER”. Select "Single flat finger" in the program's Capture item and click the "Start" button to read Fingerprints. When reading a fingerprint, you need to touch your finger on the ...
- Page 16 Camera Camera ① Select “CAMERA”. When press the shoot button, the image shown in the preview is saved. Caution. The camera app is a demo version. It will be modified so that all functions can be used in the future.
- Page 17 Informaion for FCC manual Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device.
