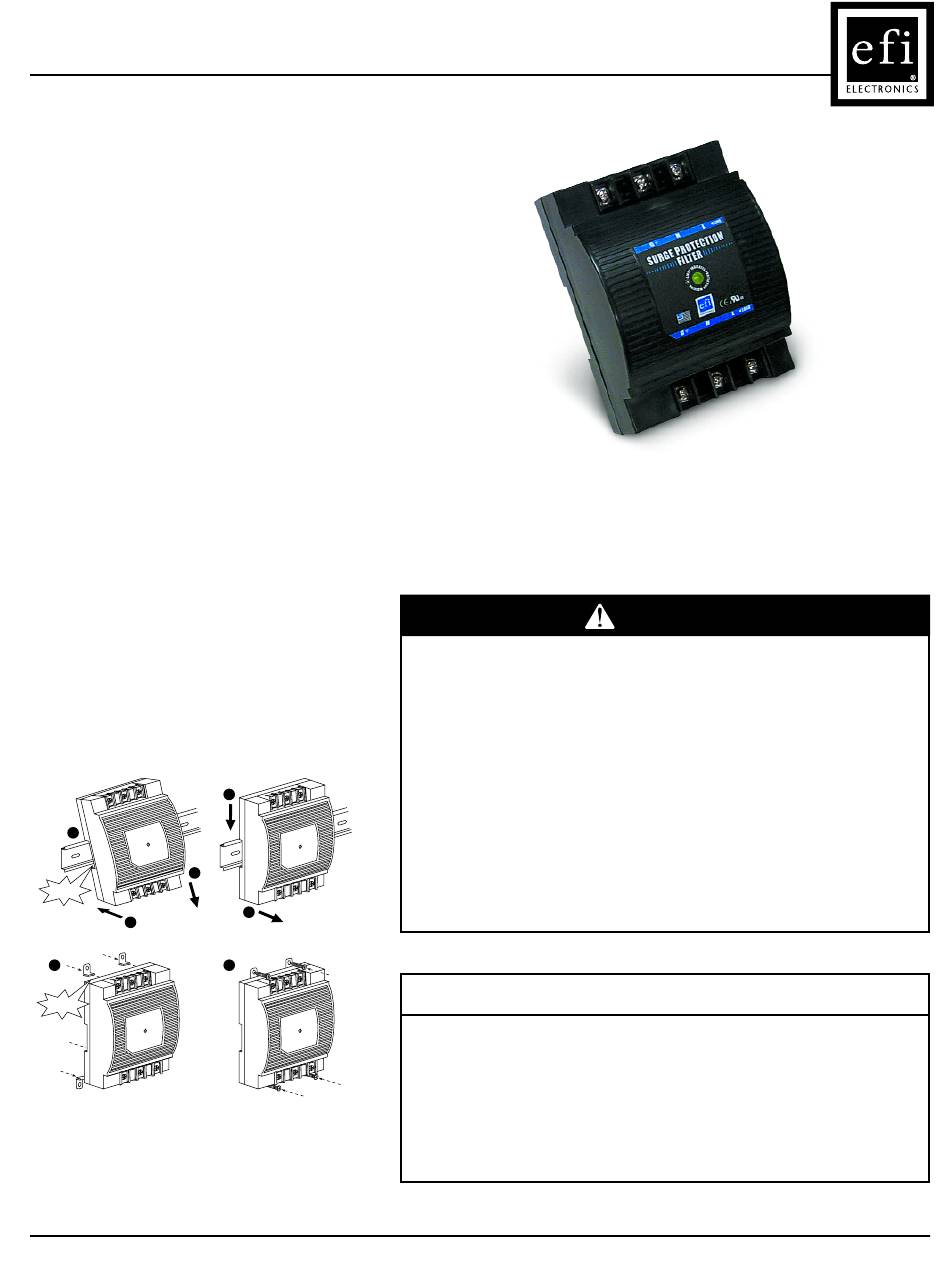

EFI Titan 75LC Instruction Bulletin

Instruction Bulletin
Titan 75LC
Transient Voltage Surge
Suppressor (TVSS)

INTRODUCTION

INSTALLATION

1
2
CLICK
3
1
CLICK
NOTE: (4) Mounting Feet are included for Flange Mounting
applications.
Figure 1: DIN Rail Mounting and Removing,
Flange Mounting
© 2001 EFI Electronics Corporation All Rights Reserved
The 75LC Surge Protective Device (SPD) offers surge suppression and
noise filtration for any micro-processor based product, PLC's, Motion
Control, OEM or any critical industrial load. The SPD can be installed on
the incoming power source (20 amps or less).
1
2
2
HAZARD OF ELECTRIC SHOCK, BURN OR EXPLOSION.
• This equipment must be installed and serviced only by qualified
electrical personnel in accordance with National and Local Electrical
Codes.
• Turn off all power supplying this equipment before working on or
inside equipment.
• Always use a properly rated voltage sensing device to confirm power
is off.
• Replace all devices, doors, and covers before turning on power to
this equipment.
• Do not apply petroleum-based products to non-metallic parts.
Failure to follow these instructions will result in death or serious
injury.
HAZARD OF EQUIPMENT DAMAGE.
• Megger ® or hi-potential tests will damage this surge protective
device. Turn off all power supplying the equipment and isolate the
surge protective device before testing.
• Not for use on ungrounded systems.
Failure to follow these precautions can result in equipment
damage.
8224-0005C
DANGER
CAUTION
11/01
