User's & Technical Manual – P/I LEVEL TRANSMITTER PIT7000

P/I LEVEL TRANSMITTER

PIT70000

INDUSTRIAL ELECTRONICS

GELEC Industrial Electronics

PAGE 1

Table of Contents

Need help?

Do you have a question about the PIT70000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gelec PIT70000

Page 1 User’s & Technical Manual – P/I LEVEL TRANSMITTER PIT7000 P/I LEVEL TRANSMITTER PIT70000 INDUSTRIAL ELECTRONICS GELEC Industrial Electronics PAGE 1...
Page 2: Table Of Contents
GENERAL DESCRIPTION ........................... 6 FEATURES ................................8 PIT7000 OVERVIEW & CONFIGURATION ....................11 PNEUMATIC SECTION ............................13 INSTALLATION ..............................16 10. ELECTRICAL SECTION .............................19 11. CALIBRATION PROCESS - DEFAULT SETTINGS ..................24 12. DIMENSIONS ..............................27 13. TECHNICAL SPECIFICATIONS ........................28 GELEC Industrial Electronics PAGE 2...
Page 3: Precautions
Do not install in a dusty or humid environment. Do not place it near heater, or air conditioner. Keep it away from air, steam, extremely high/low temperature, or humidity. Always follow the instructions given by the manufacturer and use the PIT7000 in accordance to its specifications. GELEC Industrial Electronics PAGE 3...
Page 4: Manufacturer Warranty, General Terms And Conditions
Any defect caused by modification, alteration, abuse, misuse, or incorrect installation.  Any defect of the product caused by improper repair by third party other than GELEC  and GELEC's authorized distributors. Any incompatibility of the product with subsequent technical innovations or ...
Page 5: Disposal Of Old Electrical & Electronic Equipment
“Gelec Co. LP”. Although every effort has been made to ensure that this manual provides up to date information, please note that the contents of this manual and unit specifications are subject to change without notice.
Page 6: General Description

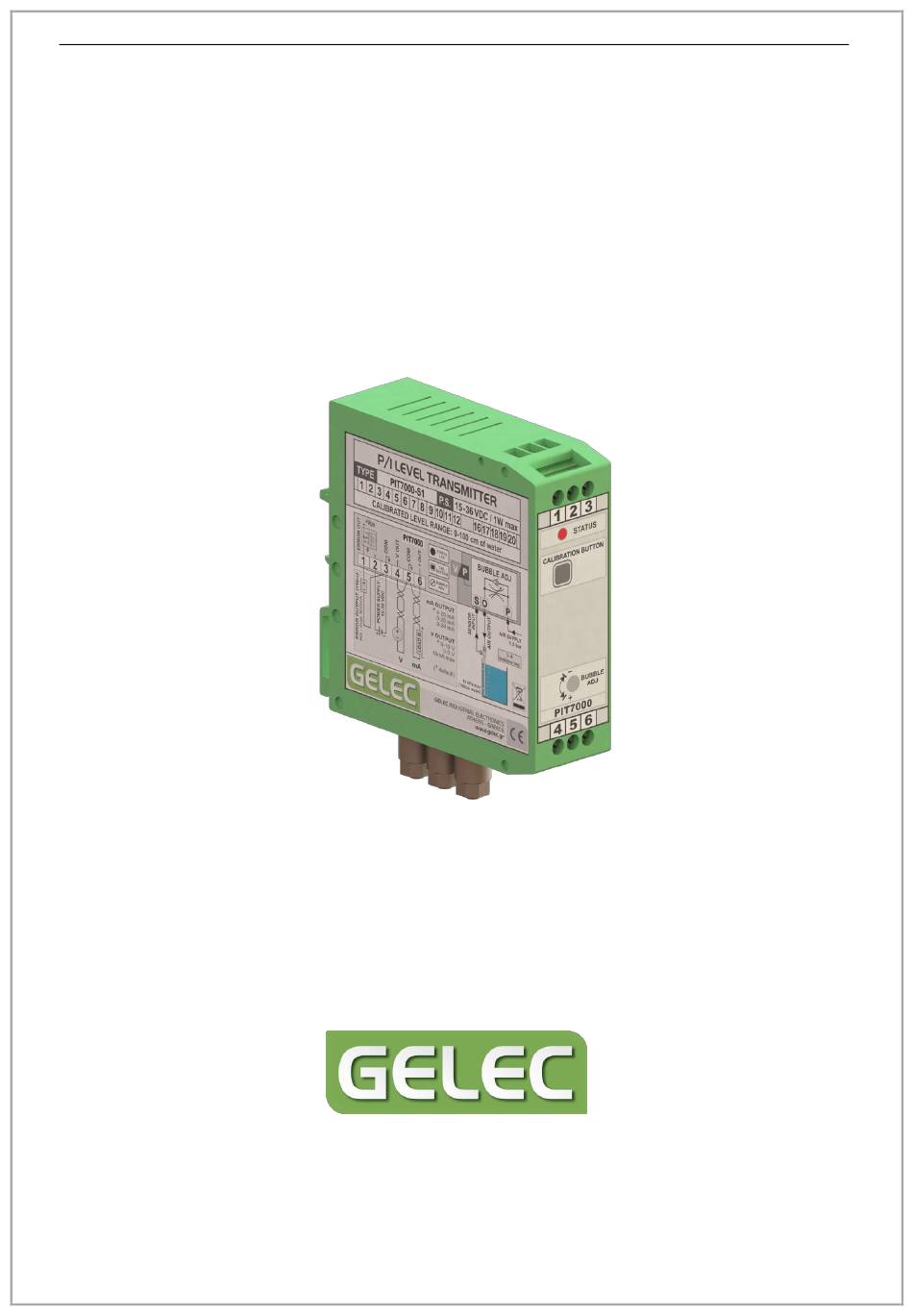

LED. It is designed to be installed inside an electrical control panel, snapped onto commercially available DIN mounting rails (NS32/NS35). The thermoplastic housing (Polyamide PA 6.6) is suitable and approved for electronic devices and industrial environment. GELEC Industrial Electronics PAGE 6...
Page 7 Only the bubble tube material and the gas are exposed to the process  Measurement unaffected by foam, pH, conductivity and turbulence  Suitable for use with corrosive fluids  System does not include any moving parts  GELEC Industrial Electronics PAGE 7...
Page 8: Features
Each output range change, forces the device to properly reconfigure its output linearization. Notice that the output signal cannot get values outside the selected range, even if the application fluid exceeds the calibrated operating region. GELEC Industrial Electronics PAGE 8...
Page 9 PLC. The output signal value (min or max) during an Error state can be selected from the internal configuration dip-switch (SW4), depending on the application needs. Refer to the relevant section for more information. GELEC Industrial Electronics PAGE 9...
Page 10 Hardware failure or excessive applied pressure are the possible causes. Before replacing the damaged device with a new one, ensure that any possible problem that causes overpressure to the sensor (wrong connections/clogged pipes) is solved. GELEC Industrial Electronics PAGE 10...
Page 11: Pit7000 Overview & Configuration
However, if it is necessary adjust the regulator with a flat screwdriver (clockwise for decreasing, counterclockwise for increasing) and set the bubbles to the recommended rate. The front label may block the regulator access, for unintended adjustments protection. GELEC Industrial Electronics PAGE 11...
Page 12 This is an actual advantage only for 4-20mA / 0-20mA ranges. For the rest of the ranges the output value options are within the measuring range and cannot be utilized. Though, you can choose between minimum and maximum output, according to your application needs. GELEC Industrial Electronics PAGE 12...
Page 13: Pneumatic Section
The (S) adaptor is the input of the internal pressure sensor which measures the hydrostatic pressure. Check the pressure limits of your PIT7000 version before any connection. Excessive applied pressure can cause permanent damage, or degradation to the sensor. GELEC Industrial Electronics PAGE 13...
Page 14 Do not install the tube deeper than your PIT7000 version allows. The excessive applied pressure can cause permanent damage or degradation to the device’s pressure sensor. GELEC Industrial Electronics PAGE 14...
Page 15 Maintain the pneumatic circuit in good condition. Polluted air, dust, oil etc. inside the circuit may gradually affect the measurement, clog up the pipes, or even damage the device’s pressure sensor. Any air leakage along the (S) / (O) piping will affect the measurement. GELEC Industrial Electronics PAGE 15...
Page 16: Installation
Additionally, you can install the device at a point higher than your tank. If somehow fluid suction occurs, disconnect the (S) tube from PIT7000, clean it and confirm that the device works properly before using it again. GELEC Industrial Electronics PAGE 16...
Page 17 The shape of the tank must allow a linear relationship between the fluid volume and the measured level. Otherwise a proper software must be developed, which will automatically calculate the filled volume of the tank, depending on the output of the transmitter. Pneumatic Layout example GELEC Industrial Electronics PAGE 17...
Page 18 When you reach maximum output (e.g. 20mA in 4-20mA range), stop the filling.  ✓ This level is the maximum level that this specific fluid should reach during any process stage. Higher level than that, will expose the PIT7000 sensor beyond its operating pressure range. GELEC Industrial Electronics PAGE 18...
Page 19: Electrical Section
If necessary, copper ferrules can be used as a protection against splicing when stranded conductors are wired. In general terms, ensure that you are having reliable mechanical connection and electrical contact. GELEC Industrial Electronics PAGE 19...
Page 20 390Ω resistor to the mA OUTPUT (terminals 5-6). Check the relevant connection diagram. For having the signal unaffected from any interference, it is recommended to use a shielded cable with twisted pair, properly grounded at the side of the signal receiving device. GELEC Industrial Electronics PAGE 20...
Page 21 R (Ω) max R (Ω) for 20mA max output for 24mA max output 1000 1050 1100 1150 1200 1250 1300 1000 1350 1040 1400 1080 1450 1120 1500 1160 1550 1200 1600 1240 GELEC Industrial Electronics PAGE 21...
Page 22 User’s & Technical Manual – P/I LEVEL TRANSMITTER PIT7000 PIT7000 Connection Diagram (only mA output used) PIT7000 Connection Diagram (only V output used) GELEC Industrial Electronics PAGE 22...
Page 23 User’s & Technical Manual – P/I LEVEL TRANSMITTER PIT7000 PIT7000 Connection Diagram (V & mA outputs used) GELEC Industrial Electronics PAGE 23...
Page 24: Calibration Process - Default Settings
PIT7000-S1, or at a point with 50kPa (500cm water) for PIT7000-S5. Any modification of the calibration must be processed by an engineer familiar with the device operation, the associated equipment and the application in general. GELEC Industrial Electronics PAGE 24...
Page 25 (for example 4mA, if the selected range is 4-20mA). The two levels can be separately calibrated. You don’t have to calibrate both levels,  each time a change at one of them is needed. The device automatically reconfigures its output linearization. GELEC Industrial Electronics PAGE 25...
Page 26 High-Level Calibration mode, bypasses this mode and PIT7000 returns in normal operation (STATUS LED constant GREEN). The present data are not saved and the device maintains the value it had before entering High-Level Calibration mode. GELEC Industrial Electronics PAGE 26...
Page 27: Dimensions
While still pressing, turn on power and wait until the LED starts flashing GREEN/RED.  Flashing GREEN/RED means that settings are reset. Release the button. ✓ Settings are reset to default. PIT7000 returns in Normal Operation (STATUS LED constant GREEN). 12. DIMENSIONS GELEC Industrial Electronics PAGE 27...
Page 28: Technical Specifications
Pneumatic connection characteristics Pneumatic fittings 3 straight male adaptors for 6/4 mm tubes 6/4 mm (D/d) Plastic connection tubes compatibility PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP ELECTRICAL DATA Supply voltage 15-36 VDC Power consumption 1W max GELEC Industrial Electronics PAGE 28...
Page 29 IEC flexible stranded: 0,2 - 2,5 mm AWG: 24 - 12 Conductor stripping length 8 mm / NOT soldered Tightening torque 0,5 – 0,6 Nm STANDARDS In conformance with the following standards: Specifications are subject to change without prior notice. GELEC Industrial Electronics PAGE 29...
Page 30 User’s & Technical Manual – P/I LEVEL TRANSMITTER PIT7000 INDUSTRIAL ELECTRONICS 4 Kikladon Str. Maroussi, Athens – Greece, GR-15125 Telephone: +30 210 6144074 - Fax: +30 210 6144074 - info@gelec.gr GELEC Industrial Electronics PAGE 30...
