Summary of Contents for i3 THERMAL EXPERT TE-SQ1

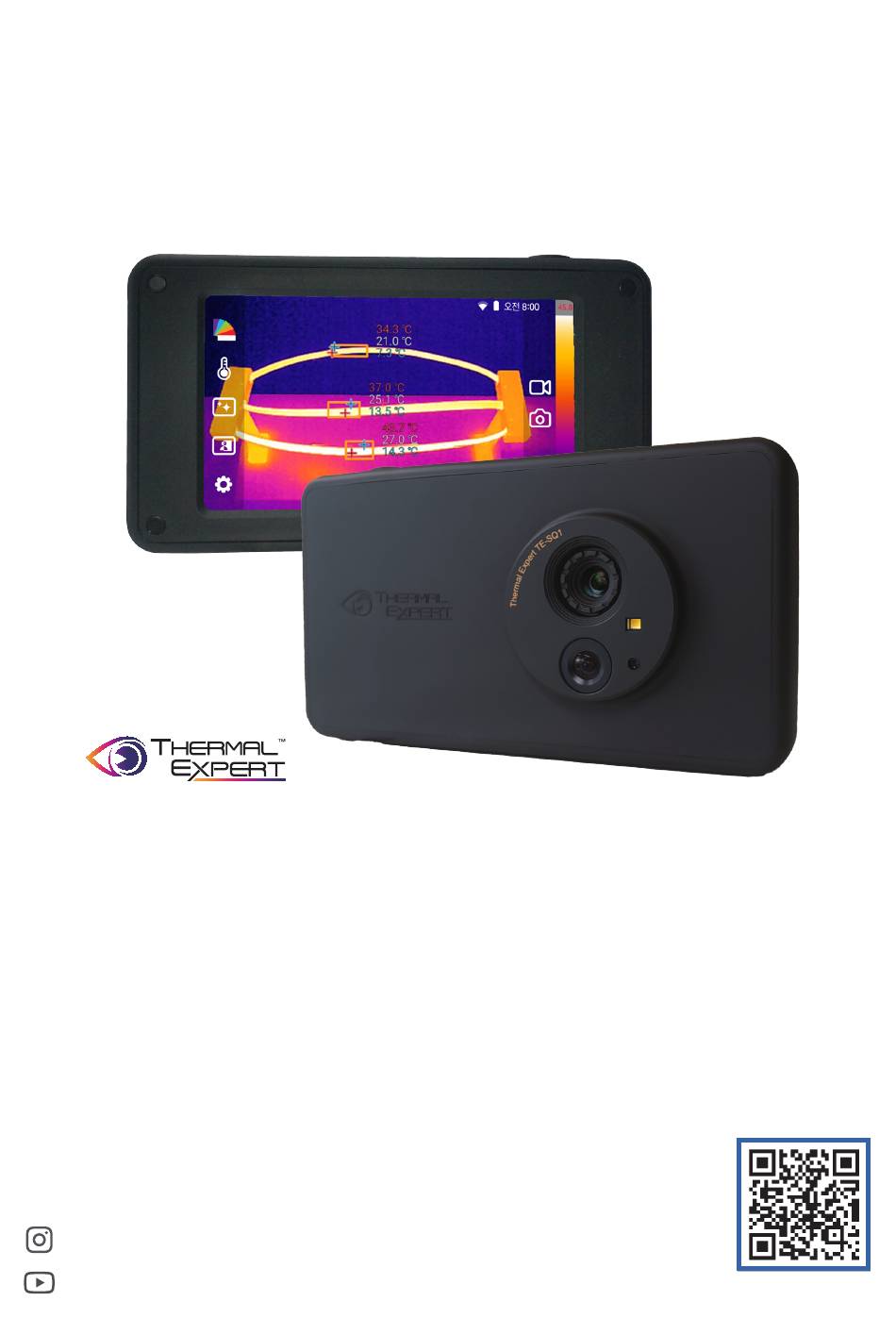

- Page 1 User Guide TE-SQ1 Portable Thermal Camera i3system.com www.i3-thermalexpert.com i3system i3system, Inc. Guide Video...

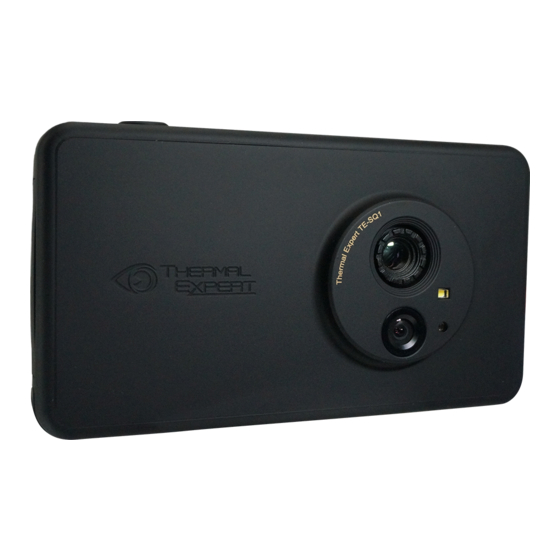

- Page 2 Capture Button Power Button Touch Screen Thermal Camera Visible Camera LED Flashlight Laser Pointer USB-C Data transfer/ Charging Port micro-HDMI Port micro-SD Slot Hand Strap USB-C cable micro-HDMI to HDMI Charger...
- Page 3 Main Screen 8:00 AM Color Map Temperature Setting Record Videos Image Processing Capture Images Display Setting Basic Setting The Basics Turn on/off: Hold the power button for 2-3 seconds Charge: Connect USB-C cable to charger Display Connection: Connect micro-HDMI adapter with standard HDMI External Memory: Insert micro-SD memory to the micro-SD card slot Temperature Setting Point: Check the temperature of designated points...
- Page 4 Image Processing Flip: Image upside down Mirror: Image left and right reverse Center target: It shows temerature of center cross at the bottom left Level span: Setting temperature range manually Image enhance: Image processing(denoise, edge, gain) applied. Gallery: Check saved images and videos Display Setting 50:50 view: Partition a scene into half visible, half thermal Twin View: Two same scenes in both visible and thermal...
- Page 5 2. Wi-Fi: Wi-Fi connection enables data sharing; photo, video System Reset 1. Factory reset through Android settings Settings - System - Reset options - Erase all data(factory reset) 2. After reset, You should update TE-SQ1 camera app at TE homepage. TE homepage: http://www.i3-thermalexpert.com...
- Page 6 C a u t i o n 1. Handling - Do not drop or apply shock or stress to the product. - As the lens on the infrared camera is fagile, please avoid putting too much pressure on it. - Since the infrared camera lens has been coated front and back, please handle it carefully to avoid any damages to the lens.
- Page 7 4. Damage caused by accident, abuse, misuse, fire, liquid contact, earthquake or external cause. 5. Consumable parts, such as charger, cable, or micro-HDMI converter Service Center - i3system, Inc. 1. Address: 435 Expo-ro, Yuseong-gu, Daejeon, 34051 KOR 2. Web page: www.i3-thermalexpert.com 3. E-Mail: thermal_expert@i3system.com...
- Page 8 TE-SQ1 TE-HQ1 TE-Q1 TE-EV2, EQ2 TE-EX2 TE-Q2 i3system.com www.i3-thermalexpert.com i3system i3system, Inc.
