HECKLER H730 Manual

Av cart for logitech rally bar
Hide thumbs

Advertisement

Quick Links

Download this manual

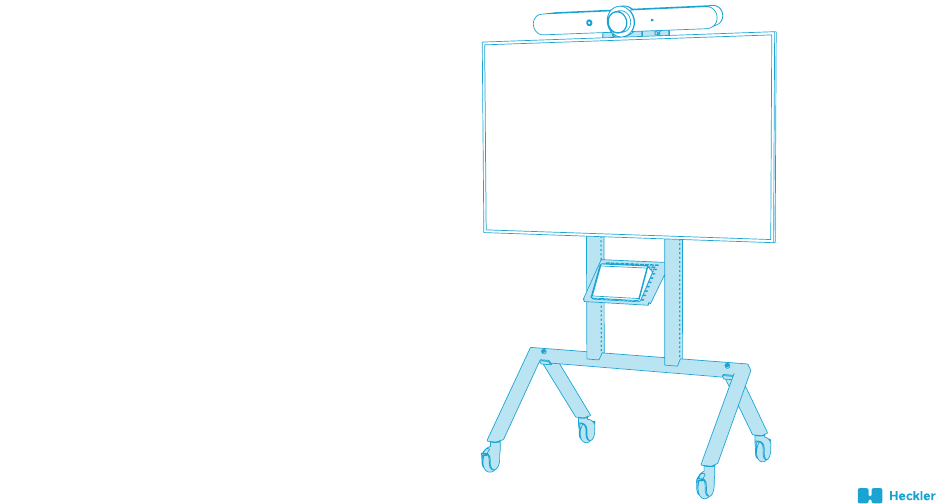

H730 - Heckler AV Cart for
Logitech Rally Bar
Supports displays with a VESA 400 horizontal
mounting pattern, and up to 300 pounds of total
display weight. Recommended for use with
50-inch to 75-inch displays.
Designed & made in Arizona
Patented

Advertisement

loading
Need help?

Need help?

Do you have a question about the H730 and is the answer not in the manual?

Questions and answers

Summary of Contents for HECKLER H730

  • Page 1 H730 - Heckler AV Cart for Logitech Rally Bar Supports displays with a VESA 400 horizontal mounting pattern, and up to 300 pounds of total display weight. Recommended for use with 50-inch to 75-inch displays. Designed & made in Arizona...
  • Page 2 Do not exceed 300 pounds of total display weight. Whenever rolling the cart with a large display installed, two people should guide the cart to prevent wall and doorframe collisions, and tripping on sidewalk expansion joints. If you have any questions, please contact Heckler. service@hecklerdesign.com 844-432-5930...

  • Page 3: Quick Start

    QUICK START 1. In the box 2. Assemble the cart base 3. Install the display 4. Install Rally Bar/Rally Bar Mini 5. Install Tap 6. Organize cables...
  • Page 4 Heckler AV Cart Base In the box Front Base Rear Leg Display Rail Assemble the cart base Caster Socket Head Screw, 1/2"-13, 2.75" Long Assembly Key, Hex, 3/8” Install the display Set Screw, M8, 70mm Long Wingnut, M8 Set Screw, M6, 70mm Long...
  • Page 5 H702 Device Panel In the box Device Panel for Heckler AV Cart Camera Adapter Cart-mounting screws Assemble the cart base Cart-mounting thumb screws Device-mounting thumb screws Device-mounting thumb nuts Install the display Camera-mounting screw Camera-mounting key Cart-mounting assembly key Velcro for strapping devices. Two feet.
  • Page 6 H709 Control Shelf In the box Control Shelf for Heckler AV Cart Cart-mounting wingnuts Cart-mounting screws Assemble the cart base Cart-mounting assembly key Velcro for strapping devices. 12 inches Install the display Install Rally Bar/Rally Bar Mini Install above the display...
  • Page 7 H711 Cart Mount for Logitech Rally Bar In the box Cart Mount for Logitech Rally Bar Bracket-mounting thumb screws Bracket-mounting thumb nuts Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 8 STEP 1 Remove the wheels from all four casters. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 9 STEP 2 Install all casters. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 10 STEP 3 Reinstall caster wheels. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 11 STEP 4 Engage all caster brakes. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 12 STEP 5 Fasten Rear Legs to Front Base. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 13 STEP 6 Fasten Display Rails to Front Base. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 14 STEP 7 Determine whether your display has M8 or M6 mounting holes. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 15 STEP 8 Prepare the display-mounting hardware. Insert the M6 or M8 set screws through the rubber spacers. In the box Position the set screw relative to the spacer as shown. Assemble the cart base Important Notes: Install the display The set screws are a tight fit. To push the set screw into the spacer, place cardboard on a solid surface then slowly and carefully...
  • Page 16 STEP 9 Fasten the mounting hardware to the display. In the box Important notes: Assemble the cart base Fasten the set screw into the display at the depth recommended by the display manufacturer. Do Install the display not over-tighten these mounting screws.
  • Page 17 In the box spacers. If so, use the display manufacturer's mounting spacers rather than the spacers included with Heckler AV Cart Prime. Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini...
  • Page 18 STEP 10 Ensure all caster brakes are engaged. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 19 STEP 11 Install the display to Display Rails by In the box fastening wingnuts. Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 20 OPTIONAL Install Tripp-lite power strip (not included). In the box Assemble the cart base T498 Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 21 STEP 12 Determine Rally Bar/Rally Bar Mini position. In the box If mounting above the display, If mounting below the display, go to Page 19. go to Page 25. Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap...
  • Page 22 Mount Rally Bar/Rally Bar Mini above display. STEP 13 Select your preferred mounting angle In the box and install Cart Mount Bracket to the Device Panel. Assemble the cart base From H711 From H711 Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display...
  • Page 23 In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 24 STEP 14 Pre-configure power adapter and wiring to Device Panel with Velcro strap included. In the box Assemble the cart base From H702 Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 25 STEP 15 Install Device Panel to Display Rails. In the box From H702 From H702 From H702 Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 26 STEP 16 Fasten Rally Bar to Cart Mount. Use the thumbscrews supplied with your Rally Bar tabletop stand. In the box Do not overtighten the thumbscrews. Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 27 TIP: Accessing Control Panel Content Remove the top two thumbscrews, then rotate the Device Panel. In the box From H702 Assemble the cart base Warning: Do not leave the cart unattended while the Device Panel is open to ensure Install the display stability and to avoid collisions.
  • Page 28 Mount Rally Bar/Rally Bar Mini below display. STEP 13 Install Cart Mount Bracket to the Device Panel. In the box Assemble the cart base From H711 From H711 Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 29 In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 30 STEP 14 Pre-configure power adapter and wiring to Device Panel with Velcro strap included. In the box Assemble the cart base From H702 Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 31 STEP 15 Install Device Panel to Display Rails. In the box From H702 From H702 From H702 Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 32 STEP 16 Fasten Rally Bar to Cart Mount. Use the thumbscrews supplied with your Rally Bar tabletop stand. In the box Do not overtighten the thumbscrews. Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 33 STEP 17 Mount Tap to Control Shelf, using the mounting screws included inside of Tap's underside panel. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 34 STEP 18 Decide Tap mounting angle. In the box Horizontal Angled Vertical Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 35 STEP 19 Install Control Shelf to Display Rails. In the box From H709 From H709 From H709 Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 36 STEP 20 Route power and data cables inside each Display Rail as shown. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
  • Page 37 STEP 21 Route power and data cables along the Rear Leg as shown. In the box Assemble the cart base Install the display Install Rally Bar/Rally Bar Mini Install above the display Install below the display Install Tap Organize the cables...
