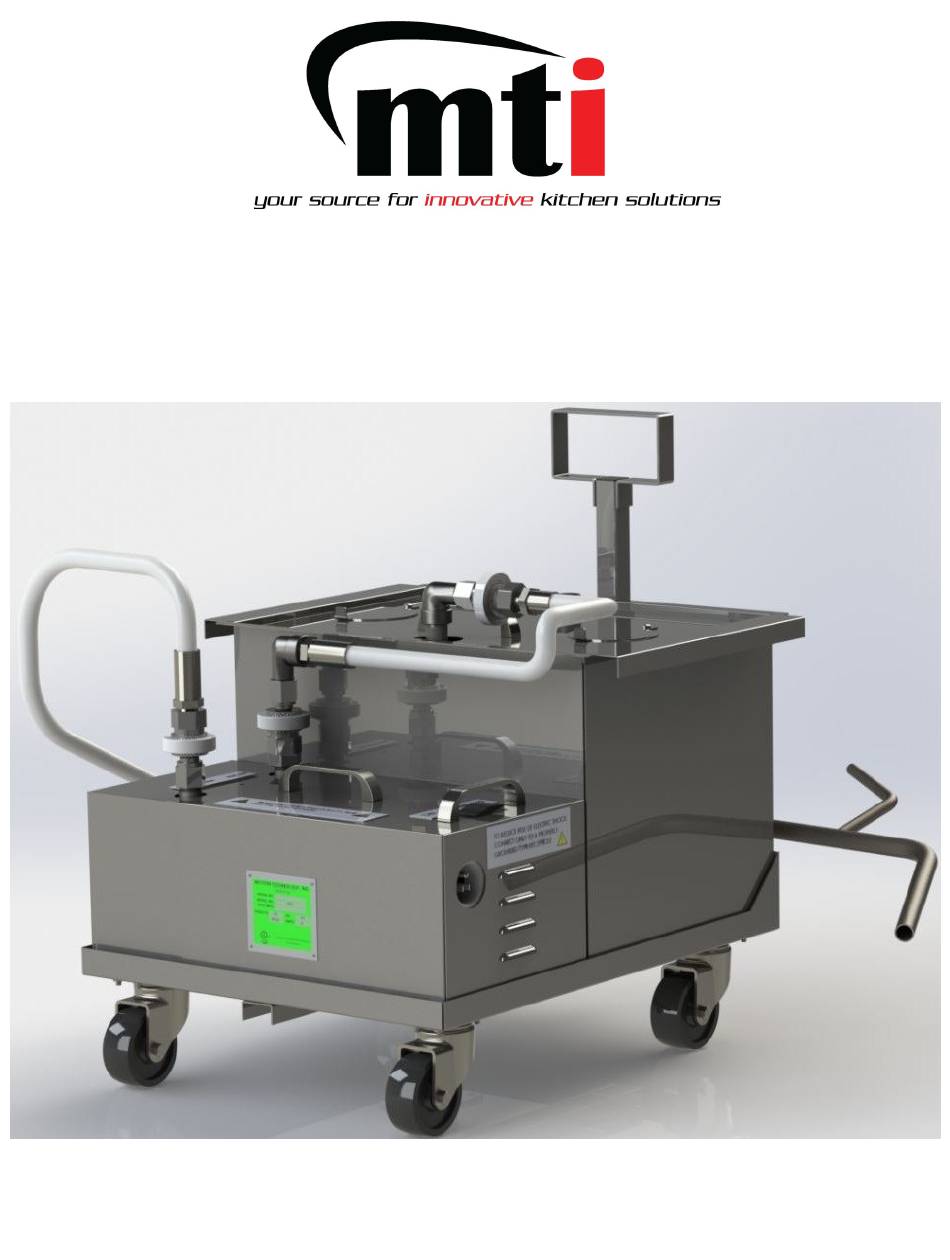

- Page 1 AUTOFRY OFS Oil Filtration System Operator’s Manual E167654...
- Page 2 AUTOFRY A Patented Product of Motion Technology, Inc. 10 Forbes Road Northborough, MA. 01532 Tel.: 800-348-2976 508-460-9800 Fax: 508-393-5750 E167654...
-
Page 3: Table Of Contents
AutoFry OFS Operator’s Manual TABLE OF CONTENTS TABLE OF FIGURES .........................1 WARRANTY INFORMATION ....................2 GENERAL INFORMATION ......................3 SAFETY SYMBOLS ........................3 DESIGNATED / NON-DESIGNATED USE ..................3 IMPORTANT INFORMATION ....................4 OFS BREAKDOWN ........................5 CHANGING THE CARBON PAD FILTER ..................6 VALVE INFORMATION ......................7 HOSE CONNECTIONS ......................8 PREPARING THE OFS ......................9 FILLING WITH FRESH OIL....................... -
Page 4: Warranty Information
These warranties are in lieu of all other warranties, by MTI to sell its equipment and it is not expressed or implied, including, but not limited to transferable. -
Page 5: General Information
Caution – Hot Operation Instruction Designated Use: • The OFS is designed for use in the AutoFry MTI-40E in commercial kitchens. • Follow safety instructions! Filtration is only possible if the oil is liquid. • The OFS should only be used by suitably trained staff. -
Page 6: Important Information
AutoFry OFS Operator’s Manual Important Information: MTI-40E’s with OFS systems are tested with oil prior to leaving the factory. There may be oil present in the lines. CAUTION: Always wear protective clothing and eyewear when working with hot oil. There is a risk of burns from hot oil. -
Page 7: Ofs Breakdown
AutoFry OFS Operator’s Manual OFS Breakdown: Figure 1 Figure 1 shows the OFS fully assembled. To disassemble follow these steps. 1. Disconnect the hose 2 from the top of the filter foot stem Quick Disconnects by pulling back on the white (round) female quick disconnect. -
Page 8: Changing The Carbon Pad Filter
AutoFry OFS Operator’s Manual Changing the Carbon Pad Filter: Once the stem and filter foot have been removed from the OFS vat; 1. Turn the release handle on the filter foot to open and remove the carbon pad filter. Figure 3. 2. -
Page 9: Valve Information
AutoFry OFS Operator’s Manual Valve Information: Pull down the front panel below the main AutoFry door to access the OFS replenishment valve and the OFS System ON / OFF switch. Figure 4. Replenishment Valve: This valve determines whether oil is replenished to the left or right AutoFry oil vat. -
Page 10: Hose Connections
AutoFry OFS Operator’s Manual Hose Connections: Figure 7 Hose 2 Hose 1 Hose 1 – Connected to the bottom of the AutoFry and connects to the pump discharge fitting. This hose will remain attached to the AutoFry when removing the OFS. Hose 2 –... -
Page 11: Preparing The Ofs
AutoFry OFS Operator’s Manual Preparing the OFS System: 1. Completely clean the OFS before its first use to remove any oil or debris from the factory. Use warm soapy water followed by a clear water rinse. Thoroughly dry all parts. 2. -
Page 12: Filling With Fresh Oil
AutoFry OFS Operator’s Manual Filling the AutoFry with Fresh Oil: 1. Fill the OFS Vat with fresh oil. The vat is large enough to hold oil for both sides of the AutoFry. BE SURE THE AUTOFRY IS TURNED OFF UNTIL IT IS FILLED WITH OIL! 2. -
Page 13: Filtering Oil
AutoFry OFS Operator’s Manual Filtering Oil in the AutoFry: **FILTER OIL BELOW 300°F BUT ABOVE 200°F **BE SURE TO ALWAYS WEAR PROTECTIVE GEAR** 1. Make sure the OFS Vat is clean and empty to avoid overflow. BE SURE THE AUTOFRY IS TURNED OFF UNTIL IT IS FILLED WITH OIL! 2. -
Page 14: Disposal Of Old Oil
AutoFry OFS Operator’s Manual Disposal of Old Oil: 1. Ensure the OFS Vat is completely empty to avoid overflow. BE SURE THE AUTOFRY IS TURNED OFF UNTIL IT IS FILLED WITH OIL! 2. Unplug the OFS from the machine outlet. 3. -
Page 15: Cleaning & Maintenance
AutoFry OFS Operator’s Manual Cleaning & Maintenance: The OFS should be cleaned during every carbon pad change. The OFS should only be cleaned when cool. DO NOT clean when hot. NEVER soak or spray the pump / motor assembly with liquid or damage to the pump / motor will result. -
Page 16: Troubleshooting Guide
AutoFry OFS Operator’s Manual OFS OM REV 02/19 63-0108...
