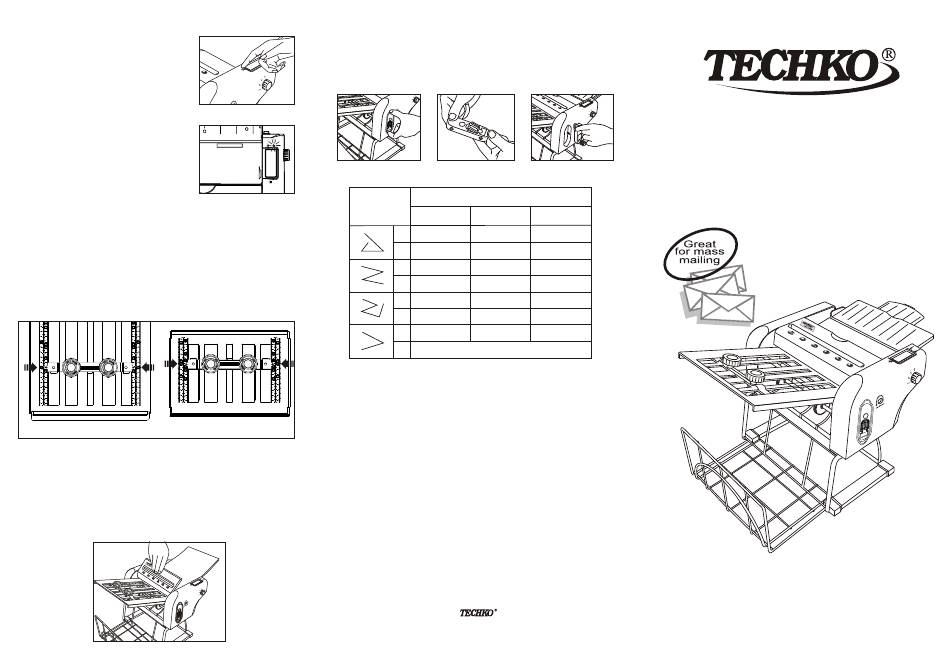

Techko LF293 Operation Instructions

3) The infrared sensor inside the manual feed slot will detect the
paper(s) (this may take a few seconds) and
pull the paper(s) into the unit.
3. The folded paper(s) will come out from the
exit, then fall into the metal basket.
4. Remove the folded paper(s) from the metal
basket.
5. During folding, the 4 digit LED sheet counter
display will show the number of folded sheets.
The data can be cleared by pushing the
"RESET" switch. (Fig. C)
6. The unit may automatically stop folding and
the Overheat LED will illuminate. If the
unit overheats, let it cool down. After the
unit cools down, the Overheat LED will turn
off and the unit is ready to work. ( Fig. D)
7. To change the unit's folding style,
LF293
please see the Paper Folding Chart:
1) Find the paper size and folding style that you want.
2) Refer to the Paper Folding Chart for the relative setting method.
3) Loosen the knobs of the 1st and 2nd Folding Guides and adjust them
as the Paper Folding Chart indicates.
4) Then tighten the knobs.
(ie) If you want to fold A4 paper to a "Z" folding style, then loosen the
1st Folding Guide's knobs and set the panel to "N" position. Also
loosen the 2nd Folding Guide's knobs and set the panel to the "K"
position. Then tighten the knobs and put these two Folding Guides
back to their position. The unit will fold A4 papers as "Z" style. (Fig. E)
1st Folding Guide
Fig. E
8. If you want to slow down or speed up the folding speed, just rotate the
Speed Adjuster to achieve the desired speed.

If the paper jams:

If paper becomes jammed, you can fix with either or both of the below
methods:
1. Method 1: Open the Jamming Release cover, and remove the jammed
paper, then close the Jamming Release cover. (Fig. F)
Fig. F
2. Method 2: Take out the Jamming Handle (Fig. G) and unfold it (Fig. H ),
then insert it into the Jam Reverse Hole and turn the Jamming Handle
counterclockwise (Fig. J) to reverse the paper out. Then remove the
paper and put the Jamming Handle back to its original position.
Note: Turn off and unplug the unit before above operation. It is suggested
to remember the folded quantity shown in the 4-digit LED Sheet Counter
Display before preforming the above 2 methods.
Fig. C
Fig. G
Fig. D TYPE OF
3
FOLD
This chart is also found on the unit.
REMARKS: 1) 1ST IS THE LONGER FOLDING GUIDE;
Warning :
Moist or humid environments will affect the performance of this
2nd Folding Guide unit. Paper can become difficult to fold in humid conditions or where
heavy moisture may be present. Do not use paper folding machine
under these conditions.
If you have questions or need more information on any of our
products please contact customer service.
This product has a 1 year warranty from the date of purchase. To
have your warranty fulfilled, please place product in the original box or
something similar. Pack in such a way as to prevent shipping damage
to the product. Enclose a letter describing the problem. Include your
name, address (no P.O. Boxes), a phone number where you can be
reached, a copy of your sales receipt showing the date of purchase,
and a check or money order in the amount of $10.00 to cover shipping
and handling. The unit will be replaced (TECHKO discretion) and will
be returned via UPS ground. Should you require other methods of
shipment, please contact TECHKO prior to sending your unit back.
Fig. H

PAPER FOLDING CHART

PAPER SIZE
USA (8 1/2"X11") A4 (8 1/4"X11 5/8") (8 1/2"X14")
A J H
1ST
2ND S K Y
B N I
1ST
S K Y
2ND
C R D
1ST
U V Z
2ND
C R D
1ST
2ND REVERSE SECOND FOLD GUIDE
2) 2ND IS THE SHORTER FOLDING GUIDE.
Customer Service :
1-888-8TECHKO (1-888-883-2456)
Website: www.techkousa.com
Mfg. By
9767 Research Drive
Irvine, CA 92618-4626
MADE IN CHINA

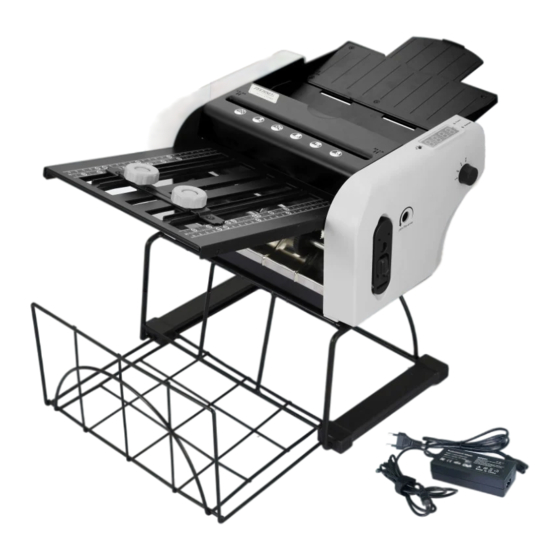

HIGH SPEED PAPER FOLDER
MODELS : LF293
Operation
Fig. J
INSTRUCTIONS
Before operating this unit, please read all of
the instructions and important
warranty information.
