INSTRUCTION SHEET
TDSGABC14

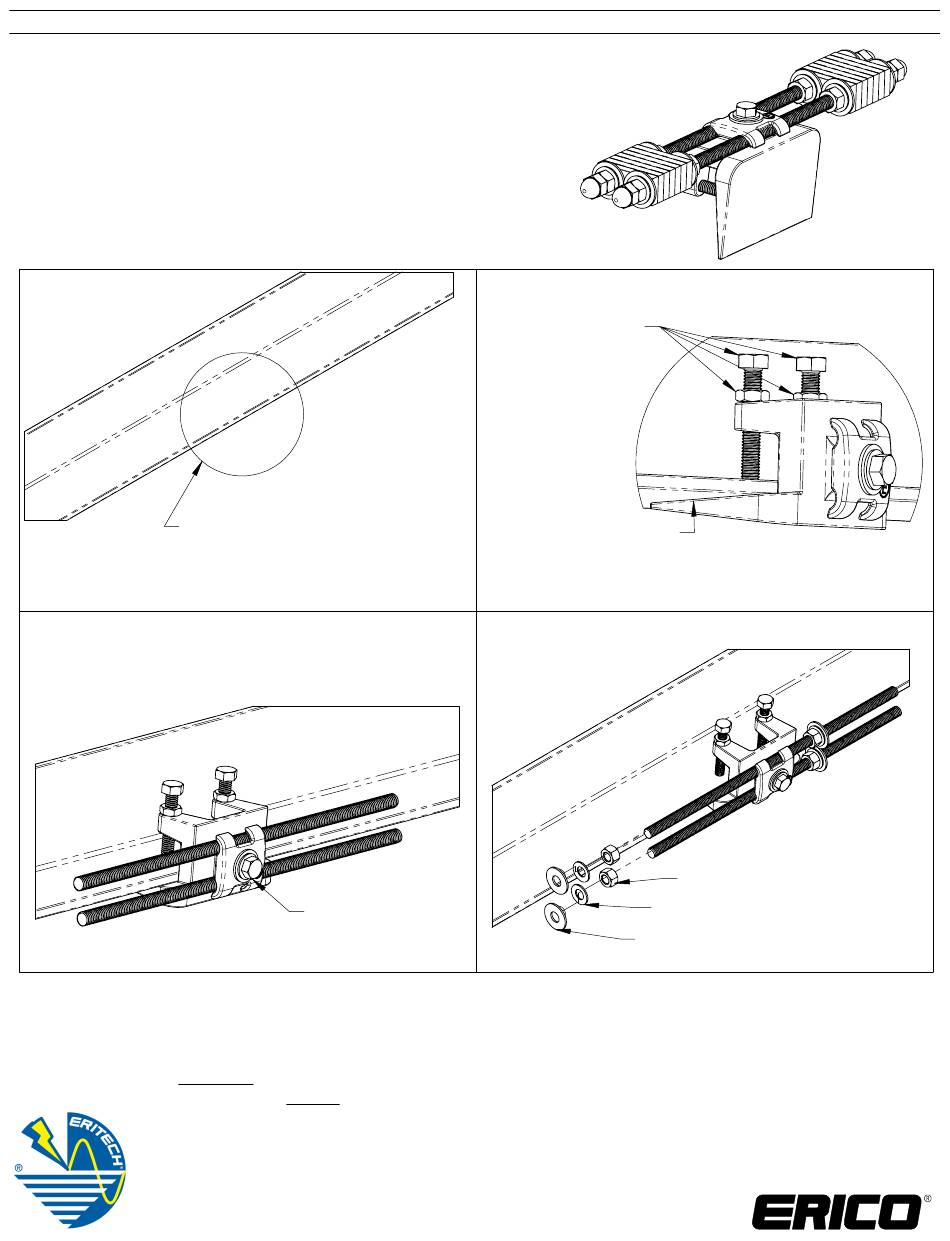

Flange Mount Grounding Bus
Flange Thickness Range: 1/4 to 1 inch
Flange Materials: Aluminum, Copper or Steel
Clean top and bottom surface of
flange using a T313 wire brush.
Remove all paint and oxide layers.
Install threaded rods by loosening hex bolt on
connector. Snug hex bolt by hand such that the rods
do not fall from the connector. Do not tighten hex bolt.
WARNING:
1. ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials.
www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and death.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
TECHNICAL SUPPORT
www.erico.com
Attach clamp. Tighten hex bolts then jam nuts as shown.
Loosen to install rods
IP8250_B 1 OF 2
Apply12 ft-lbs (max)
Apply anti-oxide
compound at interface
Note: In the absence of a torque wrench, snug bolts
and tighten 1/4-turn.
Install inner hardware.
Belleville Washer
3/8" Flat Washer
© 2013 ERICO International Corporation.
3/8-16 Hex Nut
Instruction sheets are available at
