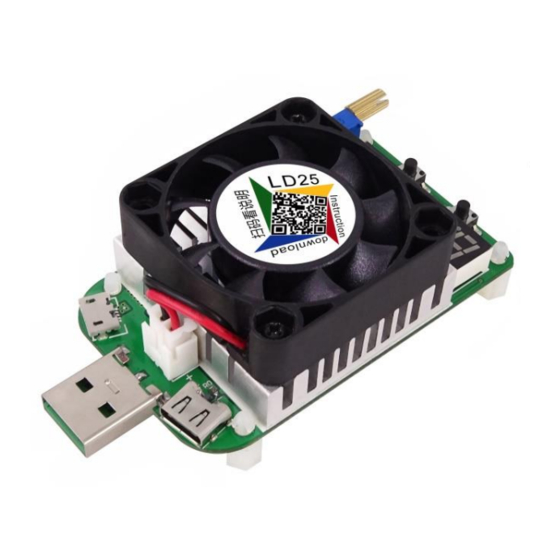

RuiDeng LD25 Instructions

Usb intelligent electronic load

Download this manual

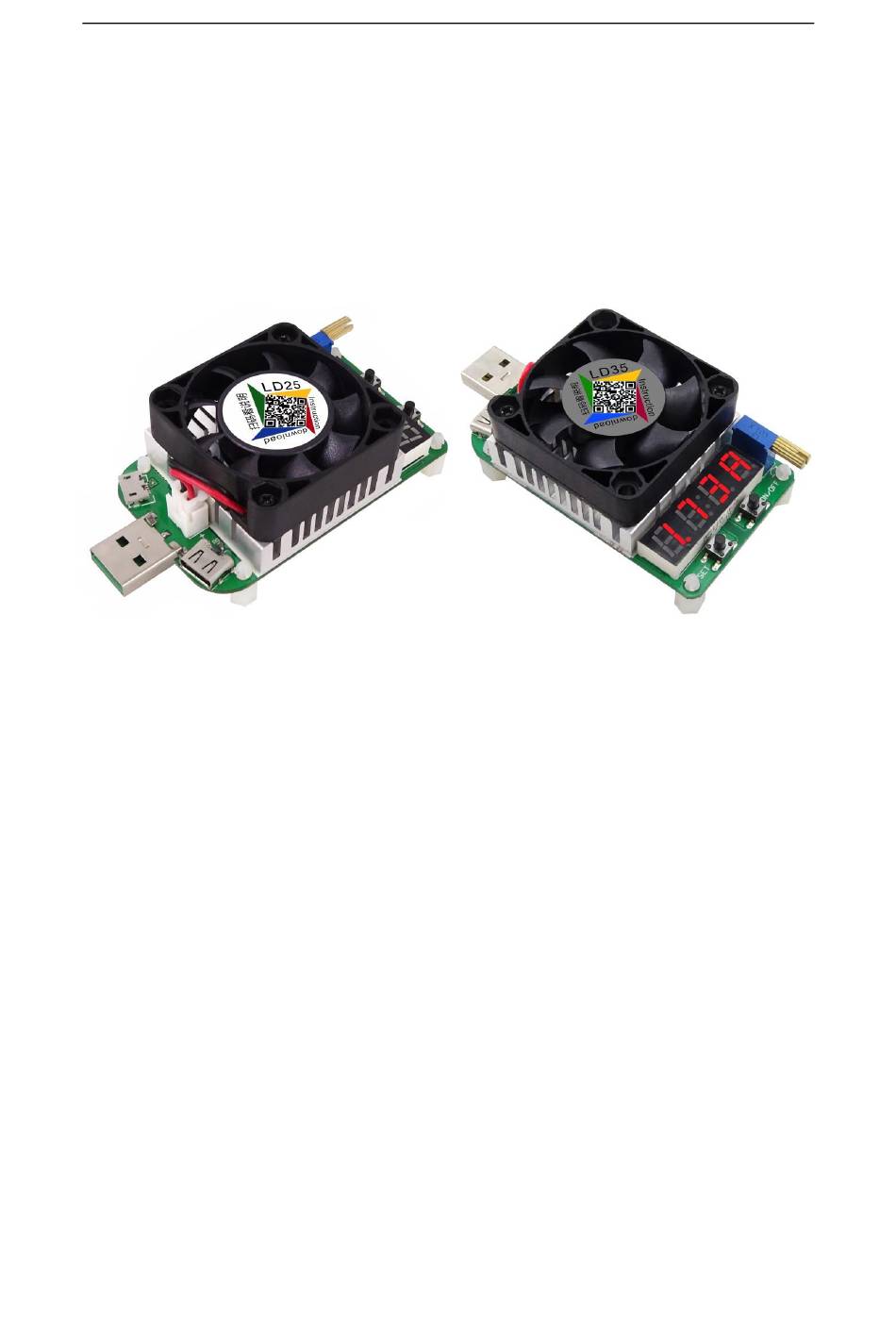

Ruideng Technology Co. Ltd.

Instructions for USB Intelligent electronic load

-Model: LD25/LD35

Dear Customer,

Thank you for purchasing this USB electronic load from Hangzhou Ruideng Technologies Co.,

Ltd. Prior to using this product we recommended that you briefly familiarize yourself with these

instructions. In order to ensure the correct operation and use of the device. We also advise that

you keep these instructions in a safe place for future reference as may be needed.

NOTE:

This product has no reverse connection protection, the input polarity cannot be

reversed, otherwise the product is permanently damaged and cannot be repaired.

- 1 -

Need help?

Do you have a question about the LD25 and is the answer not in the manual?

Page 1 -Model: LD25/LD35 Dear Customer, Thank you for purchasing this USB electronic load from Hangzhou Ruideng Technologies Co., Ltd. Prior to using this product we recommended that you briefly familiarize yourself with these instructions. In order to ensure the correct operation and use of the device. We also advise that you keep these instructions in a safe place for future reference as may be needed.
Page 2 Precision multiloop adjustable potentiometer Adjustable Display mode 4 bit LED tube Expansion port Micro USB port、Type-C port About 57g Product weight Product size 84x41x28mm Note: Description taking an example of LD25, other applicable models ar e universal. Product Structure - 2 -...
Page 3 Ruideng Technology Co. Ltd. A. Micro USB port：MAX current 2A B. USB male port (widened power wire，MAX current 4A） C. Type-C port：MAX current 4A All aluminum heat sink Intelligent temperature control fan F. 4 Bit LED tube Precision multiloop adjustable potentiometer status H.
Page 4 Ruideng Technology Co. Ltd. button to display *.**A、**.*P、**.*V followed by recycling. 3. Open or close load output Press “ON/OFF” button, you can open or close load output 4, Set load default boot status (open or close status, Factory default close status Press and hold “ON/OFF”...
