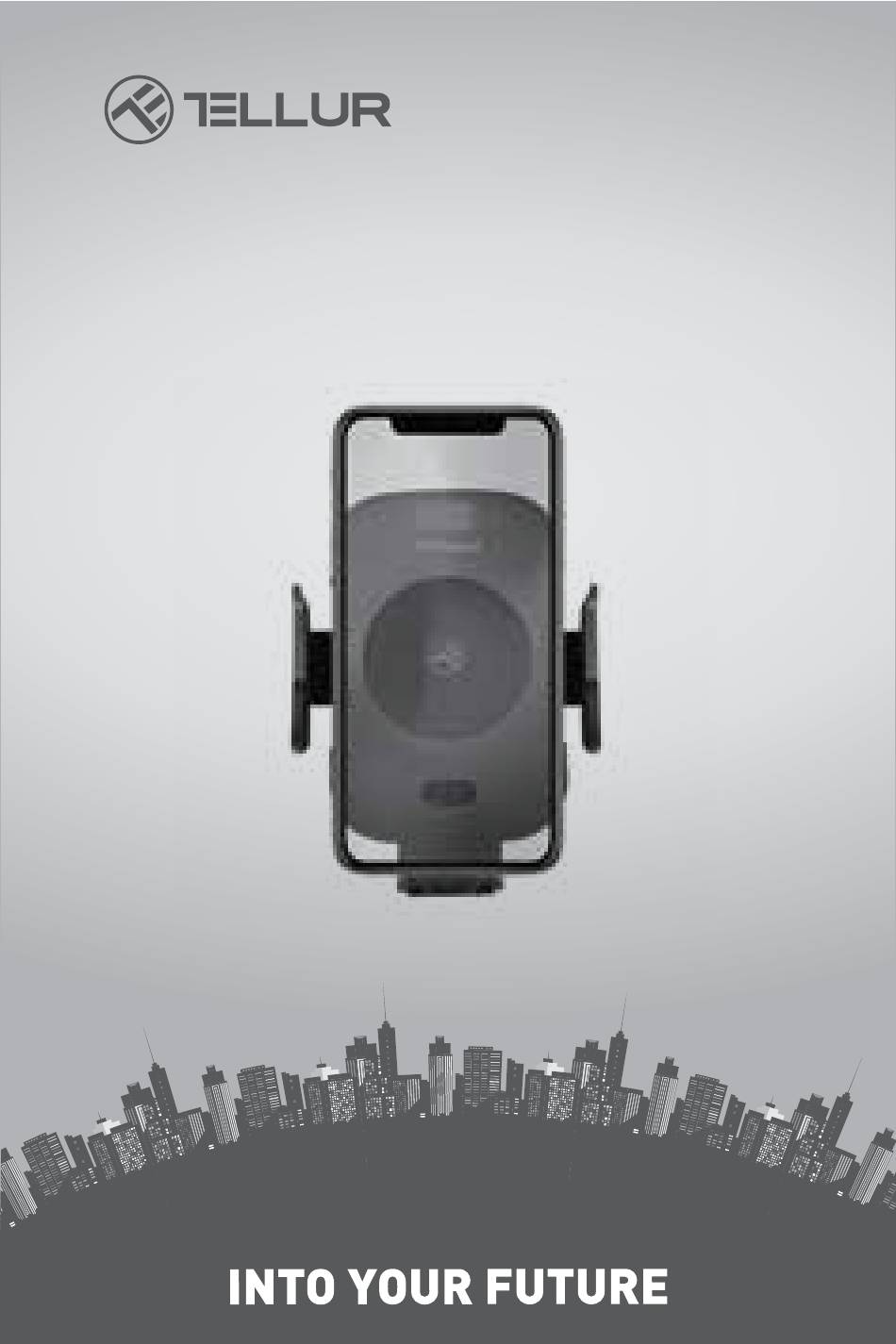

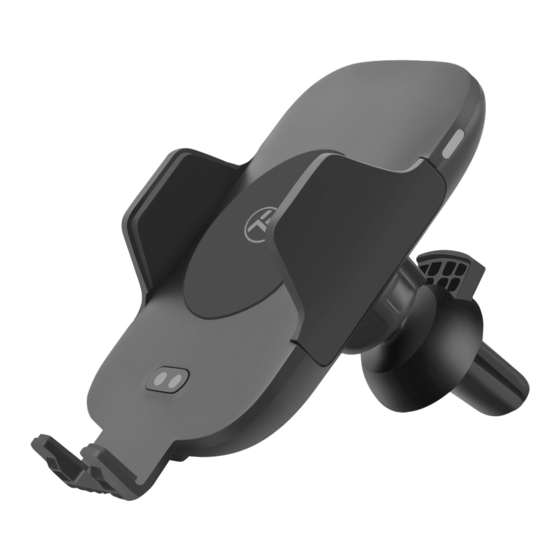

- Page 1 Fast wireless car charger & motorized mount TLL151301- User manual...
- Page 2 Thank you for choosing us! Please read this user manual carefully before using the product. Product specifications: Input current: 9V / 1.67A, 5V / 2A Input port: USB Type-C Cable length: 1m Output power: Adaptive, 5W / 7.5W /10W (max 1.2A) Output current: 9V / 1.2A, 5V / 1.5A Protections: FOD( Foreign Object Detection), Over Voltage, Over Current, Over Temperature (80 )
- Page 3 Product overview Wireless Charger PCBA Coil Fixed nut Clip Soft rubber Button Infrared sensor lens Touch key Motor Infrared sensor PCBA...
- Page 4 Installation steps 1. Air vent installation Follow the arrows to install 4 parts Adjust the screw cap to the best active status 2.Connect the wireless charger to the car adapter using the cable included Min. QC2.0 fast charger adapter required for fast wireless charging (not included)
- Page 5 3. Press the button of the clip to fix it in the air vent, adjust the angle and tighten the fixed nut. 4. Place smartphone The clamps will automatically open and secure lock your phone. Infrared sensor...
- Page 6 5. Take off smartphone Touch the on/off button on the left side, the clips will automatically open and you can take your phone out. Touch key Notes 1. Do not disassemble or throw into fire or water, to avoid causing a short circuit. 2.
- Page 7 The images from this manual are sketch maps, used for illustrating the instructions. The packet includes: wireless charger, power cable, user’s manual. Disposal and recycling information The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives;...
