  5. SMARTER LOGIC ETR-9100
  6. Instruction manual

Ogden SMARTER LOGIC ETR-9100 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PK494-1-OMC
October, 2006

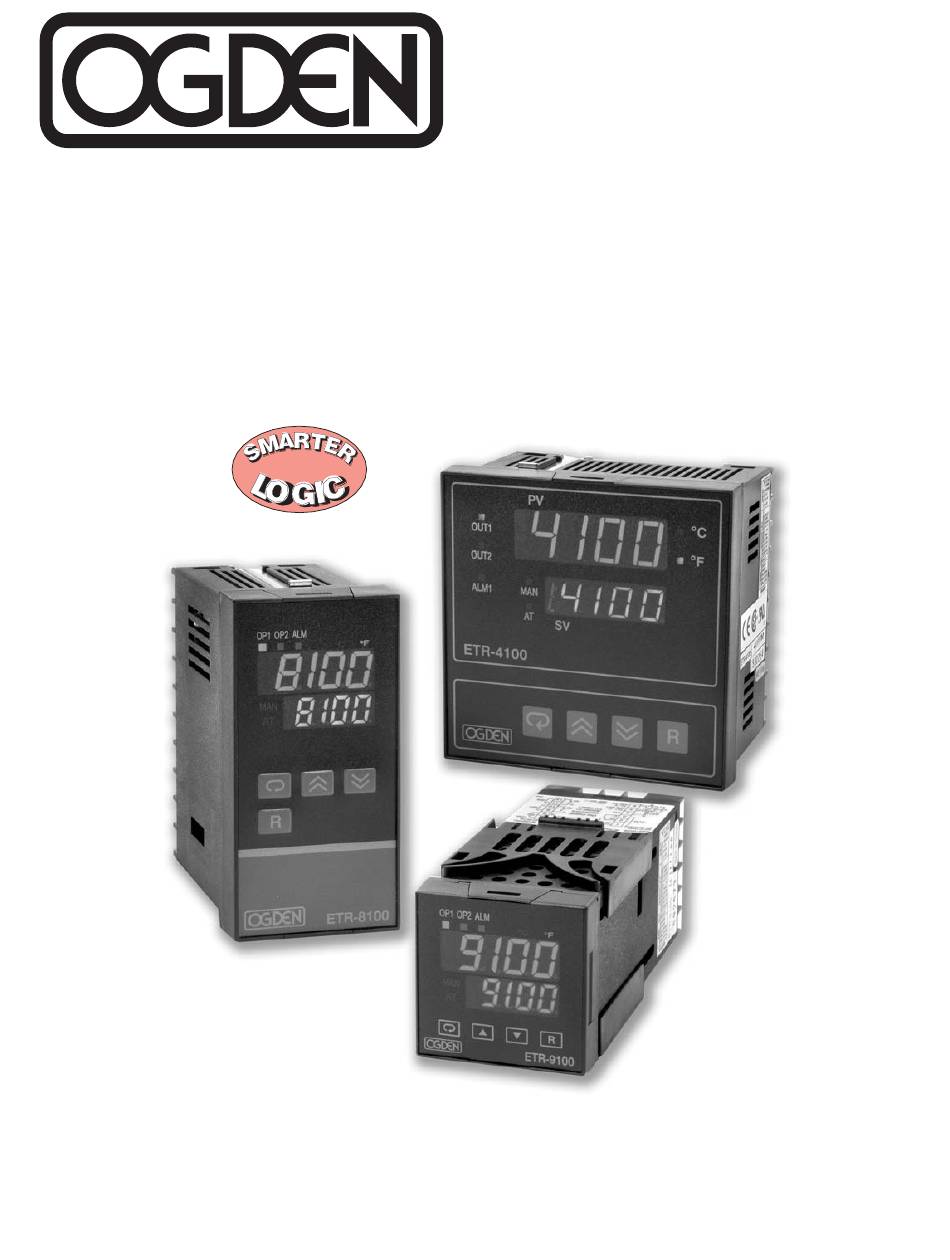

Models ETR-9100, 8100 & 4100
Microprocessor Based
SMARTER LOGIC
Temperature Control
®
®
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTER LOGIC ETR-9100 and is the answer not in the manual?

Questions and answers

Related Manuals for Ogden SMARTER LOGIC ETR-9100

Summary of Contents for Ogden SMARTER LOGIC ETR-9100

  • Page 1 PK494-1-OMC October, 2006 Models ETR-9100, 8100 & 4100 Microprocessor Based SMARTER LOGIC Temperature Control ® ® INSTRUCTION MANUAL...
  • Page 2 Warning Symbol This Symbol calls attention to an operating procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury, damage or destruction to part or all of the product and system. Do not proceed beyond a warning symbol until the indicated conditions are fully understood and met.

  • Page 3: Table Of Contents

    Contents Page No Chapter 1 Overview 1-1 General Description ............................4 1-2 Ordering Code ..............................6 1-3 Programming Port..............................7 1-4 Keys and Displays ...............................7 1-5 Menu Overview ..............................9 1-6 Parameter Descriptions .............................10 Chapter 2 Installation 2-1 Unpacking ................................13 2-2 Mounting ................................13 2-3 Wiring precautions ............................14 2-4 Power Wiring ..............................15 2-5 Sensor Installation Guidlines..........................15 2-6 Sensor Input Wiring ............................15...

  • Page 4: Chapter 1 Overview

    Chapter 1 Overview 1-1 General Description The Smarter Logic PID microprocessor-based controller incorporates a bright, easy-to-read 4-digit LED display. The front LED display can be programmed to indicate either the process value or set point value. Smarter Logic technology enables a process to reach a predetermined set point in the shortest possible time, with minimum overshoot during power-up or external load disturbance.
  • Page 5 Fast Sampling Rate The sampling rate of the input A to D converter reaches 5 times/second. This fast sampling rate allows this series to control fast processes. Smarter Logic Control The function of Smarter Logic control is to automatically adjust the PID parameters from time to time. These dynamic adjustments are made in order to tune the output value to be more flexible and adaptive to various processes.

  • Page 6: Ordering Code

    1-2 Ordering Code ETR-4100- ETR-4100- ETR-8100- ETR-8100- ETR-9100- ETR-9100- Options Power Input 0: Panel mount IP50 standard 4: 90 - 250 VAC, 1: Panel mount IP65 water 50/60 HZ resistant rubber installed 5: 11 - 26 VAC or 2: DIN Rail mount with IP50 9: Special Order (for ETR-9100 only) 3: DIN Rail mount with IP65...

  • Page 7: Programming Port

    1-3 Programming Port Rear Front Panel Terminal Figure 1.2 Programming Port Overview Access Hole Figure 1.2 Programming Port Overview A special connector can be used to connect to the programming port which is then connected to a smart network adaptor SNA12A and a PC for automatic configuration. It can also can be connected to an ATE system for automatic calibration and testing.
  • Page 8 Alarm Upper Display, to display process value, Indicator menu symbol and error code etc. Process Unit Indicator Output 2 Indicator Output 1 OP1 OP2 ALM Indicator Manual Lower Display, Mode to display set point value, parameter value or Indicator control output value etc. Auto-tuning Indicator 4 Buttons for ease of...

  • Page 9: Menu Overview

    1- 5 Menu Overview User Setup Manual Auto-tuning Calibration menu menu Mode Mode Mode 6.2 sec. 7.4 sec. 8.6 sec. 5 sec. 9.8 sec. PV, SV Release then press LOCK H_ _ _ ADLO for 5 seconds INPT ADHI to start INPT UNIT RTDL...

  • Page 10: Parameter Descriptions

    1-6 Parameter Descriptions Parameter Default Parameter Description Range Notation Value 77.0 ° Set point for output 1 Low: SP1L High :SP1H 25.0 °C Set point for output 2 when 18.0° output 2 performs alarm Low: -19999 High :45536 10.0 °C function or dwell timer Set point for alarm or dwell timer 18.0°...
  • Page 11 Parameter Default Parameter Description Range Notation Value : Reverse (heating ) control Output 1 function OUT1 : Direct (cooling) control : Relay : 0 - 1V : Solid state relay drive : 0 - 5V O1TY Output 1 signal type : Solid state relay : 1 - 5V : 0 - 10V...
  • Page 12 Parameter Default Parameter Description Range Notation Value : No alarm function : Dwell timer action : Deviation high alarm : Deviation low alarm Alarm function for ALFN alarm output : Deviation band out of band alarm : Deviation band in band alarm : Process value high alarm : Process value low alarm : Normal alarm action...
  • Page 13 Parameter Default Parameter Description Range Notation Value : No parameter selected : LOCK is put ahead : INPT is put ahead : UNIT is put ahead : DP is put ahead : SHIF is put ahead : PB is put ahead : TI is put ahead : TD is put ahead Select 1'st parameter for...

  • Page 14: Chapter 2 Installation

    Chapter 2 Installation Dangerous voltages capable of causing death are sometimes present in this instrument. Before installation or beginning any cleaning or troubleshooting procedures the power to all equipment must be switched off and isolated. Units suspected of being faulty must be disconnected and removed to a properly equipped workshop for testing and repair.

  • Page 15: Wiring Precautions

    2 - 3 Wiring Precautions Before wiring, verify the label for correct model number and options. Switch off the power while checking. Care must be taken to ensure that the maximum voltage rating specified on the label is not exceeded. It is recommended that the power of these units be protected by fuses or circuit breakers rated at the lowest value possible.

  • Page 16: Power Wiring

    2-4 Power Wiring The controller is designed to operate at 11-26 VAC / VDC or 90-250 VAC. Check that the installation voltage corresponds with the power rating indicated on the product label before connecting power to the controller. Near the controller, a fuse and a switch rated at 2A/250VAC should be equipped, as shown in the following diagram., ETR-4100 ETR-8100 ETR-9100...

  • Page 17: Control Output Wiring

    2-7 Control Output Wiring ETR-4100 ETR-8100 ETR-9100 120V /240V 120V /240V Main Supply Main Supply Figure 2.9 Figure 2.9 Output 1 Relay or Triac (SSR) to Drive Contactor Output 1 Relay or Triac (SSR) to Drive Contactor Three Three Phase Phase Three Phase Three Phase...

  • Page 18: Alarm Wiring

    ETR-4100 ETR-8100 ETR-9100 120V /240V 120V /240V Main Supply Main Supply Figure 2.14 Figure 2.14 Three Three Output 2 Relay or Triac (SSR) to Drive Output 2 Relay or Triac (SSR) to Drive Phase Phase Three Phase Three Phase Contactor Contactor Heater Heater...

  • Page 19: Data Communication

    2-9 Data Communication ETR-4100 ETR-4100 RS-232 RS-485 ETR-8100 ETR-8100 ETR-9100 ETR-9100 ETR-4100 ETR-4100 ETR-8100 ETR-8100 ETR-9100 ETR-9100 9-pin 9-pin Shielded Twisted-Pair Wire RS-232 RS-232 port port ETR-4100 ETR-4100 RS-485 to RS-232 RS-485 to RS-232 ETR-8100 ETR-8100 network adaptor network adaptor CC94-1 ETR-9100 ETR-9100...

  • Page 20: Chapter 3 Programming

    Chapter 3 Programming Press for 3 seconds and release to enter setup menu. Press to select the desired parameter. The display indicates the parameter symbol. Press to view or adjust the value of the selected parameter. 3-1 Lockout Four security levels can be selected using the LOCK parameter. NONE NONE is selected for LOCK, then all parameters are unlocked.

  • Page 21: Control Outputs

    3-3 Control Outputs There are 4 kinds of control modes that can be configured, as shown in Table 3.1 Table 3.1 Heat-Cool Control Setup Value Control OUT1 OUT2 O1HY O2HY Modes Heat only REVR Cool only DIRT Heat: PID REVR DE.HI Cool: ON-OFF Heat: PID...
  • Page 22 Cool only control:ON-OFF control, P (PD) control and PID control can be used for cooling control. Set OUT1 Cool only control: to DIRT (direct action). The other functions for cool only ON-OFF control, cool only P (PD) control and cool only PID control are the same as the descriptions for heat only control, except that the output variable (and action) for the cool control is inverse to the heat control.

  • Page 23: Alarm

    3-4 Alarm There are 6 types of alarm functions and one dwell timer can be selected, and four kinds of alarm modes (ALMD) are available for each alarm function (ALFN). Besides the alarm output, the output 2 can also be configured as another alarm.

  • Page 24: Display Configuration

    Alarm Failure Transfer Alarm Failure Transfer is activated as the unit enters failure mode failure mode . Alarm will go on if is set for ALFT ALFT and go off if is set for ALFT ALFT . The unit will enter failure mode when sensor break occurs or if the A-D converter of the unit fails.

  • Page 25: Dwell Timer

    3-7 Dwell Timer Output 2 can be configured as dwell timer by selecting TIMR for OUT2. As the dwell timer is configured, the parameter SP2 is used for dwell time adjustment. The dwell time is measured in minutes, ranging from 0.1 to 4553.6 minutes.

  • Page 26: Digital Filter

    3- 9 Digital Filter In certain applications, the process value is too unstable to be read. To improve this, a programmable low pass filter incorporated in the controller can be used. This is a first order filter, with the time constant specified by FILT parameter.

  • Page 27: Auto-Tuning

    3 -11 Auto-tuning The auto-tuning process is performed at set point. The process will oscillate around the set point during the tuning process. Set a set point to a lower value if overshooting beyond the normal process value set point is likely to cause damage. The auto-tuning is applied in the following cases: Initial setup for a new process When set point is changed substantially from the previous auto- tuning value...

  • Page 28: Manual Tuning

    3 - 12 Manual Tuning In certain applications ( very few ) using auto-tuning to tune a process may be inadequate for the control requirement. Manual tuning is the option in such cases.. If the control performance by using auto- tuning is still unsatisfactory, the following rules can be applied for further adjustment of PID values : SYMPTOM SOLUTION...

  • Page 29: Data Communication

    TD too low Figure 3.9 Continued Figure 3.9 Continued Effects of PID Adjustment Effects of PID Adjustment Perfect Set point D action TD too high Time 3-14 Data Communication The controllers support RTU mode of Modbus protocol for the data communication. Other protocols are not available for this series.

  • Page 30: Chapter 4 Applications

    Chapter 4 Applications 4-1 Heat Only Control with Dwell Timer An oven is designed to dry products at 150 degrees C for 30 minutes and then stay unpowered until the next batch is ready for baking. An ETR-8100 equipped with a dwell timer is used for this purpose. A single phase system diagram is shown as follows : SP1=150.0 SP1=150.0...

  • Page 31: Cool Only Control

    4-2 Cool Only Control An ETR-8100 is used to control the temperature of a refrigerator below 0°C. The temperature is lower than the ambient, therefore a cooling action is required. Select DIRT for OUT1. Since output 1 is used to drive a magnetic contactor, O1TY should be set to RELY.

  • Page 32: Heat-Cool Control

    4-3 Heat-Cool Control An injection mold is required to be controlled at 120 °C to ensure a consistent quality for the parts. An oil pipe is buried in the mold. Since plastics are injected at higher temperatures (e.g. 250 °C), the circulation oil needs to be cooled as its temperature rises. Here is an example: Injection Mold Injection Mold...

  • Page 33: Chapter 5 Calibration

    Chapter 5 Calibration Do not proceed through this section unless there is a definite need to re-calibrate the controller. Otherwise, all Do not proceed through this section unless there is a definite need to re-calibrate the controller. Otherwise, all previous calibration data will be lost. Do not attempt recalibration unless you have appropriate calibration previous calibration data will be lost.
  • Page 34 Step 4. Press scroll key until the display shows . Send a 100 ohms signal to the RTD input terminals according to the connection shown below: ETR-4100 ETR-8100 ETR-9100 100 ohms Figure 5.1 RTD Calibration Press scroll key for at least 3 seconds. The display will blink a moment, otherwise the calibration fails. Step 5.
  • Page 35 Perform step 1 stated earlier, then press scroll key until the display shows . Press scroll key for at least 3 seconds. The display will blink a moment and a new value is obtained. Otherwise , if the display didn't blink or if the obtained value is equal to -199.9 or 199.9, then the calibration fails. This setup is performed in a high temperature chamber, hence it is recommended to use a computer to perform the procedures.

  • Page 36: Chapter 6 Specifications

    Chapter 6 Specifications Power 90 ~ 250 VAC, 47 ~ 63 Hz, 10VA, 5W maximum 11 ~ 26 VAC / VDC, 10VA, 5W maximum Input Resolution: 18 bits Sampling Rate: 5 times / second Maximum Rating: -2 VDC minimum, 12 VDC maximum (1 minute for mA input) Temperature Effect: ±1.5uV/ °C for all inputs except mA input ±3.0uV/ °C for mA input Sensor Lead Resistance Effect:...
  • Page 37 Characteristics: Accuracy @ 25 VC Input Impedance Range Type -120°C~1000°C (-184°F~1832°F) ±2°C 2.2 M -200°C~1370°C (-328°F~2498°F) 2.2 M ±2°C -250°C~400°C (-418°F~752°F) 2.2 M ±2°C -100°C~900°C (-148°F~1652°F) 2.2 M ±2°C 0°C~1800°C (32°F~3272°F) (±200°C~1800°C) 2.2 M 2.2 M 0°C~1767.8°C (32°F~3214°F) ±2°C 0°C~1767.8°C (32°F~3214°F) 0°C~1767.8°C (32°F~3214°F) ±2°C 2.2 M...
  • Page 38 Linear Output Resolution: 15 bits Output Regulation: 0.02% for full load change Output Settling Time: 0.1 sec. (Stable to 99.9%) Isolation Breakdown Voltage: 1000 VAC Temperature Effect: ±0.01% of SPAN / °C Triac (SSR) Output Rating: 1A / 240 VAC Inrush Current: 20A for 1 cycle Min.
  • Page 39 User Interface Single 4-digit LED Display Keypad: 3 keys Programming Port: For automatic setup, calibration and testing Communication Port: Connection to PC for supervisory control Control Mode Output 1: Reverse (heating) or direct (cooling) action Output 2: PID cooling control, cooling P band 50~300% of PB, dead band -36.0 ~ 36.0 % of PB ON-OFF: 0.1 - 90.0 (°F) hysteresis control (P band = 0) P or PD: 0 - 100.0 % offset adjustment PID: Fuzzy logic modified...

  • Page 40: Chapter 7 Modbus Communications

    Chapter 7 Modbus Communications 7-1 Functions Supported Only function 03, 06 and 16 are available for this series of controllers. The message formats for each function are described as follows: Function 03: Read Holding Registers Query (from master) Response (from slave) Slave address (0-255) Function code (3) Byte count...

  • Page 41: Exception Responses

    7-2 Exception Responses If the controller receives a message which contains a corrupted character (parity check error, framing error etc.), or if the CRC16 check fails, the controller ignores the message. However, if the controller receives a syntactically correct message which contains an illegal value, it will send an exception response, consisting of five bytes as follows: slave address +offset function code + exception code + CRC16 Hi + CRC16 Lo Where the offset function code is obtained by adding the function code with 128 (ie.

  • Page 42: Parameter Table

    7-3 Parameter Table Register Parameter Scale Scale Parameter Notes Address Notation High Set point 1 Set point 2 Set point 3 LOCK Lock code 65535 Input sensor selection 65535 INPT Measuring unit UNIT 65535 Decimal point position 65535 Low scale value for linear input INLO High scale value for linear input INHI...
  • Page 43 Scale Register Parameter Scale Parameter Notes High Address Notation Output 2 cycle time CYC2 6553.5 Cooling P band 65535 Heating-cooling dead band -1999.9 4553.6 Alarm function 65535 ALFN Retransmission high scale value REHI Alarm opertion mode ALMD 65535 Alarm hysteresis ALHY Alarm failure transfer ALFT...
  • Page 44 Register Parameter Scale Scale Parameter Notes Address Notation High Bumpless transfer of OP1 BPL1 0.00 655.35 Bumpless transfer of OP2 BPL2 0.00 655.35 Cold junction signal low CJCL 0.000 65.535 Process value 64, 128 Current set point value 65, 129 Read only, unless in OP1 control output value...
  • Page 45 *3: The PROG Code is defined in the following table: Model No. ETR-9100 ETR-8100 ETR-4100 PROG Code 6.XX 11.XX 34.XX 12.XX 33.XX Where XX denotes the software version number. For example: PROG=34.18 means that the controller is C91 with software version 18. *4: The scale high/low values are defined in the following table for SP1, INLO, INHI, SP1L, SP1H, SHIF, PV, SV, RELO and REHI: Non-linear...

  • Page 46: Data Conversion

    For ETR-9100, ETR-8100 and ETR-4100 Non-linear Linear input Linear input Linear input Linear input Conditions input DP = 0 DP = 1 DP = 2 DP = 3 -1999.9 -19999 -1999.9 -199.99 -19.999 Scale low Scale high 4553.6 45536 4553.6 455.36 45.536 7-4 Data Conversion...
  • Page 47 4F 19 4E 83 4E 83 Addr. Func. Starting Addr. No. of words Bytes SP1=25.0 SP2=10.0 SP3=10.0 LOCK=0 INPT=1 UNIT=0 DP=1 INLO=-17.8 INHI=93.3 21 4E 00 02 00 SP1L=-17.8 SP1H=537.8 SHIF=0.0 FILT=2 DISP=0 PB=10.0 TI=100 TD=25.0 OUT1=0 O1TY=0 O1FT=0 O1HY=0.1 00 02 CYC1=18.0 OFST=25.0 RAMP=0 RR=0.0...
  • Page 48 Example 2: Read PV, SV, MV1 and Mv2. Send the following message to the controller via the COMM port or programming port: H'40 H'80 Addr. Func. Starting Addr. No. of words CRC16 Example 3: Perform Reset Function (same effect as pressing key) Query H'68...

  • Page 49: Error Codes

    Table A.1 Error Codes and Corrective Actions Display Error Error Description Corrective Action Symbol Code Illegal setup values been used: Check and correct setup values of OUT2, PB, TI and Before COOL is used for OUT2, OUT1. IF OUT2 is required for cooling control, the DIRT ( cooling action ) has already control should use PID mode ( PB = 0, TI = 0 ) and been used for OUT1, or PID mode...
  • Page 50 © Chromalox, Inc., 2006 OGDEN, SMARTER LOGIC, ETR and 103 Gamma Drive ETR-9000 are Registered Trademarks of Pittsburgh,PA 15238 Ogden Manufacturing Co. MARCA REGISTRADA (412) 967-3906 • Fax: (412) 967-3930 www.ogdenmfg.com Specifications subject to change without notice. Printed in U.S.A. 9/2006...
