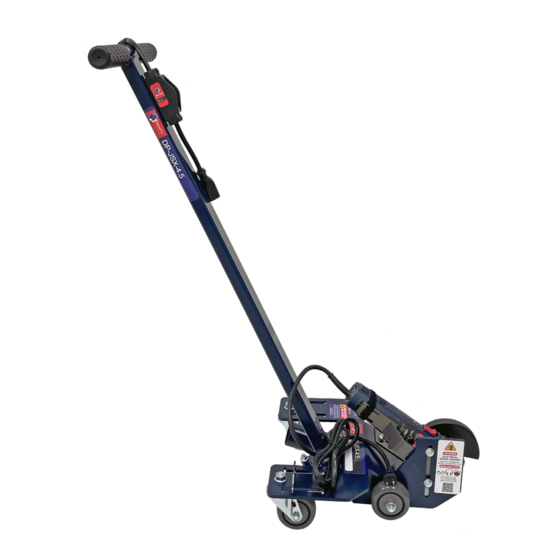

- Page 1 OWNER’S MANUAL DP-JSX-4.5 WALK-BEHIND SAW OPERATION & MAINTENANCE MANUAL SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 This manual provides information and procedures to safely operate and motor air vent. Rubber gloves and non-skid footwear are recommended maintain the DP-JSX-4.5. For your own safety and protection from injury, when working outdoors. carefully read, understand, and observe the safety instructions described in this manual.
- Page 3 1.16 CHECK BLADE AND MACHINE ROTATION 1.28 STAY ALERT DIRECTION Watch what you are doing. Use common sense. Do not operate machine when you are tired or fatigued. Never operate a blade in the wrong rotation direction. Check the machine rotation direction and blade direction when mounting a blade.
- Page 4 DUST WARNING Cutting, especially when DRY cutting, generates dust that comes from the material being cut, which frequently contains silica. When dry cutting, be sure to use a HEPA filtered dust collector. Silica is a basic component of sand, quartz, brick clay, granite and numerous other minerals and rocks. Exposure to excessive amount of such dust can cause: Respiratory diseases (affecting your ability to breath), including chronic bronchitis, silicosis and pulmonary fibrosis from exposure to silica.
- Page 5 PRODUCT SET-UP Handle Installation: (Yellow Arrows) 1. Install the handle as shown. 2. Plug the grinder into the remote power box. Never leave the machine plugged in while unattended or replacing the blade. Set-Up: 1. The JSX-4.5 is assembled for maximum cutting depth.
- Page 6 Part Number Description 4.5 - 1 SAW BASE 4.5 - 2 DIAMAPRO HGX-5 GRINDER 4.5 - 3 BOTTOM MOUNTING BRACKET 4.5 - 4 TOP MOUNTING BRACKET 4.5 - 5 WHEEL LOCK 4.5 - 6 DUST DEFLECTOR 4.5 - 7 GRINDER BLADE GUARD 4.5 - 8 3”...
- Page 7 Handle Assembly Part Number Description HANDLE ASSEMBLY HANDLE GRIP ELECTRICAL BOX SWITCH...
- Page 8 DiamaPro Systems ® 3343 Peachtree Road NE Suite 145 #24 Atlanta, GA 30326 470-977-2323...
