Summary of Contents for BMW Motorrad Plus battery charger

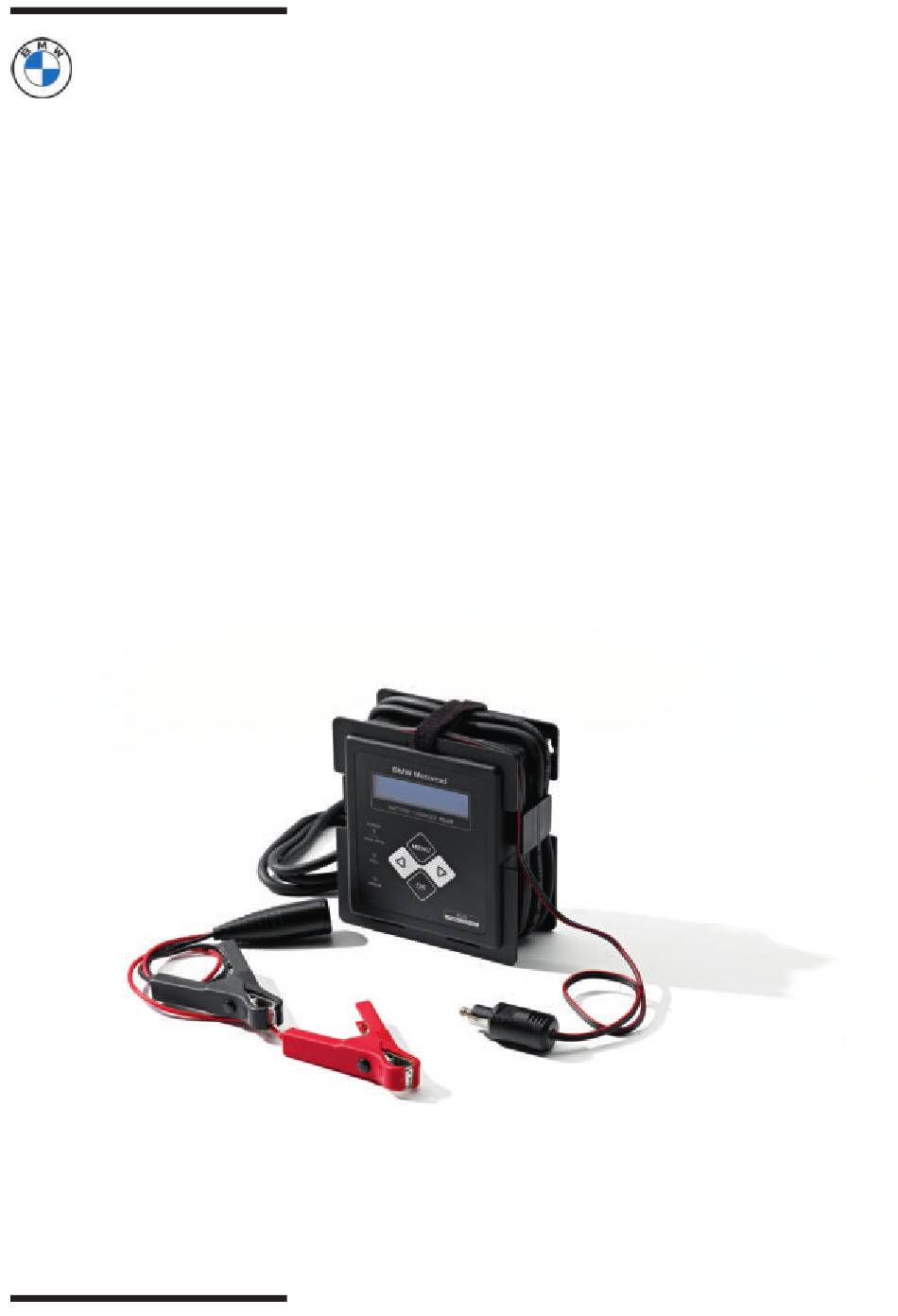

- Page 1 MOTORRAD Operating instructions Plus battery charger MAKE LIFE A RIDE...
- Page 2 Read these operating instructions before If you have questions concerning our using your new accessory product for the products, your authorised BMW Motorrad first time. You will find important notes here retailer will be happy to provide advice and on operation which will help you to make assistance.
-
Page 3: Table Of Contents
GENERAL INSTRUCTIONS About these operating instructions Abbreviations and symbols PRODUCT DESCRIPTION Safety instructions Compatibility Charging process Protective circuitry Maintenance and cleaning Disposal OPERATION Overview LEDs Switching on Changing the settings Selecting a language Selecting a charging mode CHARGING PROCESS Recharging battery Charging progress Pauses in charging Float charging... -
Page 4: General Instructions
GENERAL INSTRUCTIONS... -
Page 5: About These Operating Instructions
ABOUT THESE OPERATING INSTRUCTIONS Read these operating instructions before switching on your new Plus battery charger. Important information about operation is to be found here. If the time comes to sell your Plus battery charger, be sure to hand over this copy of the operating instructions to the new owner. -
Page 6: Product Description
PRODUCT DESCRIPTION... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS WARNING Explosive gases during battery charging WARNING Risk of explosion and fire Wrong battery type or charging mode Avoid sparks and flame. Battery damage and risk of fire Charge the battery in a well-ventilated Use the battery charger only for location. -
Page 8: Compatibility
BMW Motorrad starter batteries. Lead-acid batteries Maintenance-free lead-acid batteries (gel or AGM) Lithiumion batteries The Plus battery charger is also suitable for motorcycles with CAN bus technology. No liability is accepted for other-make bat- teries. CHARGING PROCESS The battery is charged via the motorcycle’s on-board socket. -
Page 9: Operation
OPERATION... -
Page 10: Overview
OPERATION OVERVIEW Cable bracket Wall-mount holes Slot for attaching hook and loop tape Display Charging adapter Charging cable MENU button Arrow right button OK button Arrow left button Power supply cable LEDs... -
Page 11: Leds
ID Select the "Charging mode" menu item. appears in the display. Press the OK button. The Plus battery charger is ready for oper- The "Charging mode" menu item opens. ation and the display shows No battery... -
Page 12: Charging Process
CHARGING PROCESS... -
Page 13: Recharging Battery
When the battery is fully charged, Char- gingComplete Battery mainten. Connect the Plus battery charger to the pears in the display. The Plus battery char- on-board socket. ger can be disconnected. Charging starts automatically. appears in the display al-... - Page 14 A very low current flows from the battery back to the Plus battery charger, so over a period of months the battery can become fully discharged. For float charging, there- fore, the Plus battery charger has to stay connected to the electricity supply.
-
Page 15: Troubleshooting
TROUBLESHOOTING... -
Page 16: Charging Error
TROUBLESHOOTING the Plus battery charger can tell that the CHARGING ERROR battery is deep-discharged, in which case If the battery cannot be charged, the Battery deep discharged? Start Plus battery charger interrupts charging. The appear in the display. charging press OK... -
Page 17: Motorcycle Does Not Start
The battery might be defective. ERROR LED LIGHTS UP If the Plus battery charger is connected to a battery with a voltage outside the permiss- ible range, for example greater than 16 V, the ERROR LED lights up and No battery appears in the display. -
Page 18: Technical Data
TECHNICAL DATA... -
Page 19: Electrical Ratings
ELECTRICAL RATINGS Line voltage 230 V, 50 Hz, power cord with type C plug (Euro-standard plug) 230 V, 50 Hz, power cord with type G plug (special UK plug) 110 V, 60 Hz, power cord with type A plug Charging voltage 12 V Charge cut-off voltage 14.4 V... - Page 20 Disclaimer Depending on the scope of equipment or accessories of your product from BMW Motorrad but also in the case of country-specific versions, deviations from the details described or illustrated in this booklet may occur. No claims will be entertained as a result of such discrepancies.
- Page 21 For further information on the subject of equipment, visit: bmw-motorrad.com/equipment Order No.: 01 29 5 A58 8C4 *01295A588C4* 07.2021, 3rd edition, 01...
