Angry Audio BUTTON GIZMO Preliminary User Manual

BUTTON GIZMO
Preliminary User Guide
Thanks for purchasing the Angry Audio Button Gizmo. We are grateful! The user guide is in the queue
and should be ready sometime in the next few months. Meantime, here are some operating notes to help
you enjoy your gizmo.
The Button Gizmo uses the same size cutout as the Mic Tally Gizmo. Please use the template and
instructions from the Mic Tally Gizmo User Guide:
https://bit.ly/3pvkj9a
The Button Gizmo is intended to plug into a GPIO port on a radio broadcast console. Various
manufacturers use different pin-outs and logic signals. Consult your console manual for details. If you get
stuck, give us a shout. We love this stuff. We'll happily help you get things sorted.

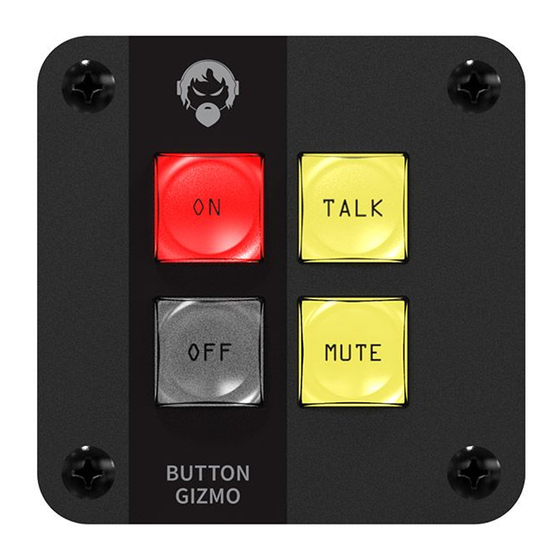

Button 1. Illuminates red during
external closure to common
Button 2. Illuminates yellow during
external closure to common
If you have an Axia console, you are in luck. The Button Gizmo is designed to plug-and-play as a Guest
Mic Control Panel into an Axia console. You'll need one available GPIO port for each Button Gizmo.
Included in the package is a DB15M to RJ45F adapter, prewired for Guest Mic logic. Install your Button
Gizmo, plug this adapter into the GPIO port, use a standard CAT5 cable to connect between them and
you're in business.
The rear of the Button Gizmo has a single RJ45F connector. The pinout is as follows:
RJ45 Pin 1 Button 1
RJ45 Pin 2 Button 2
RJ45 Pin 3 Button 3
RJ45 Pin 4 Button 4
RJ45 Pin 5 Lamp 1
RJ45 Pin 6 Lamp 2
RJ45 Pin 7 Common
RJ45 Pin 8 V+
Closure to common while Button 1 is pressed.
Closure to common while Button 2 is pressed.
Closure to common while Button 3 is pressed.
Closure to common while Button 4 is pressed.
Illuminates Button 1 LED when connected to common.
Illuminates Button 2 LED when connected to common.
Connect to logic common on your GPIO port.
Connect to +5VDC or +12VDC on your GPIO port.
Button 3. Illuminates yellow while
button is pressed.
Button 4. Illuminates yellow while
button is pressed.
