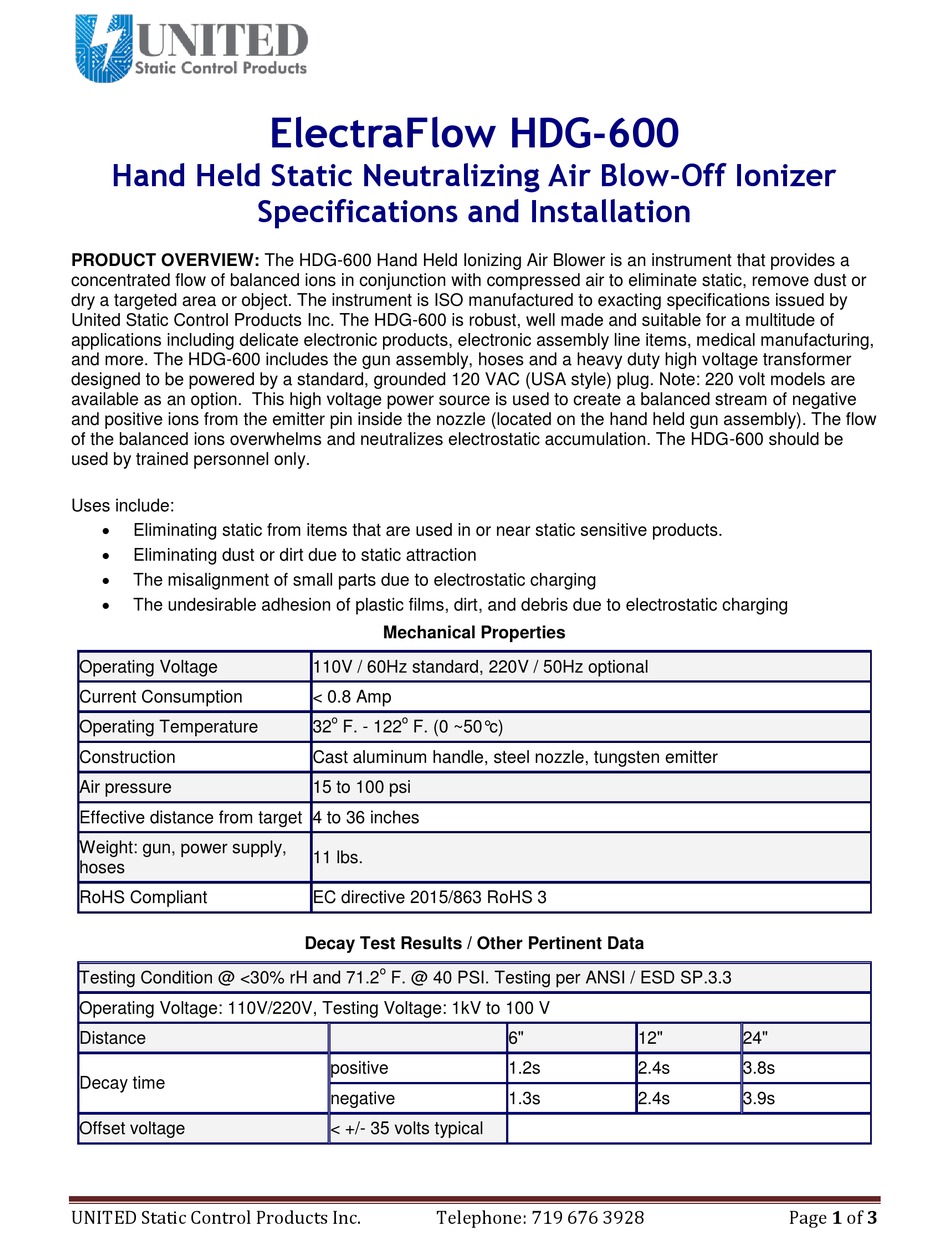

UNITED ElectraFlow HDG-600 Specifications And Installation

Hand Held Static Neutralizing Air Blow-Off Ionizer
PRODUCT OVERVIEW: The HDG-600 Hand Held Ionizing Air Blower is an instrument that provides a
concentrated flow of balanced ions in conjunction with compressed air to eliminate static, remove dust or
dry a targeted area or object. The instrument is ISO manufactured to exacting specifications issued by
United Static Control Products Inc. The HDG-600 is robust, well made and suitable for a multitude of
applications including delicate electronic products, electronic assembly line items, medical manufacturing,
and more. The HDG-600 includes the gun assembly, hoses and a heavy duty high voltage transformer
designed to be powered by a standard, grounded 120 VAC (USA style) plug. Note: 220 volt models are
available as an option. This high voltage power source is used to create a balanced stream of negative
and positive ions from the emitter pin inside the nozzle (located on the hand held gun assembly). The flow
of the balanced ions overwhelms and neutralizes electrostatic accumulation. The HDG-600 should be
used by trained personnel only.
Uses include:

Eliminating static from items that are used in or near static sensitive products.

Eliminating dust or dirt due to static attraction

The misalignment of small parts due to electrostatic charging

The undesirable adhesion of plastic films, dirt, and debris due to electrostatic charging
Operating Voltage
Current Consumption
Operating Temperature
Construction
Air pressure
Effective distance from target 4 to 36 inches
Weight: gun, power supply,
hoses
RoHS Compliant
Testing Condition @ <30% rH and 71.2
Operating Voltage: 110V/220V, Testing Voltage: 1kV to 100 V
Distance
Decay time
Offset voltage
UNITED Static Control Products Inc.
ElectraFlow HDG-600
Specifications and Installation

Mechanical Properties

110V / 60Hz standard, 220V / 50Hz optional
< 0.8 Amp
o o
32 F. - 122 F. (0 ~50°c)
Cast aluminum handle, steel nozzle, tungsten emitter
15 to 100 psi
11 lbs.
EC directive 2015/863 RoHS 3
Decay Test Results / Other Pertinent Data
o
F. @ 40 PSI. Testing per ANSI / ESD SP.3.3
positive
negative
< +/- 35 volts typical
Telephone: 719 676 3928
6" 12"
1.2s 2.4s
1.3s 2.4s
24"
3.8s
3.9s
