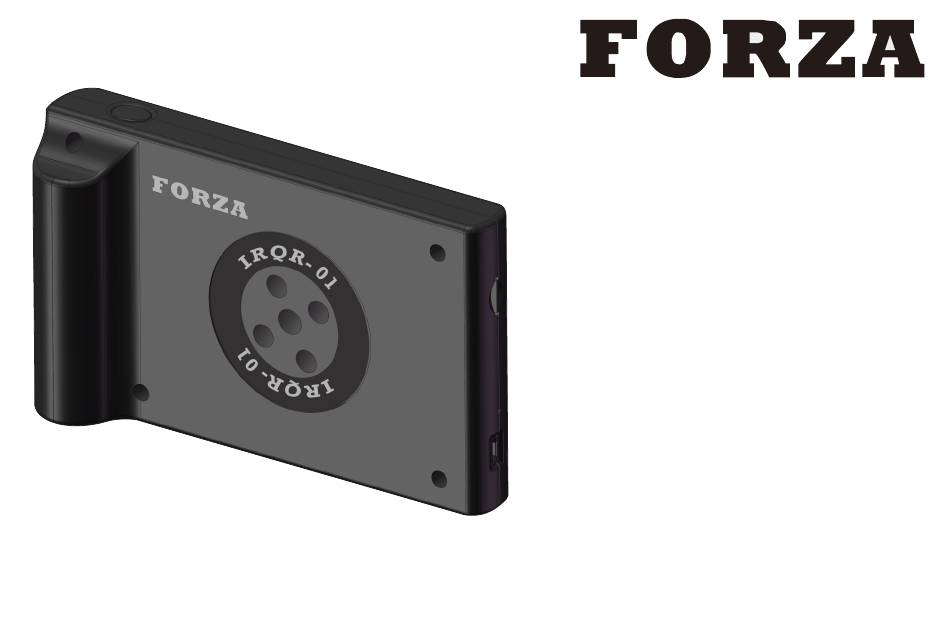

- Page 1 Operating Instructions Model IRQR-01 (Sophisticated Device for viewing latent IR image)
- Page 2 Declaration of Conformity Responsible Party : Potenza Investment Holdings LLC Address : 875 Prospect street, suite 206, La Joya, 9203, 7 USA For Customers in the U.S.A. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference.
- Page 3 1.The suitable temperature for the product and accessories is 0~40℃, the charging temperature is 0~40℃. 2.The SAR limit of EU (CE) is 2.0 W/kg averaged over one gram of tissue. Device "FORZA" has been tested at 0.09 W/Kg. 3.This device is operated the frequency bands and the maximum output power (E.I.R.P): 2412 - 2472 MHZ : 15.68 dBm Max.
- Page 4 Before You Start Safety notes for using FORZA ·Keep device out of reach of children and infants. ·Do not drop or allow device to hit solid objects. ·Do not attempt to disassemble device. ·To prevent device from being damaged by moisture, do not use or store it in humid environments, such as in the rain or near bodies of water.
- Page 5 Other Safety Notes ·When using the device on an airplane, observe the relevant rules specified by the airline. ·Due to the limitations of manufacturing technology, the LCD screen may have several dead or bright pixels. These pixels do not affect the quality orperformance of the camera, photos or video.
-
Page 6: Table Of Contents
Contents Page No. 1. Introduction 2. Features 3. Quick Start P.8-9 4. Getting to know FORZA P.10-12 5. Functions P.13 6. Web Operation P.14 7. Troubleshooting 8. Specification... -
Page 7: Introduction
-This manual has been written to help you operate FORZA to view and decode the latent IR image in QR code format. -The Quick Start Guide takes you through the process of unpacking and setting up FORZA, taking and decoding the IR images and transferring them to your computer. -
Page 8: Quick Start
Quick Start Device Operation ·Power on the device by pressing on/off button. ·Locate the invisible QR code with the viewfinder on the screen. ·Auto scan and decode contents shown on the screen. ·Press icon on screen to select functions (save, delete, upload, etc.) ·Connect device to PC for data transfer. -
Page 9: Getting To Know Forza
Starting ..Power off..FORZA Thank you for using FORZA Screen power on Screen power off * After device activation, it takes up to 3 seconds for the device to finish setting up. An image will appear with the ‘starting’ signal. - Page 10 CAMERA INTERFACE VIEWFINDER A rectangular space in the center of the main screen that allows user to view camera imaging and help to locate the optimum position of decoding. Automatic scan and decode function will decode the QR code shown on screen. * Make sure the upper and lower ends of QR code lines up to the borders of Viewfinder.
-
Page 11: Functions
FUNCTIONS 2021-05-10 22:53:00 Decoded DECODING QR CODE 1.Angle device to position the code within the borders of the camera viewfinder. decoded message: 2.The code will be automatically decoded into a message that will appear on screen, where options Save, Delete or Upload are is available. Auto scanning and decoding 3.Click Save symbol and Confirm symbol to approve action. - Page 12 TRANSFERRING DATA TO OTHER DEVICES UPLOADING DATA TO SERVER 1.Connect to Wi-Fi. 2.Click Storage to view saved codes and contents. 3.Proceed to click Upload. A progress bar will appear to indicate the percentage of information uploaded to server. 4.When the data is uploaded, it will be saved in the storage album as well. 5.Data can either be uploaded to server after decoding instantly or saved in storage album and uploaded manually afterwards.
- Page 13 Charging the Battery 1. Connect the camera using the supplied USB cable or any USB cable for 2A charging. 2. After the battery is stored for a long period of time, charge the battery prior to use. 3. When the camera is turned off, you can also connect the camera to your PC using a USB cable to charge the battery. 4.
-
Page 14: Web Operation
WEB Operation Login to website to view transferred data. www.LAZOSDECODER.NET User LOGIN Login to website with Device ID and password Device ID : Refer to the Custom Setting page Login : Set password with 6-16 digits (case-sensitive) in the first login Login password is preset at “888888”, it is able to be changed after first login. -
Page 15: Troubleshooting
- Recharge the battery - Change an new battery Unable to decode QR code - FORZA shakes while scanning - Hold with steady hands. - QR code is not aligning correctly - Make sure the QR code image is seen on the viewfinder, align upper and lower end of QR code to the borders of viewfinder. -
Page 16: Specification
Specification Product name FORZA Model number IRQR-01 Dimension 156.2 x 98.2 x 35.3 mm Weight 248 grams Power supply 3.7V Lithium ion battery (with circuit protection) Charging Input 5V / 2A micro USB cable (recommended) Data transfer Micro USB cable...
