Summary of Contents for McLelland UWA-S5 TX

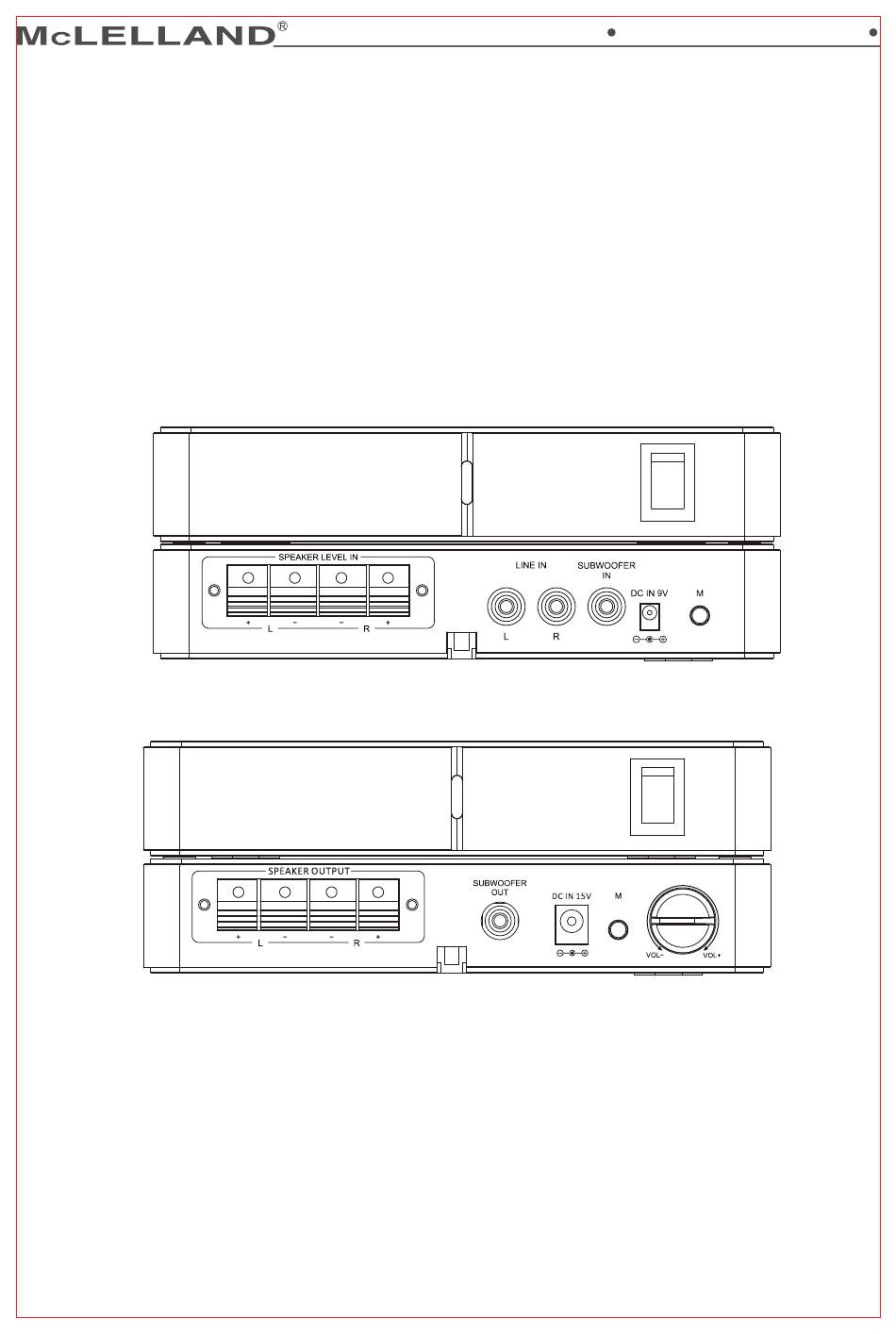

- Page 1 UWA-S5 5.8G Wireless Audio T ransmitter/Receiver (with Amplifier) UWA-S5 TX POWER UWA-S5 RX POWER OWNERS MANUAL...
- Page 2 INSTALL THE TRANSMITTER 1. Make sure your amplifier is off. Connect the transmitter to your amplifier's speaker output terminals with the provided 6-foot speaker wire,matching polarities. Or connect your transmitter to the amplifier's RCA output ports with RCA cables (not included). 2.
- Page 3 PACKAGE CONTENTS ■ Transmitter ■ 9V AC Adapter ■ 15V AC Adapter ■ Receiver ■ Stands (2) ■ User's Guide ■ 6-foot speaker wire (2) FEATURES ■ 5.8GHz digital wireless link provides crystal-clear audio signals. ■ Auto channel selection. ■ Up to 100 feet (30.5m) operation distance between transmitter and receiver (line of sight).
- Page 4 LED INDICATOR POWER ON/OFF If you need to mount the receiver on a wall, install it against the wall in such a way that the ventilation slots are not blocked. To optimize the reception performance, place the transmitter and receiver in the same orientation. USE YOUR SPEAKER KIT 1.
- Page 5 CHANGE THE CHANNEL If you experience any interference, press and hold the M button on both units. The units will then automatically pair. ADJUST THE VOLUME BALANCE 1. Power on the transmitter and receiver, and then turn on the amplifier and adjust it to your normal listening level.
- Page 6 OPTIMIZE YOUR SURROUND SOUND Many surround-sound systems let you adjust the delay between the front and rear speakers. To optimize your setup, adjust the rear speaker delay response by about 20 milliseconds SPECIFICATIONS Audio Output Level: Subwoofer out: 470mv Speaker out: 25W (Load at 4Ω) Input Sensitivity: Line in: 470mV Subwoofer in: 470mV Speakerin: 7 V...
- Page 7 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, used in accordance with the instructions, may cause harmful interference to radio communications.
