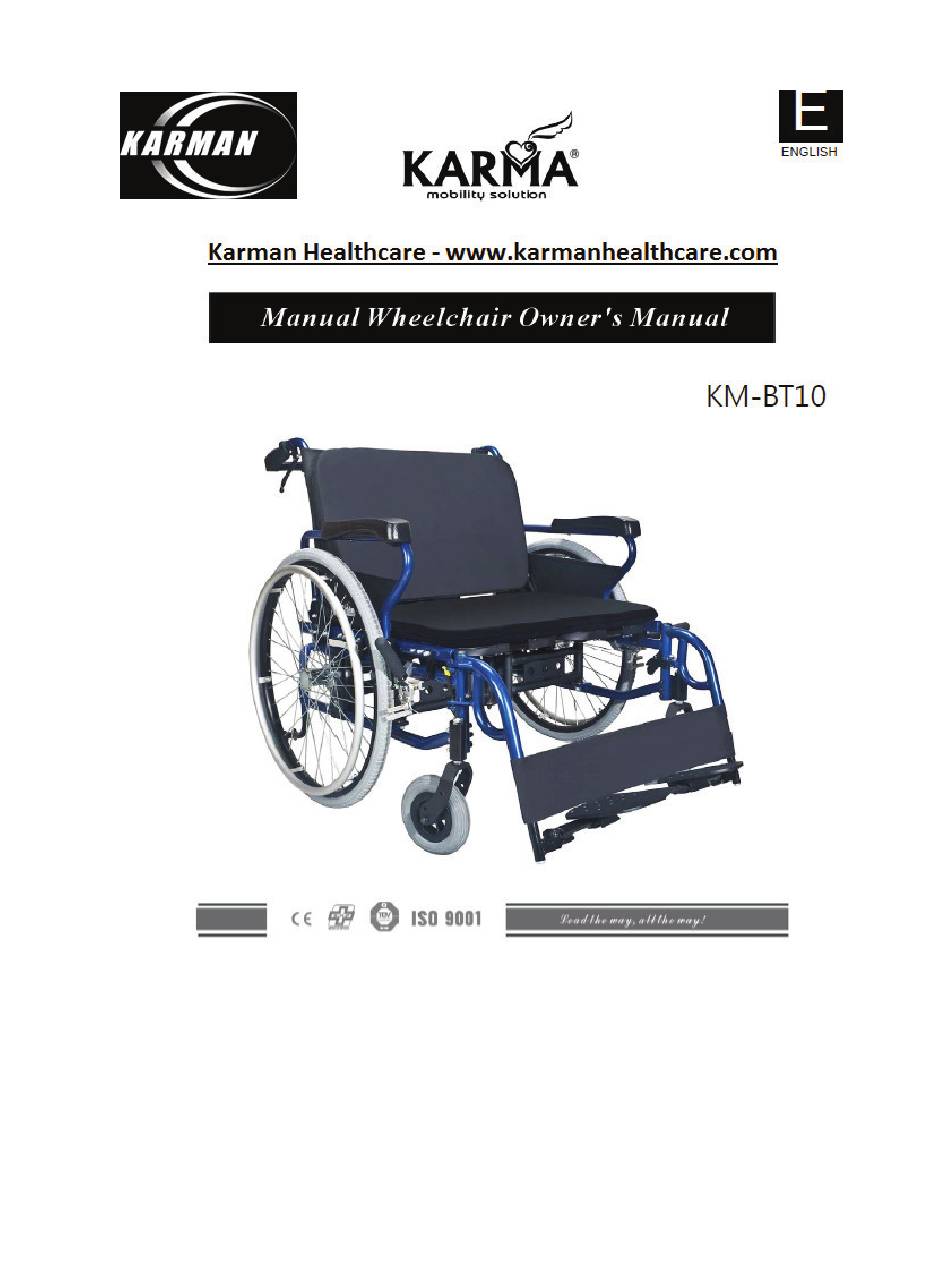

Karman KM-BT10 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM-BT10 and is the answer not in the manual?

Questions and answers

Related Manuals for Karman KM-BT10

Summary of Contents for Karman KM-BT10

  • Page 3 Due to the change of design, some illustrations and pictures in this owner's manual may correspond to the wheelchair that purchased. KARMAN reserves the right to make design modifications without further notice. WARNING: z Do not operate this wheelchair before first reading and understanding this owner’s manual.
  • Page 4 YOU AND YOUR KARMAN SERVICE PROVIDER z No tools are required for assembly. Your wheelchair must be installed from your authorized KARMAN dealer, who is also your service provider. Unauthorized repairs, upgrades and add-ons will nullify your warranty and may lead to injury. Any adjustment for the rear wheel position should be carried out from your authorized KARMAN service provider, who has the necessary service/maintenance manual for your wheelchair.
  • Page 5 KARMAN guarantees, maintenance and parts you should have to pay for. z KARMAN does have an official list of service providers on our website. Please contact your authorized KARMAN dealer for service. If you can’t contact your dealer, please try to find another ones.

  • Page 6: Table Of Contents

    2.3 MAXIMUM USER WEIGHT LIMIT............4 2.4 LABELLING ..................5 3. INTENDED USE & PARTS ..............6 3.1 INTENDED USE .................6 3.2 KM-BT10 Parts Description ..............7 4. OPERATION .....................8 4.1 Preparing For Use .................8 4.2 Transferring In and Out................. 20 4.3 General Use ................... 22 5.

  • Page 7: Preface

    1.3 This owner's manual is written for KARMAN wheelchair: KM-BT10. 1.4 The symbols used in this manual are explained below. Pay special attention to the parts marked with them.

  • Page 8: Safety

    CAUTION: z For safety, KARMAN has installed the safety belts, anti-tippers to avoid any risk due to the user’s movement in the wheelchair or other environmental factors that might cause the wheelchair to tip or the person on the wheelchair to fall off (e.g. amputee). Besides, KARMAN also recommends you choose additional accessories for safety enhancement.
  • Page 9 Figure 2.1 Figure 2.2 2.2.3 NAVIGATING INCLINES 2.2.3.1 Always navigate inclines with an attendant as far as possible. 2.2.3.2 When pushing a wheelchair, the attendant must go straight up a slope. If needing to go down, the attendant must walk backwards until the user is on level ground.

  • Page 10: Maximum User Weight Limit

    Regulations outdoors and the guidelines written in this owner’s manual. 2.3 MAXIMUM USER WEIGHT LIMIT 2.3.1 The maximum user weight limit for KM-BT10 is 550lbs. For detail information, refer to section 8. SPECIFICATIONS. 2.3.2 Please note that loads exceeding maximum capacity can damage your wheelchair and cause malfunctions, which leads to a safety hazard.

  • Page 11: Labelling

    2.4 LABELLING Please carefully read all the labelling on the wheelchair before using it. Don't remove them and protect them for future reference.

  • Page 12: Intended Use & Parts

    (above or below knee, single or double) or other conditions easily maintain their natural centre of gravity, which could avoid tipping over backwards effectively. 3.1.8 There is a kind of armrest in the KM-BT10 for optional: Flip-back & height adjustable armrest.

  • Page 13: Km-Bt10 Parts Description

    3.2 KM-BT10 Parts Description 1. Push Handle 8. Casto 2. Attend Brake 9. Backrest Cushion 3. Side Panel 10. Armrest 4. Rear Wheel 11. Seat Cushion 5. Anti-tippers 12. Calf strap 6. Brake 13. Footplate 7. Cross Brace (Cross Bar)

  • Page 14: Operation

    4. OPERATION 4.1 Preparing For Use 4.1.1 UNFOLDING While unfolding the KM-BT10, follow these instructions as listed below: 4.1.1.1 Stand at the side of the wheelchair as you prefer, hold the armrests and pull outwards. (See Figure 4.1) 4.1.1.2 Put your two hands on the seat pan and press it down until it is fully lowered, be careful not to get your fingers caught.
  • Page 15 Never use the rigidifying push-bar to push or pull the wheelchair, or it may lead to fracture and cause severe injury of the user. 4.1.2 FOLDING While folding the KM-BT10, follow these instructions as listed below: 4.1.2.1 Separate the back and seat cushions from the wheelchair.
  • Page 16 Figure 4.7 Figure 4.8 Figure 4.9 Figure 4.10 Figure 4.11 Figure 4.12 CAUTION: z Be careful not to get your fingers caught when folding the wheelchair.
  • Page 17 4.1.3 ADJUSTMENTS 4.1.3.1 ARMREST 4.1.3.1.1 Standard: FLIP BACK and Detachable armrest Armrest flips back by releasing the knob bolt located at the front base of the armrest. After completing the step, you can lift the armrest backwards. (See Figures 4.13 and 4.14) .
  • Page 18 4.1.3.2 BACKREST 4.1.3.2.1 BACKREST HEIGHT To adjust the backrest height, follow these instructions as listed below: Detach the armrest and backrest upholstery first. Use the tool provided to loosen the screws at the both bottom sides of the backrest frame. Adjust the backrest to the desired height.
  • Page 19 back to the seat. Backrest angle adjustment is now completed. (See Figure 4.19 and 4.20) Figure 4.19 Figure 4.20 4.1.3.3 SEAT 4.1.3.3.1 SEAT DEPTH To adjust the seat depth, follow these instructions as listed below: Remove the two rear wheels, and put the frame down gently.
  • Page 20 Figure 4.21 Figure 4.22 4.1.3.4 REAR WHEEL Your wheelchair could be supplied with quick-release wheels for optional. If so, please follow these instructions as listed below. 4.1.3.4.1 REAR WHEEL REMOVAL To remove the rear wheel, follow these instructions as listed below: Ensure that the brake is in the unlocked position first.
  • Page 21 Figure 4.23 Figure 4.24 CAUTION: z You must make sure that the axle is fully located in the wheelchair bracket and that the ball bearings are fully open and have positively attached the wheel in the frame. z The rear wheel can be mounted at different positions on the frame to alter the seat height and overall stability of the chair.
  • Page 22 4.1.3.5.3 The footplate height must be more than 5cm. From the ground level (See Figure 4.25) Figure 4.25 4.1.3.6 ELEVATING FOOTREST OPTIONAL 4.1.3.6.1 You can elevate the footrest directly and stop anywhere you desired. (See Figure 4.26) 4.1.3.6.2 When you want to go down, press the release lever. (See Figure 4.27) 4.1.3.6.3 To adjust footplate height use the tool provided to loosen the bolt at the side of the footrest...
  • Page 23 4.1.3.7 FOOTPLATE 4.1.3.7.1 HEIGHT To adjust the footplate height, follow these instructions as listed below: Use the tool provided to loosen the bolt at the end of the footrest arm. Adjust to required height and tighten. (See Figure 4.30) Make sure that the footplate height is adjusted properly according to the user’s calf length to reduce pressure on the body.
  • Page 24 4.1.3.8 SAFETY BELT To adjust the safety belt, follow these instructions as listed below. 4.1.3.8.1 For KM-BT10, safety belt is the standard equipment. 4.1.3.8.2 To adjust the length of the safety belt, identify the required length. 4.1.3.8.3 Push the two parts of safety belt through the buckle to make the safety belt longer or shorter.
  • Page 25 4.1.3.8.7 KM-BT10 also provides the extension safety belt part to suit the user who has a large body type, just follow the previous step and you can easily attach them. (See Figure 4.36) Figure 4.34 Figure 4.35 Figure 4.36 SUGGESTION: •...

  • Page 26: Transferring In And Out

    SUGGESTION: z Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult with your KARMAN dealer. WARNING: z Don't put anything on the wheelchair while it is in storage. Storing goods on a folded wheelchair will cause damage and is not covered under warranty.
  • Page 27 4.2.1.2 Turn the footplates up and swing them to the side. 4.2.1.3 Lower the user into the seat, allow them to use the armrests for support. 4.2.1.4 Turn the footplates back down, so that the user can place feet on them. 4.2.1.5 Ensure that the heels rest against the heel supports to prevent direct contact from the castors.

  • Page 28: General Use

    Figure 4.39 Figure 4.40 Figure 4.41 4.3 General Use 4.3.1 ATTENDANT PUSHING AND SELF PROPELLING 4.3.1.1 Ensure that the brakes are always locked when the chair is not being pushed. (See Figure 4.41) 4.3.1.2 Always make sure that both feet are safely on the footplates and that clothing is safely tucked out of the way and cannot get caught in the wheels.
  • Page 29 Figure 4.44 Figure 4.45 4.3.1.6 Always be careful not to go too fast or turn too quickly and try to achieve a smooth steady ride. 4.3.1.7 Before crossing the road, please stop completely and look both ways. 4.3.1.8 Cross tracks or ruts at right angles to avoid your castors getting stuck.
  • Page 30 4.3.4.1.2 Move the wheelchair slowly and carefully forwards while tilting it back slightly. Be ready to take the weight when the rear wheels cross the kerb edge. Ensure that both rear wheels touch the ground at the same time to avoid tipping the wheelchair.
  • Page 31 Please note that for safety's reason we don’t recommend using this method. CAUTION: z As KM-BT10 is designed for people of significant size and weight, we recommend the attendant to use lift instead of going up and down by stairs.

  • Page 32: Inspection And Maintenance

    5.1.9 Inspect brakes for proper operation. 5.1.10 The wheels and tyres should be checked periodically for cracks and wear, and should be replaced by a qualified technician. 5.1.11 A qualified technician can be found with an authorized KARMAN dealer. CAUTION: z Visit a KARMAN wheelchair dealer for inspection and maintenance if you find anything abnormal.
  • Page 33 A maintenance/service fee may apply. SUGGESTION: z Even if you don't use the vehicle for a long time, the wheelchair should still be maintained annually. ITEM WEEKLY MONTHLY GENERAL z Wheelchair rolls straight (no excessive drag or pull to one side) FRAME AND CROSS BARS z Inspect frame...
  • Page 34 TIRES z Inspect for flat spots, cracks and wear z If pneumatic tyres, check for proper inflation. For KM-BT10, the pneumatic tyre pressure is 35-45psi (240-310kPa) z Check tyre tread depth is more than 1mm z Check tyre pressure; tyre pressures are located on...

  • Page 35: Accessories

    Height adjusts from 130cm (51") back of wheelchairs. to 200cm (78"). z Attaches to all KARMAN manual wheelchairs. z Folding Drink Holder z Seat Cushion z Collapses and adjusts to the size z Seat Height 7.5cm (3") of the container (6-10cm).

  • Page 36: Troubleshooting

    Check castor bracket angle Squeaks and Rattles z Check for loose nuts and bolts z Check for loose nuts and bolts Looseness in Chair If you cannot solve the problem by yourself, contact your KARMAN wheelchair dealer for help.

  • Page 37: Specifications

    8. SPECIFICATIONS MODEL KM-BT10 DESCRIPTION 1210 Overall Length (mm) Overall Width (mm) 865-915 Overall Height (mm) 31.8 Total Weight (kg) 26 (22, 24, 28, 30) Seat Width (inch) (Adjustable) 20 (18, 20, 24) Seat Depth (inch) (Adjustable) 16.5 Seat Height (inch)

  • Page 38: Cleaning & Recycling

    9. CLEANING & RECYCLING 9.1 CLEANING 9.1.1 In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow. 9.1.2 If possible, don't use your wheelchair in the conditions as mentioned above.

  • Page 39: Warranty

    (a repair of this kind will hereafter be called warranty repair). Warranty repairs can be carry out by authorized KARMAN wheelchair dealers only. KARMAN is not responsible for the transportation costs for repair and replacement. Replaced parts will be the property of KARMAN. 10.2.1.2 WARRANTY DURATION...
  • Page 40 Problems arising due to lack of inspection and/or maintenance as outlined in Section 5 of this owner’s manual. Installation or use of parts not manufactured by KARMAN. Damage or surface corrosion from environmental factors such as airborne fallout (chemicals, tree sap, debris and so on), and...
  • Page 41 KARMAN wheelchair dealership where the wheelchair was purchased. 10.2.6 TRANSFER OF WARRANTY RIGHTS If you purchase a second-hand KARMAN wheelchair while it is still in the warranty period, bring the owner’s manual and the wheelchair to the dealership where the wheelchair was...
  • Page 42 10.2.7 WARRANTY FORM (YOU MAY PHOTOCOPY THIS FORM) FULL NAME: Male Female GENDER: MM/ DD/ YYYY DATE OF BIRTH: ADDRESS: KARMAN KM-BT10 MODEL: SERIAL NUMBER: MM/ DD/ YYYY DATE OF PURCHASE: PURCHASER SIGNATURE: 10.2.8. DEALER’S DATA NAME OF STORE: TELEPHONE AND ADDRESS: If you have any suggestions on how to improve our products, please don’t hesitate to contact your local dealer to let us know what you...
