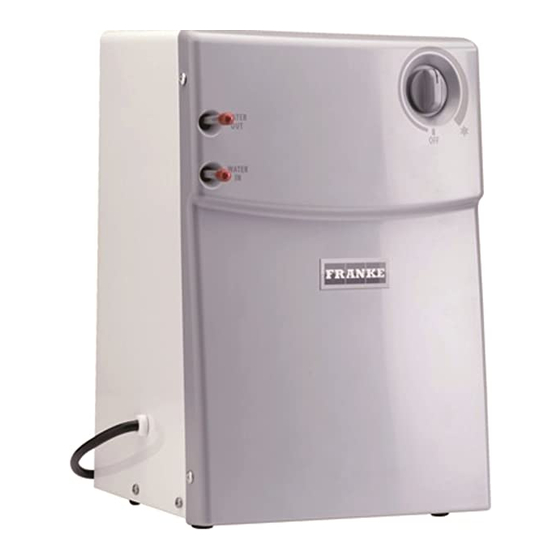

- Page 1 INSTALLATION MANUAL CT-200...
- Page 2 ASSISTANCE OR SERVICE If you need assistance or service, first see “Troubleshooting” section. Additional help is available by calling 1-800-626-5771 or write: Franke Kitchen Systems Luxury Products Group 800 Aviation Parkway Smyrna, TN 37167 Please include a daytime phone number in your correspondence.
-
Page 3: Technical Data
Use of any sealing compounds will VOID THE PRODUCT WARRANTY. This chiller is not a water purifier. For water purification, Franke separately offers and strongly recommends using the chiller with our line of professional under counter filtration products to enhance water quality, and improve performance and durability of the chiller. -
Page 4: Location Requirements
A cold water supply with a minimum pressure of 30 psi and a maximum pressure of 100 psi must be available to the chiller. It can come directly from the water supply of the home, or from a water filtration system. A Franke filtration system is highly recommended. INSTALLATION INSTRUCTIONS IMPORTANT: For subsequent steps, it will be required to cut and route tubing to fit the specific application in... - Page 5 CT-200 Under Sink Chiller Unit Installation Instructions and Use and Care Guide INSTALLATION INSTRUCTIONS The following instructions pertain to the connection of this chiller to a Franke filtration system and Franke Little ® Butler series dispensing faucets. The connection options for all compatible Franke products will be reviewed in this document.
- Page 6 Install a suitable drinking water dispensing faucet (sold separately) per the instructions. The following ® steps outline how the chiller is to be connected to a Franke COLD ONLY Little Butler dispensing faucet. Any other faucet may require additional steps or hardware to install.
- Page 7 CT-200 Under Sink Chiller Unit Installation Instructions and Use and Care Guide Connect the 1/4" tubing (3) from the “water out” tee push fitting (2) from the chiller (1) to the faucet (4). This step will vary, based on dispensing faucet being connected. Identify the...
- Page 8 (8). Connect another piece of 3/8" tubing from the other outlet of the tee push fitting (10) to the cold water supply of the home (5). Franke recommends using a 10306 shut-off valve (9) that allows for connection directly to the kitchen...
- Page 9 CT-200 Under Sink Chiller Unit Installation Instructions and Use and Care Guide SETUP OF CHILLER WITHOUT THE FILTRATION SYSTEM IMPORTANT: The check valve helps to avoid the possibility of excessive pressure building as the chiller cycles on and off. If you are NOT installing the chiller with a filtration system, do NOT use tee push fitting (2), check valve (11), or tee push fitting (10) illustrated in step 7.
-
Page 10: Troubleshooting
CT-200 Under Sink Chiller Unit Installation Instructions and Use and Care Guide MAINTENANCE DISCONNECTING AND STORAGE 1. Unplug the chiller. 2. Shut off water supply to chiller. 3. Open faucet to release pressure. 4. Disconnect the water lines attached to the chiller by depressing collet on push fittings. -
Page 11: One-Year Limited Warranty
CT-200 Chiller unit that proves to be inoperative due to a defect in material or workmanship under normal use, for a period of one (1) year from the date of purchase. This warranty will be honored provided the CT-200 Chiller unit has been installed and operated in accordance with the written instructions furnished with the CT-200 Chiller unit. - Page 12 Part No. INST-CT-200 Franke Kitchen Systems Print 6/2015 Luxury Products Group 800 Aviation Parkway © 2015 Franke Consumer Products, Inc. Smyrna, TN 37167 All rights reserved. Printed in USA. 800-626-5771 www.frankeksd.com...
