- Page 1 WHB04B-4:4 WHB04B-4:4 axis,wireless handwheel WHB04B-6:6 WHB04B-6:6 axis,wireless handwheel...
- Page 2 ,support 10 macro function button...

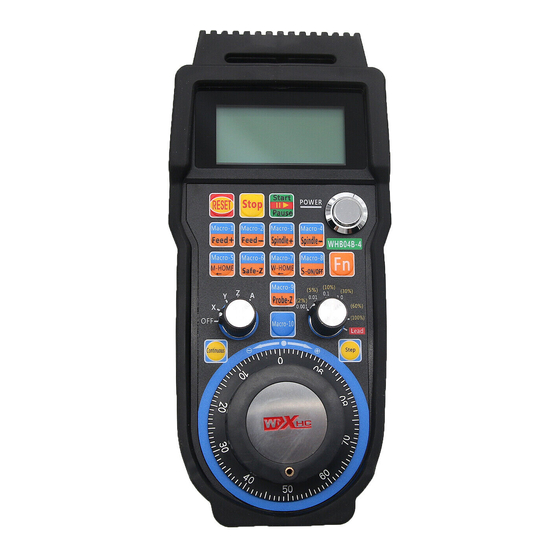

- Page 5 RESET button Stop button Start/Pause button:When machine stops,press the button,machine starts to work ;When machine is working, press the button,machine stop working Macro-1/Feed+ button:When press the button alone,macro function-1 works; When press the ,Processing speed increase. Macro-2/Feed- button:When press the button alone,macro function-2 works;...
- Page 6 Macro-3/Spindle- button:When press the button alone,macro function-3 works; When press the ,Spindle speed increases. Macro-4/Spindle- button:When press the button alone,macro function-4 works; When press the ,Spindle speed reduction. Macro-5/M-HOME button:When press the button alone,macro function-5 works; When press the ,refer all home. Macro-6/M-HOME button:When press the button alone,macro function-6 works;...
- Page 7 Macro-7/W-HOME button:When press the button alone,macro function-7 works; When press the ,go to zero work . Macro-8/S-ON/OFF button:When press the button alone,macro function-8 works; When press the ,Spindle on or off. Macro-9/ probe-Z button:When press the button alone,macro function-9 works; When press the ,probe Z Macro-10 button:press the button,macro...
- Page 8 MPG button:press the button,Hand wheel into Continuous mode. Step button: press the button,Hand wheel into Step mode 0.001（2 0.01(5%) 0.1(10%) 1.0(30%) 100% Lead:...
- Page 9 Selection speed： 0.001（2%）:When handwheel in Step mode,move unit 0.001;when in Continuous mode,move speed is 2% 0.01(5%):When handwheel in step mode,move unit 0.01;when in Continuous mode,move speed is 5% 0.1(10%):When handwheel in step mode,move unit 0.1;when in Continuous mode,move speed is 10% 1.0(30%):When handwheel in step mode,move unit 1.0;when in Continuous mode,move speed is 30%...
- Page 10 Mode： CON：Continuous Step:Step...
- Page 11 Explantion： Key success indication:When you press the button,the receiver receives the key value,the indicator flashes about,indicating successful key operation. Speed indicator :When you press MPG button,band switch to select 2%,5%...,LCD display CON and different speed.When you press Step button,band switch to select 0.001,0.01...,LCD display Step and different speed.
- Page 13 Plugin instructions Open Mach3 and go to the “Config”menu choice and select “Config Plugins”.You should see “ShuttlePro-V3xx-XHC- HB04BX-FOR-MACH3”,Click the “CONFIG” in yellow and macro button function as you wish. -12-...
- Page 14 Plugin instructions 2.After Click the yellow"CONFIG",there will be plug-in settings interface,According to the following method set. -13-...
- Page 15 Plugin instructions First step:Click the Macro-1 drop-down menu button,choice “Custom Macro#1”, Macro-2 choice "Custom Macro#2", And so on.Click Macro-9 drop-down menu button,choice “OEM Custom Code#1”, Macro-10 choice “OEM Custom Code#2”. Second step:In the following “Macro Number ” input M code you need.Macro-1 corresponds to Macro number 1. and so on.
