AVALON_Navi_U (L/O 0205)

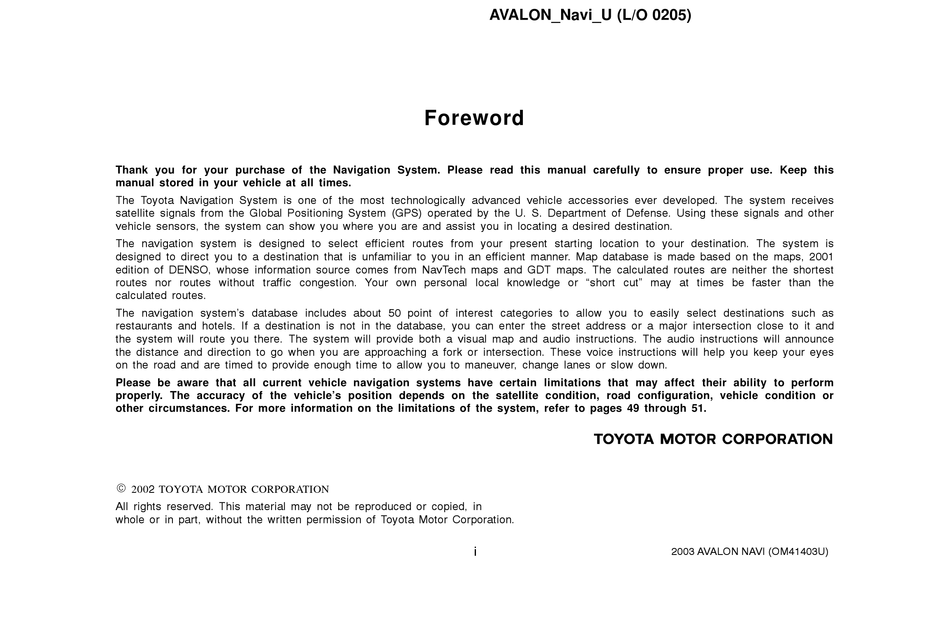

Foreword
Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this
manual stored in your vehicle at all times.
The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives
satellite signals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other
vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
The navigation system is designed to select efficient routes from your present starting location to your destination. The system is
designed to direct you to a destination that is unfamiliar to you in an efficient manner. Map database is made based on the maps, 2001
edition of DENSO, whose information source comes from NavTech maps and GDT maps. The calculated routes are neither the shortest
routes nor routes without traffic congestion. Your own personal local knowledge or "short cut" may at times be faster than the
calculated routes.
The navigation system's database includes about 50 point of interest categories to allow you to easily select destinations such as
restaurants and hotels. If a destination is not in the database, you can enter the street address or a major intersection close to it and
the system will route you there. The system will provide both a visual map and audio instructions. The audio instructions will announce
the distance and direction to go when you are approaching a fork or intersection. These voice instructions will help you keep your eyes
on the road and are timed to provide enough time to allow you to maneuver, change lanes or slow down.
Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform
properly. The accuracy of the vehicle's position depends on the satellite condition, road configuration, vehicle condition or
other circumstances. For more information on the limitations of the system, refer to pages 49 through 51.
E
2002 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of Toyota Motor Corporation.
i
2003 AVALON NAVI (OM41403U)

Advertisement

Table of Contents
loading

Related Manuals for Toyota Avalon 2003

Summary of Contents for Toyota Avalon 2003

  • Page 1 The Toyota Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite signals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other vehicle sensors, the system can show you where you are and assist you in locating a desired destination.
  • Page 2 You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equip- ment. 2003 AVALON NAVI (OM41403U)
  • Page 3 AVALON_Navi_U (L/O 0205) Please read it and follow the instruc- tions. If a screen other than for the navigation system is displayed, the current screen would change to the “CAUTION” screen pushing “MAP/VOICE” “MENU” “DEST” button on the navigation controller. “ENT”...
  • Page 4 AVALON_Navi_U (L/O 0205) Safety Instruction Before attempting to use this system while you are driving, learn how to use it and CAUTION become thoroughly familiar with it. Read For safety, the driver should not the entire “Navigation System Owner’s Manual” to make sure you understand the operate the navigation system while he/she is driving.
  • Page 5 AVALON_Navi_U (L/O 0205) The data in the system may occasionally be incomplete. Road conditions, including driving restrictions (no left turns, street closures, etc.) frequently change. There- fore, before you follow any instruction from the system, look to see whether you can comply with the instruction safely and legally.
  • Page 6 AVALON_Navi_U (L/O 0205) Display, symbols and switches Current vehicle position mark North−up symbol and scale of map To indicate the current position, Indicates north on the map. The figure see page 35 for details. also indicates the map scale. For details, see pages 46 and 47.
  • Page 7 AVALON_Navi_U (L/O 0205) Changing the map Changing the map direction and Point NZ02626 NZ02622 direction of Interest display on the right screen When the dual screen is displayed, the When the map display is shown on the left screen can be switched to “North− dual screens, select this to call out the up”/“Heading−up”.
  • Page 8 AVALON_Navi_U (L/O 0205) Controller and buttons SURFACE BACKSIDE “MAP/VOICE” button Push this button to “DEST” button repeat a guidance Push this button to display the destination voice, cancel the map screen. For details, see page 9. scroll and start a Signal output guidance.
  • Page 9 AVALON_Navi_U (L/O 0205) INFORMATION Under extremely cold conditions, the map may not be displayed and the data input by a user may be deleted. Also, the buttons may be harder than usual to depress. 2003 AVALON NAVI (OM41403U)

  • Page 10: Table Of Contents

    AVALON_Navi_U (L/O 0205) SECTION BASIC FUNCTIONS Descriptions of basic operations in frequent use Your navigation system ........Inputting letters and numbers .

  • Page 11: Your Navigation System

    AVALON_Navi_U (L/O 0205) Your navigation system Your navigation system can be operated by the navigation controller when the ignition switch is in the “ACC” or “ON” position. With bucket type front seat—The controller is located beside the automatic transmis- sion selector lever. 1NO103 With bench type front seat—The controller is located on the front armrest.
  • Page 12 AVALON_Navi_U (L/O 0205) The controller can be removed from its original position, and be used as a wireless remote controller. To use it as a remote controller, direct the signal output portion of the controller to the signal reception portion of the display. 1NO104 1NO105 CAUTION...
  • Page 13 Dispose of used batteries according After replacing battery, check that the con- to the local laws. troller operates properly. If the controller still does not operate properly, contact Replace the batteries by the following pro- your Toyota dealer. cedures: 2003 AVALON NAVI (OM41403U)

  • Page 14: Inputting Letters And Numbers

    AVALON_Navi_U (L/O 0205) Inputting letters and numbers— Selecting “List” switch To input letters and/or numbers, move NOTICE screen, the screen will be changed to dis- the select and scroll lever to the 8 di- play the database items that match the z Make sure the positive side and rections, and when the letter or number name or address that you have entered...
  • Page 15 AVALON_Navi_U (L/O 0205) —Inputting with numeric keypad You can input letters and numbers or select the displayed numbers with the numeric keypad of the controller. To use the numeric keypad, open the lid. The keypad is linked with 3 types of screen, and the inputting mode of the key- pad changes as follows: INPUTTING NUMBER MODE...
  • Page 16 AVALON_Navi_U (L/O 0205) Inputting numbers are assigned to each Inputting letters change according to how INPUTTING LETTER MODE button of the keypad as follows: many times the button is pushed. For ex- ample, if you want to input “B”, push the Buttons Inputting number “2”...
  • Page 17 AVALON_Navi_U (L/O 0205) Inputting letters are assigned to each button of the keypad as follows: SELECTING PRESET NUMBER MODE Inputting letters Buttons Alphabet Diacritics Number — — A³B³C À³Á³Â³Ã³Ä³Å³Æ³Ç D³E³F È³É³Ê³Ë G³H³I Ì³Í³Î³Ï J³K³L — When the above screen appears on the display, you can select a number with the M³N³O ѳҳӳԳճֳØ...

  • Page 18: How To Move The Cursor

    AVALON_Navi_U (L/O 0205) How to move the cursor Destination input Push the “DEST” button on the naviga- tion controller and the “Destination” screen appears. 1. Move the cursor to the desired 2. In case of making the position indi- point by operating the select and cated by the cursor on the dis- “ENT”...
  • Page 19 AVALON_Navi_U (L/O 0205) United States of America Oklahoma Idaho Texas Oregon Illinois Washington Indiana California Kentucky Neveda Michigan Arizona Ohio Select an area by the select and scroll Colorado Winsconsin lever to select the search area and the Montana Alabama destination screen returns.
  • Page 20 AVALON_Navi_U (L/O 0205) 2. By POI (Point of Interest): You can CANADA Connecticut select one of the many points of inter- Alberta Maine est that have been already stored in the system’s database. There are 54 British Columbia Massachisetts categories to choose from including Manitoba New Hampshire restaurants, hotels and so on.
  • Page 21 AVALON_Navi_U (L/O 0205) 7. By Previous Starting Point: You can D To select an “Address”, “Point of INFORMATION enter a point where the system has interest”, “Freeway Ent./Exit” or “In- started to guide last time. See page 27 D When inputting the destination, the tersection”...
  • Page 22 AVALON_Navi_U (L/O 0205) Destination input by (a) Inputting a street name ADDRESS “Address” Select the switch on the “Destination” screen. “Address” screen appears, and then you can input a house number. After each letter is inputted, the system There are 2 ways to input a destination searches the database for street names by address.
  • Page 23 AVALON_Navi_U (L/O 0205) If you input a street name first, the screen If the above screen appears, you can se- When find your desired street changes. You can then input the house lect an address range on that screen. name, select of the item.
  • Page 24 AVALON_Navi_U (L/O 0205) (b) Inputting a city name The screen for selecting the last 5 towns NOTICE appears if you select the switch “City” on the “Address” screen on page 13. Under the initial condition, town name will not be displayed. “All cities”: All cities are selected.
  • Page 25 AVALON_Navi_U (L/O 0205) Destination input by POI (Point of Interest) There are 3 ways to select a point of interest location (POI). (a) Input the name of the point of inter- est directly. (b) Inputting a city name first. (c) Selecting from the points of interest categories.
  • Page 26 AVALON_Navi_U (L/O 0205) (a) Input the name of the point of interest directly (b) Inputting a city name “POI” “City” Select the (Point of interest) Select the switch on the “POI” switch on the “Destination” screen. (Point of interest) screen. Select the of your desired destina- tion.
  • Page 27 AVALON_Navi_U (L/O 0205) (c) Selection from the point of interest categories “Input city name”: The screen for input- “Category” Select the switch on the ting the city name appears. “POI” (Point of interest) screen. When you select the of your de- sired category, the screen changes and displays the previous screen.
  • Page 28 AVALON_Navi_U (L/O 0205) Once you have selected a category, select When you select the of your de- In case of having some POIs of the same letters directly on the screen to input a sired item, the screen changes and dis- name, this screen appears.
  • Page 29 AVALON_Navi_U (L/O 0205) List of points of interest CONTINENTAL RESTAURANT MEXICAN JAPANESE SEAFOOD CHINESE Select the switch to display the “Info.” selected destination name, address and telephone number. SHOPPING FRENCH GROCERY STORE ITALIAN GAS STATION OTHER PARKING GARAGE/HOUSE AMERICAN PARKING LOT 2003 AVALON NAVI (OM41403U)
  • Page 30 AVALON_Navi_U (L/O 0205) RENTAL CAR AGENCY AMUSEMENT PARK LIBRARY TOYOTA DEALERSHIPS SPORTS COMPLEX HOSPITAL LEXUS DEALERSHIPS CASINO PARK/RECREATION AUTOMOBILE CLUB MARINA CIVIC/COMMUNITY CENTER AUTO SERVICE & CONVENTION/EXHIBITION TOURIST ATTRACTION MAINTENANCE CENTER HOTEL WINERY COURT HOUSE GOLF COURSE CITY HALL TRAIN STATION...
  • Page 31 AVALON_Navi_U (L/O 0205) Destination input by MARKED POINTS “Marked points” Selecting BUS STATION MUSEUM switch on the “Destination” screen dis- plays your list of registered marked points. (Refer to pages 66 through 70 on “Registering”, “Editing” or “Delet- COMMUTER RAIL STATION BANK ing”...
  • Page 32 AVALON_Navi_U (L/O 0205) Destination input by Destination input by PREVIOUS DESTINATION EMERGENCY Sort by “Icon”: Select this switch to list “Previous destination” “Emergency” Select the selecting the marked points by using the registered switch on the “Destination” screen. switch on the “Destination” screen, the icon.
  • Page 33 AVALON_Navi_U (L/O 0205) Destination input by INTERSECTION “Intersection” Select the switch on INFORMATION the “Destination” screen. In an area which has not been regis- tered for route guidance, the naviga- tion does not guide. The distance from your current position up to the destination is displayed on the right of the name.
  • Page 34 AVALON_Navi_U (L/O 0205) Destination input by FREEWAY ENTRANCE or EXIT To input a freeway entrance or exit, se- “Freeway Ent./Exit” lect switch on the “Destination” screen. EMV3111U Select the of your desired item. After inputting intersecting streets, the screen changes and dis- plays the map location of the selected Be sure to use the complete name of the destination and the route preference.
  • Page 35 AVALON_Navi_U (L/O 0205) There are 2 ways to list the freeway entrance or exit. “Dist. sort”: Select this switch to list the entrances or exits in order of distance from your current location. Choose the desired freeway by select- Select the of your desired entrance ing the or exit name.
  • Page 36 AVALON_Navi_U (L/O 0205) Destination input by Destination input by MAP Destination input by HOME PREVIOUS STARTING POINT “Prev. start point” “Map” Select Select the switch on the “Des- switch on the “Destination” screen. tination” screen. The screen changes and displays the map location of the previous starting point and the route preference.

  • Page 37: Entering Destination

    AVALON_Navi_U (L/O 0205) Destination input by Entering destination PRESET DESTINATION After you input the destination by one of the 11 methods, the screen changes and displays the map location of the selected destination and the route pref- erence. Select one of the —...
  • Page 38 AVALON_Navi_U (L/O 0205) If you want to set a preferred road point Route preference: between the starting point and the destina- To change the conditions of the route tion or change the search condition, push preference. “ENT” button on the navigation con- “Edit route”...
  • Page 39 AVALON_Navi_U (L/O 0205) “3 routes” “Time & distance” Select the switch. Choose one from the three routes. Select switch to display the time and distance “3 Routes”: You can choose your route “Quick”: A route on which you can reach list.

  • Page 40: Route Guidance Screen

    AVALON_Navi_U (L/O 0205) Route guidance screen The route guidance system displays two different screen modes. Split screen: Map and guidance screen When screen with switch: are shown in a screen mode like the “ENT” on the navigation controller is above. (For details about guidance screen, pushed while the map is displayed, the Single screen: Only map is shown in a see page 33.)
  • Page 41 AVALON_Navi_U (L/O 0205) “Mark”: Select this switch for quick regis- INFORMATION tration of the marked point. (For details, see page 71.) D The distance to your destination ap- “Guide”: When POI icons are displayed pears on the left of the screen. on the map, select this switch, and the D The time to your destination can name of a POI icon near the cursor is...

  • Page 42: Guidance Screen

    AVALON_Navi_U (L/O 0205) Guidance screen Map appearance The right half of the screen can be Split screen near the exit of the free- You can set the map mode and guid- used as a guidance screen. way. ance mode. See also “Route guidance screen” on page Split screen near the intersection.
  • Page 43 AVALON_Navi_U (L/O 0205) Arrow screen Turn list screen 2. It changes to the “Map appearance” screen and you can select the “Guid- This screen shows the current road name The screen shows the “turn list” like the ance mode”. and the distance to the next corner. above.

  • Page 44: Current Position Display

    AVALON_Navi_U (L/O 0205) Current position display Map screen INFORMATION When you use the map scroll feature, the current vehicle position mark may disappear from the screen. Move the map again with map scroll or push “MAP/VOICE” button to return to the current vehicle position map location display.

  • Page 45: Voice Guidance

    AVALON_Navi_U (L/O 0205) Voice guidance The current street name will be displayed You can use voice guidance while driv- in the bottom of the screen when the ing to the destination. setting of the current street name is on. You can adjust the volume of the voice or In some areas, the roads have not been turn off voice guidance.

  • Page 46: Typical Voice Guidance Prompts

    AVALON_Navi_U (L/O 0205) Typical voice guidance prompts “Adaptive To turn the system of the INFORMATION volume control” on, select the switch. The indicator will be highlighted. freeways, interstates other highways with higher speed limits, SSNU187 the voice guidance will be made at earlier points than on city streets in order to allow time to maneuver.
  • Page 47 AVALON_Navi_U (L/O 0205) EMV3114U SSNU188 EMV3115U ∗ The system announces your approach to : The system indicates a U−turn if the “Proceed about 4 miles to the the final destination. distance between two one−way roads (of traffic circle.” opposite directions) is less than 15 m (50 “Your destination is ahead.”...

  • Page 48: Registration Of Your Home

    AVALON_Navi_U (L/O 0205) Registration of your home If you register your home address be- INFORMATION forehand, you can easily set the route D Voice guidance may be made early back to your home. or delayed. D If the system cannot determine the current position correctly, you may not hear voice guidance or may not see the magnified intersection on...
  • Page 49 AVALON_Navi_U (L/O 0205) DELETING YOUR HOME The screen changes and displays the map You may register the location of your location of the home and a message. If home by some different methods: cur- “MENU” 1. Push the button on the rent position, address, map location, you are sure, select the “Yes”...

  • Page 50: Detour Setting

    AVALON_Navi_U (L/O 0205) Detour setting When you are driving while the route guidance is operating, you can change the route to detour around a section of the route where a delay is caused by road repairs, an accident, etc. EMV3065U When you select the “Chg.

  • Page 51: Displaying Points Of Interest

    AVALON_Navi_U (L/O 0205) Displaying points of interest “Whole route”: If you select this switch, Points of interest such as gas stations the system will calculate an entire new and restaurants can be displayed on route to the destination. the map screen. You can also set their location as a destination and use them INFORMATION for route guidance.
  • Page 52 AVALON_Navi_U (L/O 0205) “Local POI list”: Select this switch while selecting some categories of POI. The “Local POI list” screen will appear with a list of the points within 20 miles (32 km). Sort by “Icon”: Select this switch to list the points of interest in order of the type of symbol.
  • Page 53 AVALON_Navi_U (L/O 0205) The name of the point of interest is dis- Setting a POI as a destination played at the top of the screen. You can You can select one of the points of select the other POI icon on the displayed interest icons on the map screen as a map.

  • Page 54: Turn List

    AVALON_Navi_U (L/O 0205) Turn list You can change from the map screen to a “Turn list” screen that displays the list of the roads up to your destination. This list can be used for a route guid- ance. When there are 2 screens displayed, se- 2.

  • Page 55: Map Scale

    AVALON_Navi_U (L/O 0205) Map scale You can scroll through the list of roads. INFORMATION However, not all road names in the route may appear on the list. If a road changes D The current vehicle position mark its name without requiring a turn (such as appears at the bottom of the screen on a street that runs through two or more next to the name of the street you...

  • Page 56: Screen Scrolling

    AVALON_Navi_U (L/O 0205) Screen scrolling Orientation of the map After scrolling the screen, the map re- mains centered at the selected location until you push the but- “MAP/VOICE” ton. The current vehicle position mark will continue to move along your actual route and may move off the screen.
  • Page 57 AVALON_Navi_U (L/O 0205) “North−up” symbol Regardless of the direction of vehicle trav- el, the north is always up. “Heading−up” symbol The direction of the vehicle travel is al- “Map orient” 2. When the at the ways up. A red arrow indicates the north. right side of the screen is selected, the orientation of the map screen is switched...

  • Page 58: Limitations Of The Navigation System

    AVALON_Navi_U (L/O 0205) Limitations of the navigation system This navigation system calculates the current vehicle position using satellite signals, various vehicle signals, map data, etc. However, an accurate position may not be shown depending on the satellite condition, road configuration, vehicle condition other...
  • Page 59 AVALON_Navi_U (L/O 0205) (a) Accurate current vehicle position may not be shown in the following cases: The GPS satellites may not send signals When driving on a small angled Y− due to repairs or improvements being shaped road. made to them. When driving on a spiral road.
  • Page 60 In automatic rerouting, a detour ing data and is designed to work with route may be shown. factory−specified tires your Toyota. During automatic rerouting, the route Installing tires that are larger or smaller may not be changed. than the originally equipped diameter may The route in a U−turn may be shown...

  • Page 61: Map Database Information And Updates

    AVALON_Navi_U (L/O 0205) Map database information and updates Map database is made based on the There are two types of areas available maps, 2001 edition of DENSO, whose for route guidance. (See the following information source comes from NavTech pages.) In one type of area, primarily maps and GDT maps.
  • Page 62 DVD: To determine which version of the data. Please consult your Toyota dealer database is currently in your vehicle, se- for the latest map information. lect the switch on the “Menu”...
  • Page 63 AVALON_Navi_U (L/O 0205) Route guidance availability DCA01 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 64 AVALON_Navi_U (L/O 0205) Route guidance availability DCA02 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 65 AVALON_Navi_U (L/O 0205) Route guidance availability DCA03 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 66 AVALON_Navi_U (L/O 0205) Route guidance availability DCA04 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 67 AVALON_Navi_U (L/O 0205) Route guidance availability DCA05 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 68 AVALON_Navi_U (L/O 0205) Route guidance availability DCA06 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 69 AVALON_Navi_U (L/O 0205) Route guidance availability DCA07 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 70 AVALON_Navi_U (L/O 0205) Route guidance availability DCA08 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 71 AVALON_Navi_U (L/O 0205) Route guidance availability DCA09 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 72 AVALON_Navi_U (L/O 0205) Route guidance availability DCA11 2000 by NavTech Route guidance available areas Route guidance available for main roads only 2003 AVALON NAVI (OM41403U)
  • Page 73 AVALON_Navi_U (L/O 0205) SECTION ADVANCED FUNCTIONS Descriptions of functions for more effective use Marked points ..........Preset destinations .

  • Page 74: Marked Points

    AVALON_Navi_U (L/O 0205) Marked points (a) Registering marked points You can register and keep your own marked points of interest list (like res- taurants, sports facilities, etc.) and use the marked points to input a destina- tion. A screen similar to that for destination “MENU”...
  • Page 75 AVALON_Navi_U (L/O 0205) The screen to register an icon appears a “With sound” Selecting the switch, INFORMATION couple of seconds later. select your desired sound. When your vehicle approaches the marked point, Up to 100 marked points can be reg- Select your desired icon.
  • Page 76 AVALON_Navi_U (L/O 0205) (b) Editing marked points Once a marked point is registered, you can edit the icon, name or telephone number. “MENU” 1. Push the button on the navigation controller to display the “Menu” screen select “Marked points” switch Operate the select and scroll lever of The screen lists the marked points.
  • Page 77 AVALON_Navi_U (L/O 0205) CHANGING THE ICON CHANGING THE NAME “Change” 3. Select the switch which you want to edit. Select your desired icon. Select alphabet or numeral keys to in- put the name. After you finish your entry, select the switch on the screen.
  • Page 78 AVALON_Navi_U (L/O 0205) (c) Deleting marked points “MENU” CHANGING THE PHONE NUMBER EDITING THE LOCATION 1. Push the button on the (position/map location) navigation controller to display the “Menu” screen select “Marked points” switch Select numeral keys. Operate the select and scroll lever to After you finish your entry, select the move the cursor to the desired...
  • Page 79 AVALON_Navi_U (L/O 0205) (d) Quick marked point registration You can register your current position or any points (See “Screen Scrolling”on page 47.) from the map screen. 1. Move the cursor to the desired point, and if you wish to register “ENT”...

  • Page 80: Preset Destinations

    AVALON_Navi_U (L/O 0205) (a) Registering preset Preset destinations destinations You can set up to 5 destinations before- “MENU” 1. Push the button on the hand. navigation controller to display the “Menu” screen select “Marked points” switch. You can register up to 100 marked points. If you attempt to register more than 100, a message appears for confirmation.
  • Page 81 AVALON_Navi_U (L/O 0205) (b) Editing preset destinations “MENU” 1. Push the button on the 3. Select the switch that you want navigation controller to display the to edit. “Menu” screen select “Marked points” switch. 3. Select the “ ” switch to regis- ter the preset destination you want.

  • Page 82: Area To Avoid

    AVALON_Navi_U (L/O 0205) (c) Deleting preset Area to avoid destinations “MENU” 1. Push the button on the Any areas you want to avoid due to navigation controller to display the traffic jams, construction work or other “Menu” screen select reasons can be registered as avoid “Marked points”...
  • Page 83 AVALON_Navi_U (L/O 0205) (a) Registering area to avoid “Register” 1. Select the switch of INFORMATION the “Area to avoid”. When the above screen is displayed, scale larger than 1/80,000, the message “Position can- not be specified in this scale. Switch to more detailed map.”...
  • Page 84 AVALON_Navi_U (L/O 0205) (b) Editing area to avoid “Edit” 1. Select the switch of the CHANGING THE NAME “Area to avoid” to display the “Edit area to avoid” screen. 3. Select the “Name”, “Location” or “Change area size” on this screen. Select alphabet or numeral keys to in- put the name.
  • Page 85 AVALON_Navi_U (L/O 0205) (c) Deleting area to avoid “Delete” CHANGING THE LOCATION CHANGING THE AREA SIZE 1. Select the switch of the “Area to avoid” to display the “De- lete area to avoid” screen. Move the cursor to your desired point, Select one of the “detour gauge”...

  • Page 86: Current Position Calibration

    AVALON_Navi_U (L/O 0205) Current position calibration The current vehicle position mark will be automatically corrected during driv- ing on reception of GPS signals. If your vehicle cannot receive GPS signals, you can correct the current position mark manually. “Calib.” “Position/Direction” 2.
  • Page 87 AVALON_Navi_U (L/O 0205) POSITION/DIRECTION CALIBRATION TIRE CHANGE CALIBRATION tire change calibration function should be used when the tires are re- placed. This will adjust for any possible change in tire circumference from the old tires to the new ones. If this proce- dure is not performed when tires are replaced, the current vehicle position mark may become incorrect.

  • Page 88: Edit Route

    AVALON_Navi_U (L/O 0205) Edit route (a) Adding a destination “MENU” 1. Push the button on the navigation controller to display the “Menu” screen. “Add” 3. Select the switch of “Des- 5. The “Add destination” screen ap- “Add” tination”. pears. Select the switch on the right side of the screen that you 4.
  • Page 89 AVALON_Navi_U (L/O 0205) (b) Reordering a destination (c) Deleting a destination “MENU” “MENU” 1. Push the button on the 3. Choose the destinations in the order 1. Push the button on the navigation controller to display the navigation controller to display the of arrival by selecting the switch “Edit...

  • Page 90: Setting A Preferred Road

    AVALON_Navi_U (L/O 0205) Setting a preferred road ( a) Adding a preferred road “MENU” To delete a previous destination: 1. Push the button on the navigation controller to display the “MENU” 1. Push the button to dis- “Edit “Menu” screen and select the play the “Menu”...
  • Page 91 AVALON_Navi_U (L/O 0205) (b) Modifying a preferred road “MENU” 1. Push the button on the navigation controller to display the “Edit “Menu” screen and select the route” switch on the screen. 3. Move the cursor to your desired 4. The “Add preferred road” screen ap- “Add”...
  • Page 92 AVALON_Navi_U (L/O 0205) (c) Deleting a preferred road “MENU” 1. Push the button on the 3. Select the preferred road which you “Del. navigation controller to display the want to delete. Select the “Edit all” “Menu” screen and select the switch if you want to delete all route”...

  • Page 93: Search Condition

    AVALON_Navi_U (L/O 0205) Search condition Route overview “MENU” “Quick”: A route on which you can reach 1. Push the button on the You can see the entire route from the the destination in the shortest time. starting point to the destination. navigation controller to display the “Edit “Menu”...

  • Page 94: Route Preview

    AVALON_Navi_U (L/O 0205) Route preview The entire route from the starting point to You can preview the route from the the destination is displayed. starting point to the destination. To display the next destination To preview the route to the next “MENU”...
  • Page 95 AVALON_Navi_U (L/O 0205) “Edit” 2. Select the switch. The “Edit 3. Select your desired category of point route preview” screen appears. of interest. “To next POI”: To preview the next POI ”: To preview the next des- “To next tination If the points of interest you selected are on the route, they are displayed on the screen.
  • Page 96 AVALON_Navi_U (L/O 0205) 2003 AVALON NAVI (OM41403U)
  • Page 97 AVALON_Navi_U (L/O 0205) SECTION MORE ADVANCED FUNCTIONS Convenient features Setup ............Map color .

  • Page 98: Setup

    AVALON_Navi_U (L/O 0205) Setup “Notify seasonal restrict”: You can se- You can set the values shown on the lect to notify or not to notify a seasonal “Setup” screen. restrict. “MENU” 1. Select the button on the “Voice guide in all modes”: You can set navigation controller.

  • Page 99: Map Color

    AVALON_Navi_U (L/O 0205) Map color Automatic rerouting “MENU” 1. Push the button on the 3. Select your desired day and/or night When the “Auto reroute” feature is navigation controller. turned on, the system will automatically color then select “OK” search for a new route to the destina- switch to return the map tion if you leave the guidance route.

  • Page 100: Time To Destination

    AVALON_Navi_U (L/O 0205) Time to destination When the “Estimated travel time” fea- ture is turned on, the time preferred to reach the destination is displayed on the route guidance screen. “On” “Setup” 3. Select the switch of “Auto 2. Select the switch.

  • Page 101: Adjust Time Zone

    AVALON_Navi_U (L/O 0205) Adjust time zone “MENU” 1. Push the button on the INFORMATION navigation controller. D The displayed time to the destina- tion is the approximate driving time calculated based on the speeds you selected and your actual position along the guidance route.

  • Page 102: Distance

    AVALON_Navi_U (L/O 0205) Distance “MENU” 1. Push the button on the navigation controller. “km” “miles” 4. Select your desired time zone. 3. Choose switch of “Distance” to select your Selected switch is highlighted in green. desired units. “Setup” 2. Select the switch on the Daylight saving time: Select the “On”...

  • Page 103: Notify Seasonal Restrict

    AVALON_Navi_U (L/O 0205) Notify seasonal restrict Voice guide in all modes “MENU” “MENU” 1. Push the button on the 1. Push the button on the navigation controller. navigation controller. The restricted road icon and the message may appear on the screen. “Setup”...

  • Page 104: Current Street Name

    AVALON_Navi_U (L/O 0205) Current street name “MENU” 1. Push the button on the navigation controller. The current street name appears on the “On” 3. Select the switch of “Voice map screen. guide in all modes” and select the “OK” switch. “Setup”...

  • Page 105: Maintenance Information

    AVALON_Navi_U (L/O 0205) Maintenance information “Date” of notice: Input the next mainte- “INFO” This system has a function which in- 1. Push the button on the nance date. forms you of the time to replace certain navigation controller to display the parts or components as well as other information menu screen.
  • Page 106 “Maintenance” screen. The icon’s color Scheduled maintenance will change to green after the date or driv- ing distance is inputted. The icon’s color Replace engine coolant will change to orange when your Toyota needs serviced. following Oil change switches appear on the screen.

  • Page 107: Dealer Setting

    AVALON_Navi_U (L/O 0205) Dealer setting (a) Register dealer You can register your dealer name and address. After you enter your dealer, the screen 2. Enter your dealer’s location address changes and displays the map location of in the same way as you input any the dealer.
  • Page 108 AVALON_Navi_U (L/O 0205) (b) Edit dealer EDITING THE NAME OF THE DEALER OR CONTACT “Change” You can edit your dealer’s name, staff, 2. Select the switch to location and phone number if you al- edit the item. ready registered the dealer. Select alphabet, numeral or umlaut keys “Set dealer”...
  • Page 109 AVALON_Navi_U (L/O 0205) (c) Delete dealer EDITING THE LOCATION EDITING THE PHONE NUMBER “Delete dealer” 1. Select switch on the screen. 1. Move the cursor to the desired Select numeral keys. point, and if you want to register 2. A selected point will appear. Also, a After you finish your entry, select the “ENT”...

  • Page 110: Calendar With Memo

    AVALON_Navi_U (L/O 0205) (d) View map Calendar with memo “View map” “INFO” Select the switch on This system has a function which in- Push the button on the navi- “Edit dealer” screen. screen forms you the memo you entered. When gation controller to display the informa- “Calen- changes and displays the map location...
  • Page 111 AVALON_Navi_U (L/O 0205) (a) Inputting a memo Today’s date is highlighted. If today’s date 1. Select the day you want to input a 3. Select alphabet, umlaut keys directly is not displayed on the screen, select memo. to input a memo. You can input up switch to display a calendar of “Today”...
  • Page 112 AVALON_Navi_U (L/O 0205) (b) Adding a memo 3NO025 The date you inputted is displayed as Select your desired date or mark color. When you want to add a memo, directly above illustration. If you want to default the date color select the date you want to add the “Cancel”...
  • Page 113 AVALON_Navi_U (L/O 0205) (c) Deleting a memo (d) Editing a memo (e) Memo list Select the date you already inputted the If you want to edit the memo, select If you want to have a look of the memo “Edit” “List”...
  • Page 114 AVALON_Navi_U (L/O 0205) “Period” In case of selecting the switch, you can display the memo list as long as you desired. Select number keys to input your desired search peri- od. After inputting a search period of “OK” time, select the switch.
  • Page 115 AVALON_Navi_U (L/O 0205) To edit: Select the switch. (See “Edit” page 105 for details.) To delete: Select the “Delete” switch. (See page 105 for details.) 2003 AVALON NAVI (OM41403U)
  • Page 116 AVALON_Navi_U (L/O 0205) 2003 AVALON NAVI (OM41403U)
  • Page 117 AVALON_Navi_U (L/O 0205) SECTION OTHER FUNCTIONS Clock adjustment ......... . . Outside temperature display .

  • Page 118: Clock Adjustment

    AVALON_Navi_U (L/O 0205) Clock adjustment Time Zone: You can select the time zone. When you select this switch, the display will be change to the time zone selection screen. initial setting “Eastern Standard Time”. 4NO011 Auto Adjust: Before you use the auto ad- just function, select the time zone (see “Time Zone”...

  • Page 119: Outside Temperature Display

    “−−” will appear on the display. If “−−” appears on the display, contact your Toyota dealer. There may be a case that “−−” appears momentarily when the ignition is quickly turned to “ON”. It is normal if it goes out soon.
  • Page 120 AVALON_Navi_U (L/O 0205) Note that an accurate figure may not be “Cruising range” shown in the following cases. The distance the vehicle can travel with the When the vehicle is stopped with the remaining fuel is calculated and displayed engine running, the display will indicate based on the quantity of remaining fuel and the extremely high fuel consumption.

  • Page 121: Screen Adjustment

    AVALON_Navi_U (L/O 0205) Screen adjustment “Average speed” You can adjust the brightness or con- trast of the screen depending on the The average speed is calculated and dis- brightness of your surroundings. You played based on the total driving distance also can turn the display off.
  • Page 122 AVALON_Navi_U (L/O 0205) When the headlight switch is at “ON” position, the screen changes to the day mode or night mode. To display the screen in the day mode even with the head light switch on, select “DAY MODE” switch on the adjust- ment screen for brightness and contrast control.

Table of Contents
