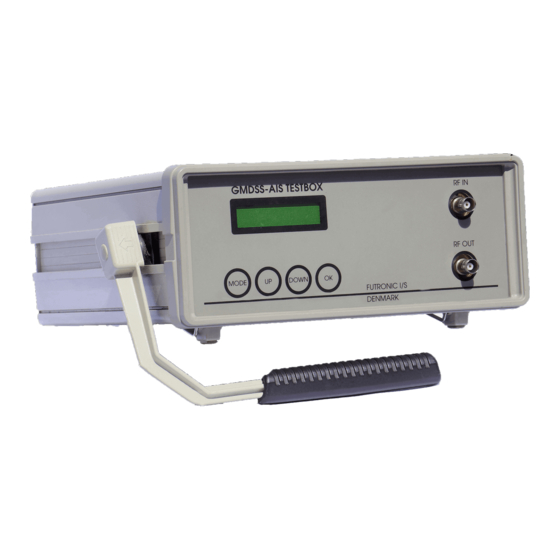

FUTRONIC GMDSS-AIS TEST BOX
USER'S MANUAL
Custom Message Software Manual of 09-08-2010
The Custom Message Software allows you to prepare custom made messages on a PC and
then download them to the test box for later transmissions. The software also enables you to
decode and view messages transmitted from AIS transponders.
The Custom Message Software can be downloaded from Danphone's website
http://www.danphone.com/Default.aspx?ID=48
DANPHONE A/S
Fabriksvej 4. DK-9490 Pandrup. Denmark
Tel: +45 96 44 44 44. Fax: +45 96 44 44 45
E-mail: info@danphone.com
www.danphone.com
Advertisement
Table of Contents
Related Manuals for DANPHONE FUTRONIC GMDSS-AIS TEST BOX
Summary of Contents for DANPHONE FUTRONIC GMDSS-AIS TEST BOX
- Page 1 The Custom Message Software allows you to prepare custom made messages on a PC and then download them to the test box for later transmissions. The software also enables you to decode and view messages transmitted from AIS transponders. The Custom Message Software can be downloaded from Danphone’s website http://www.danphone.com/Default.aspx?ID=48 DANPHONE A/S Fabriksvej 4.
- Page 2 This page is intentionally left blank...
- Page 3 The Custom Message Software allows you to prepare custom made messages on a PC and then download them to the test box for later transmissions. The software also enables you to decode and view messages transmitted from AIS transponders. The Custom Message Software can be downloaded from Danphone’s website http://www.danphone.com/Default.aspx?ID=48 Manual...
- Page 4 DSC Message Composer Select Format for the DSC message. Fill in the DSC information you want to transmit. See examples in chapter COMPOSITION OF THE DSC CALL of test box manual. Also, refer to Rec. ITU-R M.493 and Rec. ITU-R M.825 for more information.
- Page 5 AIS Message Composer Write the Latitude and Longitude position in the fields. It’s only MSG 1, 2 or 3 which are available. Please note, that the MMSI number is not the MMSI of the actual AIS transponder but the MMSI number sent out from the test box. Select AIS TEST SEND –>...
- Page 6 AIS Monitor / Message Decoder Receive = Receive AIS data from the test box Save as text = Save AIS data on your PC Read TB dump file = Reload and view AIS data stored on your PC...
- Page 7 NMEA String Composer Write the NMEA string you want to transfer to the test box. Click “Generate check” to add checksum. Select NMEA –>CUST –>PC on the test box, Click “Transfer” to transfer the NMEA string to the test box. Press SEND on the test box to transfer the string to the RS232 D-sub on the test box.
