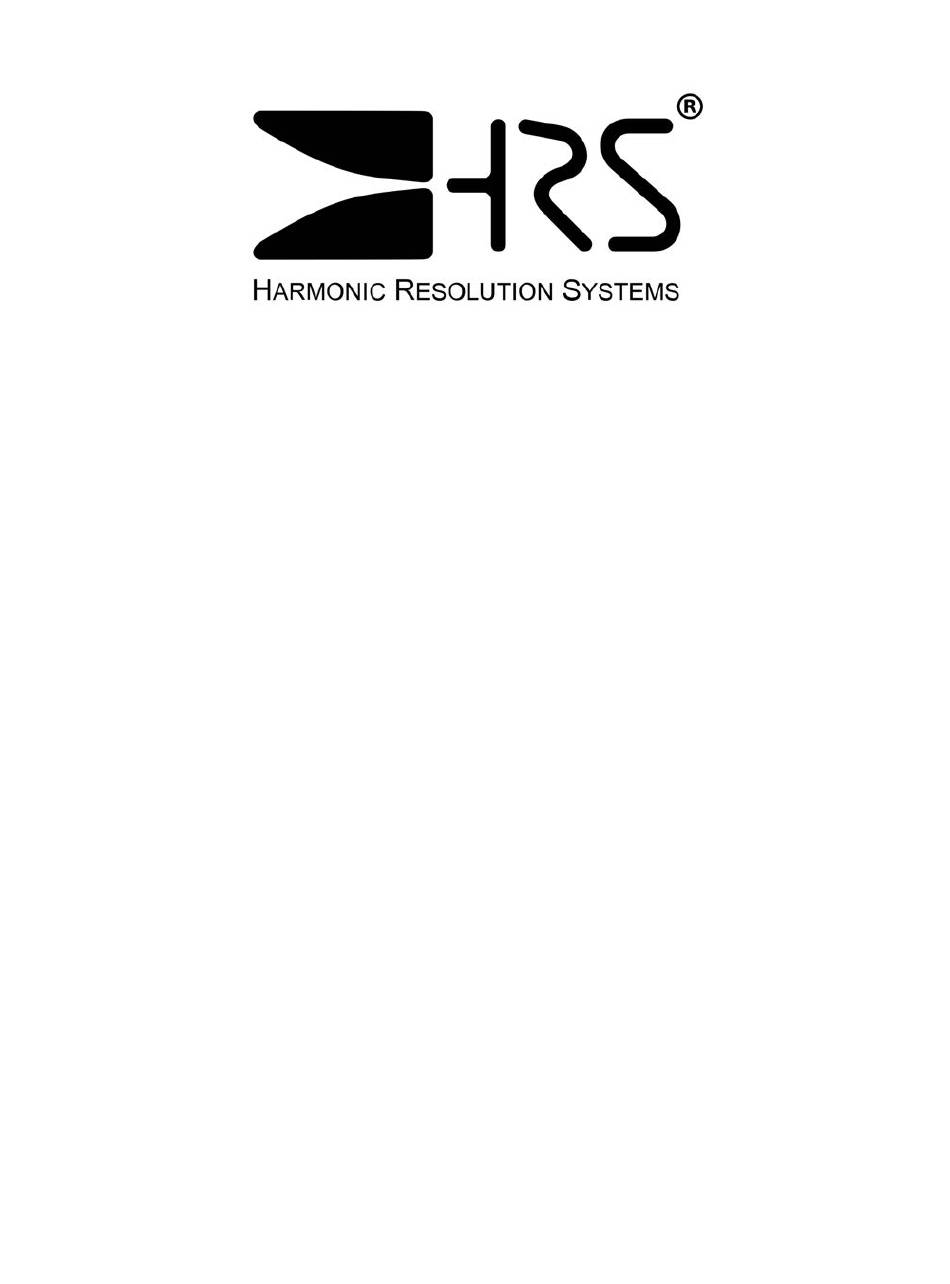

  • Page 1 SXRC AUDIO STAND A Low Noise Floor Is Fundamental...
  • Page 2 Harmonic Resolution Systems, Inc. will enable your audio/video source and amplification components to achieve high levels of performance. The SXRC Audio Stand, which includes the HRS Isolation Base as the primary shelf system, is a perfect match for the HRS Damping Plates and Nimbus Products.

  • Page 3: Safety Instructions

    Safety Instructions IMPORTANT WARNINGS! Do not place any tall objects on the top shelf of the SXRC Audio Stand. A tall object is any object with a height that is greater than the length of the isolation base. A tall object is also any object that has a height greater than its own width or length.

  • Page 4: Setup Instructions

    Setup Instructions The SXRC Audio Stand consists of a frame structure and the isolation bases that support each component. The components required to assemble the frame are shipped in one or more boxes. The number of boxes depends on the system size.
  • Page 5 Support Brace. The holes of the Support Brace should line up with the threaded holes of the Cross Member. Slide a second Cross Member into the other slot in the same way (Picture 1). Make sure the HRS Logos on the two Cross Members face the same direction.
  • Page 6 If one does not, back it out and start it in again. Never force a threaded connection. If a part does not thread on easily, contact HRS or your local retail facility for assistance. Apply torque only when instructed and only after all the fasteners at each step are in place.
  • Page 7 Note: Shelf spacing is approximately 3” less than the strut length. Verify that you have the correct strut length required for your system. HRS offers a variety of strut lengths so consult your dealer if you are not certain you have the correct parts for your desired spacing.
  • Page 8 SXRC by placing each strut through one hole of the Support Braces. Make sure the HRS logos on all of the Cross Members face the same direction. Also make sure that each strut is properly seated into a countersunk hole of the Support Brace.
  • Page 9 If your SXRC requires another layer, repeat Steps 5-11. Note that when building the additional layers you should torque the struts in a sequence and then through the same sequence again until each strut is tight (approximately 1/4 to 1/2 turn past snug).
  • Page 10 SXRC-1921-2V. Flip the SXRC Frame upright. Move the frame to the exact final location for use in your system. The front of the frame is the side from which the HRS logos can be read right side up. Picture 11...
  • Page 11 Torque the Washer against the Stand Point as much as possible with your hands. You can use the HRS Grip Pad if you need to get additional torque. This will lock the Stand Points into place and take any motion out of threaded connection. The...
  • Page 12 Make sure you read and follow all of the instructions in the isolation base manual prior to installing into the SXRC Audio Stand frame. You will want to verify that the frame size matches the isolation base size. The SXRC-1921-2 uses the 1921-2 isolation bases.
  • Page 13 Loading Components into SXRC Frame - Carefully load each component into the SXRC Audio Stand. Be careful not to hit the front edge of the isolation base as this may scratch the frame. Once all the components are loaded, you should check to see that none of the isolation bases are overloaded.

  • Page 14: Care And Maintenance

    Submerging, spraying, or soaking the rack system or isolation base will cause permanent damage to the assembly. Clean the metallic parts of the isolation base and SXRC Audio Stand using a lint- free soft (non-abrasive) cloth. Use a damp cloth with a mild soap or Pledge Surface Cleaner if required.

  • Page 15: Limited Warranty

    Limited Warranty Harmonic Resolution Systems warrants the product designated herein to be free of manufacturing defects in material and workmanship subject to the conditions herein set forth, for a period of 90 days from the date of purchase by the original purchaser.
  • Page 16 During the warranty period, Harmonic Resolution Systems will repair or replace any defective components free of charge. A Return Authorization Number (RA Number) obtained directly from Harmonic Resolution Systems is required before any product is returned to Harmonic Resolution Systems for any reason. This number must be visible on the exterior of the shipping container(s) for Harmonic Resolution Systems to accept the return.
  • Page 17 (MADE IN USA) All Harmonic Resolution Systems Inc. products are 100% Made In The United States of America by skilled craftsmen using only the finest materials and our personal dedication to the highest workmanship standards. ARMONIC ESOLUTION YSTEMS 2495 Main Street, Suite 227 Buffalo, NY 14214 Telephone: 716-873-1437 Web: www.AVisolation.com...
