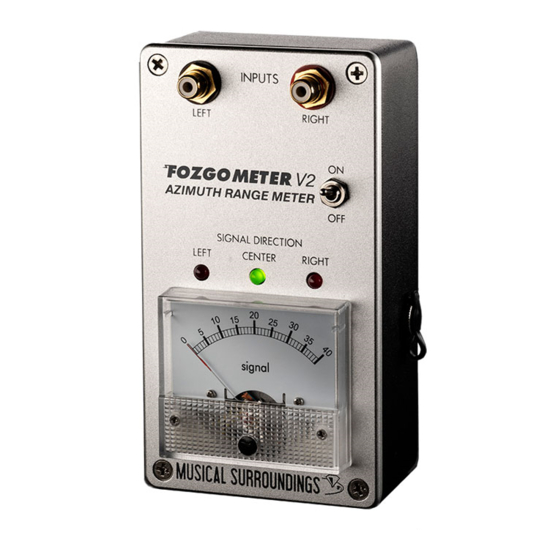

Azimuth Range Meter
Specifications:
Input signal: 1KHZ sine wave
Input level: .3mV RMS minimum, 2.7V RMS maximum
Input Load: 86.6K
Power: Supplied Power Supply or 9V Battery
Dimensions: 6 ½" H, 3 ¼" W, 2 3/8" D
5662 Shattuck Ave
Oakland, CA 94609 USA
Owner's Manual
tel. 510.547.5006
www.musicalsurroundings.com
info@musicalsurroundings.com
Advertisement
Summary of Contents for Musical Surroundings FOZGOMETER V2

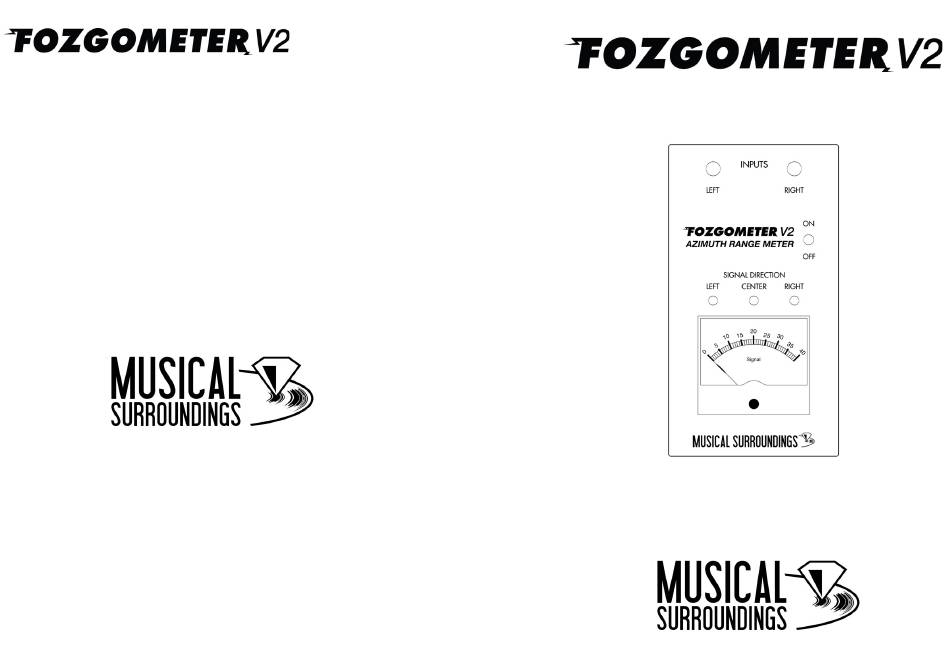

- Page 1 Azimuth Range Meter Specifications: Input signal: 1KHZ sine wave Input level: .3mV RMS minimum, 2.7V RMS maximum Input Load: 86.6K Power: Supplied Power Supply or 9V Battery Dimensions: 6 ½” H, 3 ¼” W, 2 3/8” D 5662 Shattuck Ave Oakland, CA 94609 USA Owner’s Manual tel.
- Page 2 4. REMEDY - In the event the designated product fails to meet the warranty, and the above conditions have been met, the purchaser's sole remedy under the limited warranty shall be to return the product to Musical Surroundings Correct azimuth alignment of your phono cartridge’s where the defect will be rectified without charge for parts or labor.
- Page 3 Use the Analogue Productions Test LP #AAPT1, Musical Surroundings reserves the right to modify the design of any product without obligation to purchasers of previously manufactured products and to change the available from your Fozgometer dealer, for azimuth prices or specifications of any product without notice or obligation to any person.
- Page 4 Analogue Productions Test LP tracks: Optimal Azimuth Achieved – Channels Match Track 1: 1 kHz sine wave, Both left and right channels Track 2: 1 kHz sine wave, Left channel only Track 3: 1 kHz sine wave, Right channel only Mechanical Meter Check Check your FOZGOMETER V2 with the power both off and...
-
Page 5: Azimuth Adjustment
Getting both channels to match or read as close as possible is the key. Figure 2, channel balance ideal Figure 3, Left channel balance off If channel balance is off, the CENTER light will Figure 8, Left 21 Figure 9, Right 19 illuminate and a channel light, signifying that channel’s imbalance, will illuminate with the meter displaying the Azimuth is calibrated when the left and right signal readings... - Page 6 Figure 4, Left 25 Figure 5, Right 16 Figure 6, Left 18 Figure 7, Right 27 3. Play Track 3 on Test LP, the right signal indicator As you adjust Left/Right tilt, you will see the higher should light. Observe the reading as seen in figure 5. channel coming down and the lower channel reading rising.
