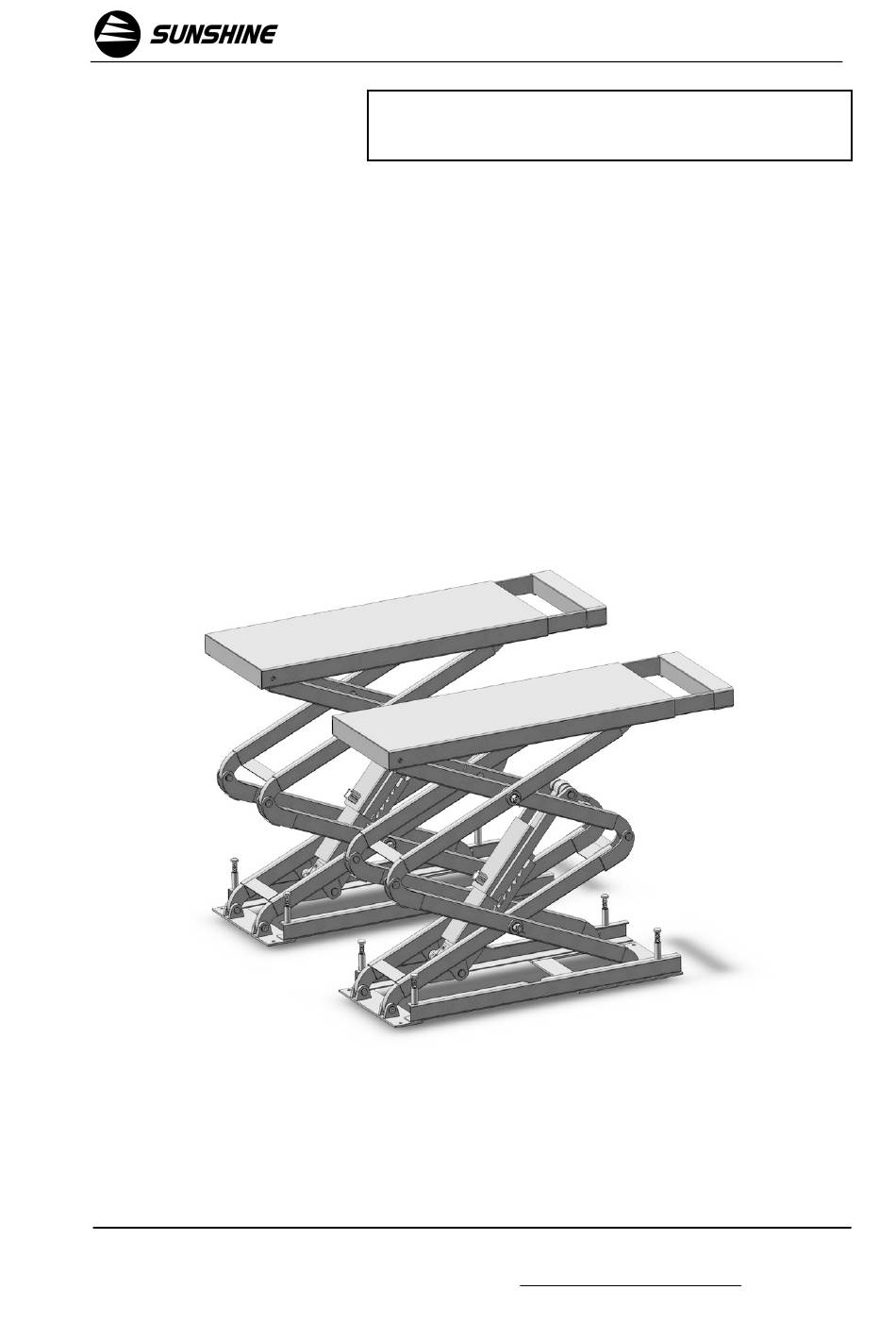

DOUBLE-DECK SCISSOR LIFT
Add：No. 21 Tongrun Road,APEC Industrial Zone, Zhifu District, Yantai,China
Tel：0535-6853129 Fax：0535-6853815 http://www.ythaide.com
SXJS3018 DOUBLE-DECK SCISSOR LIFT
Please read this manual carefully before using
Note: improper operation will result in personal
SXJS3018
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SXJS3018 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunshine SXJS3018

  • Page 1 SXJS3018 DOUBLE-DECK SCISSOR LIFT Please read this manual carefully before using Note: improper operation will result in personal SXJS3018 DOUBLE-DECK SCISSOR LIFT MANUAL Add：No. 21 Tongrun Road,APEC Industrial Zone, Zhifu District, Yantai,China Tel：0535-6853129 Fax：0535-6853815 http://www.ythaide.com...

  • Page 2: Table Of Contents

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Contents 1. Safety Note………………………………………………………………………1 2. Packing, Handing and Storage…………………………………………………2 3. Features……………………………………………………………………………3 4. Technical Parameters……………………………………………………………4 5. Installation and Adjustment………………………………………………………5 6. Hydraulic System…………………………………………………………………8 7. Pneumatic system………………………………………………………………9 8. Operation…………………………………………………………………………9 9. Maintenance……………………………………………………………………11 10. Notes……………………………………………………………………………12 11. Common Breakdowns and Solutions………………………………………13 12. Qualification Certificate………………………………………………………14 13.

  • Page 3: Safety Note

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Safety Note ◆ Please read this manual carefully before using this machine. Strictly operating in accordance with the instructions, not free to operate. Only trained and qualified staff to operate and use the lift. ◆ Make sure the voltage, phase such Technical Parameters on the nameplate of motor before installation, the power connection must be done by a professional qualified electrician.

  • Page 4: Packing, Handing And Storage

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Packing, Handing and Storage 1. Packing a) The lift packed in 2 separate parts, packed by unbreakable material. b) Motor power unit and electric control box packed separated in paper cartons. 2. Handing a) Using crane or forklift by gravity centre of the machine during handling.

  • Page 5: Features

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Chapter 1. Features 1.1 General Introduction: The lift adopts the scissor-type mechanical structure; utilize the hydraulic pressure to produce the lifting power. The air pressure controls the lock and loosening of the execution components. The mechanical lock could insure the security and the hydraulic balance valve adjust the lifting flat level.

  • Page 6: Technical Parameters

    SXJS3018 DOUBLE-DECK SCISSOR LIFT The lift is including mechanical system, hydraulic system, pneumatic system and electrical system as below:（Fig. 1） ： 1. Pulling head 2. Platform 3. Machine arm 4. Above protection lock 5. Below protection lock 6. Hydraulic cylinder 7.

  • Page 7: Hydraulic System

    SXJS3018 DOUBLE-DECK SCISSOR LIFT 3.2 Foundation preparation Refer to dimension layout Fig.2 and Foundation Installation Diagram Figure II for foundation preparation. Thickness (strength) and level of concrete is important. Don’t rely much on machine adjustment on level. Under good geological conditions, the thickness of the concrete foundation is above 150mm, and recommended thickness 180mm-200mm.
  • Page 8 SXJS3018 DOUBLE-DECK SCISSOR LIFT attention, 220V motor, the diameter specifications of the power line is not less than 4.0mm ,380V motor is not less than 2.5mm . To ensure that power is not lack of phase, the voltage is normal, and then click UP button (no more than 3 seconds), check the motor rotation direction is correct.
  • Page 9 SXJS3018 DOUBLE-DECK SCISSOR LIFT 3.7 Add oil and adjustment Press UP button to lift up the platforms. If two platforms are not on the same level, adjust the balancing valves to levelthe two platforms. The steps are as below: (refer to Fig.5) If the main platform (with thicker cylinder), open valve 8 (How much should be open depending on how much height difference between two platforms.)

  • Page 10: Pneumatic System

    SXJS3018 DOUBLE-DECK SCISSOR LIFT valve is adjusted well in factory, it’s forbidden to adjust than the rated load.) 4.2 When you use the lift first time after installation, pay attention to the direction of motor rotation while connecting wires. If the motor is rotating in the wrong direction for too long time, the gear pump could be damaged.

  • Page 11: Operation

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Chapter 6. Operation Safety is the key in the operation. Pay more attention to that if the mechanical lock is reliable and normal. Never put hands or feet into the middle part of the flats during the process of lifting and before mechanical lock is well operated to avoid danger.

  • Page 12: Maintenance

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Chapter 7. Maintenance 7.1 Keep the facility clean and tidy. Nothing is permitted to put on the flat and the below of the facility to avoid damage to the equipments and hurt to people caused by the decline and extrusion during lifting and falling.
  • Page 13 SXJS3018 DOUBLE-DECK SCISSOR LIFT Chapter 8. Note 8.1 The compressed air pressure for the Pneumatic system is 0.4-0.6Mp. 8.2 If the local voltage fluctuation is over 10%, a voltage stabilized need to be installed. 8.3 First time installation or after power supply maintenance, the turning direction of the motor must be confirmed.

  • Page 14: Common Breakdowns And Solutions

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Chapter 9. Common Breakdowns and Solutions Breakdowns Reasons Solutions 1.The engine works, 1.No oil in the pump. 1. Infuse enough hydraulic oil. but no pressure. 2.The filter net is 2. Clean out the dirty things. jammed.
  • Page 15 SXJS3018 DOUBLE-DECK SCISSOR LIFT SXJS3018 DOUBLE-DECK SCISSOR LIFT Qualified Certificate This product executive standard Q/0601KHD002- 2010,is qualified according to the delivery inspection. mm × mm × ： Dimension Product Number： Corporate Representative： Inspected by： D a t e : Yantai Haide Science And Technology Co., Ltd.

  • Page 16: Inspection Report

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Inspection Report Name of the commodity： Double-deck scissor lift Model No.：SXJS3018 This product applied standard Q/0601KHD002-2010. Product inspection items and results before sending out of factory are as follows： Standard measured Inspection items unit Value value Lifting height ≥2000...

  • Page 17: Packing List

    SXJS3018 DOUBLE-DECK SCISSOR LIFT Packing List Name Model No. Remark 1 Main Lifting Platform SXJS3018 2 Rubber Pad Electrical Control Box Assembly 4 Pneumatic FRL Φ14 5 Compound Pad 6 Expansion Bolt M16×120 7 Gasket 8 Plastic band 9 Inspection Report...
  • Page 18 SXJS3018 DOUBLE-DECK SCISSOR LIFT Figure : Electric Schematic Diagram - 16 -...
  • Page 19 SXJS3018 DOUBLE-DECK SCISSOR LIFT Figure : Foundation Installation Diagram - 17 -...
