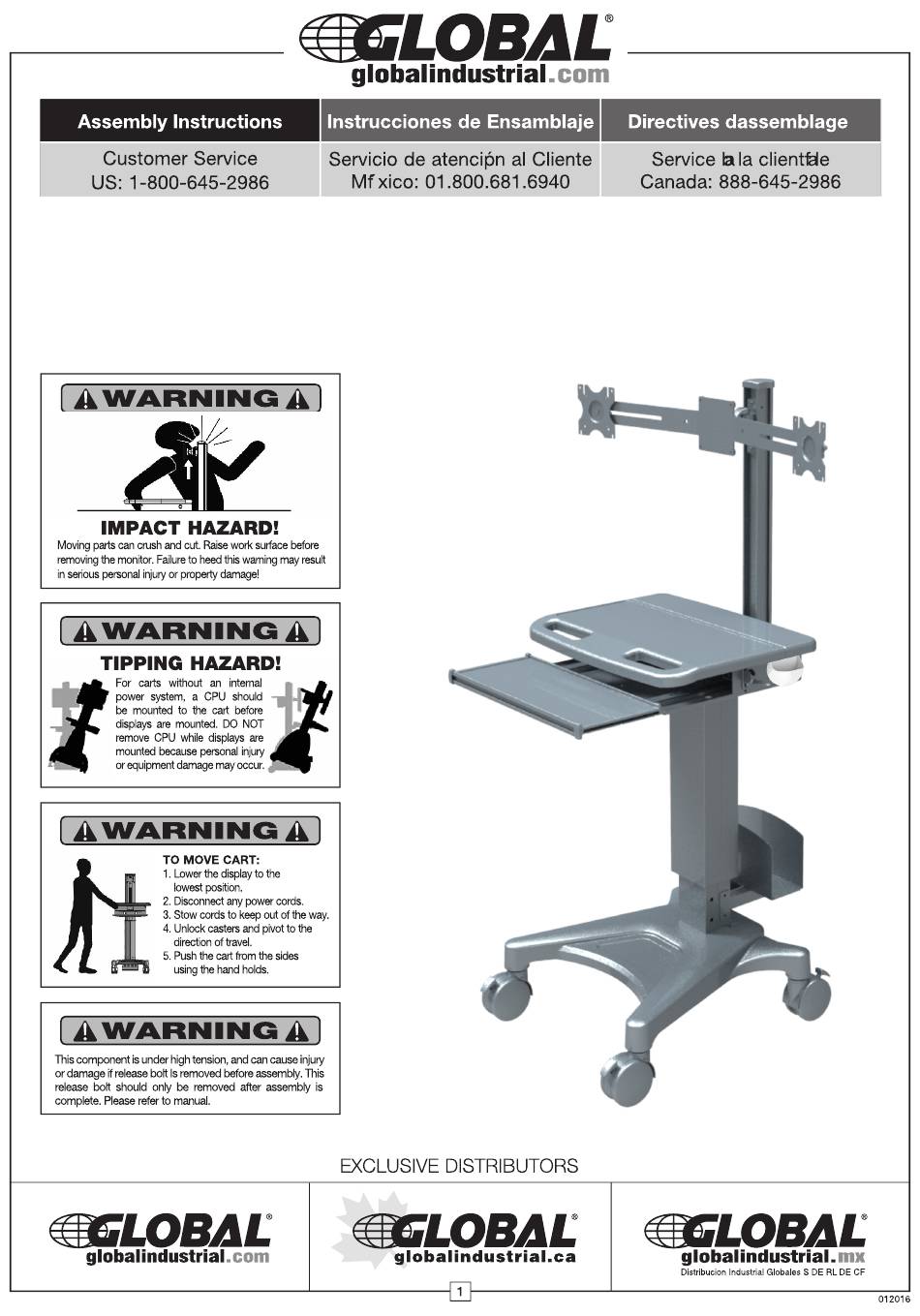

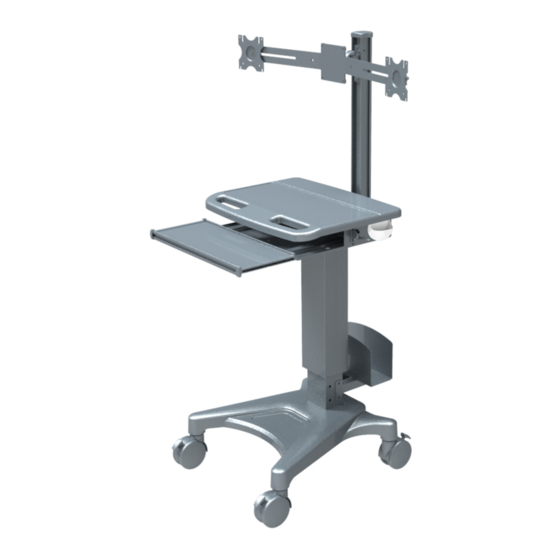

- Page 1 Mobile Sit and Stand Workstation with Dual Monitor Mount Model 695436D...
- Page 2 Mobile Sit and Stand Workstation with Dual Monitor Mount Dual Monitor Bar Mount DP710 Qty. (1) Phillips Screw M6 x 12mm Qty.(4) Phillips Screw Phillips Screw Round Head Hex Screw M4 x 12mm Qty.(4) M4 x 25mm Qty.(4) M5 x 8mm Qty.(4)
-
Page 3: Installation
Assembly Instructions Mobile Sit and Stand Workstation with Dual Monitor Mount Installation Attaching the Lift Pole Note: This step require assistance. 1. Do not remove the gas Labels should spring tension screw below the label face the before completing the assembly. Put same side lift pole (2) on the base (3). - Page 4 Mobile Sit and Stand Workstation Assembly Instructions with Dual Monitor Mount Attaching Work Surface Attaching LCD Column 5. Put the work surface (5) over the keyboard 6. Put the LCD column (1) on the end of keyboard tray slot. Install three flat head hex tray slot.
- Page 5 Assembly Instructions Mobile Sit and Stand Workstation with Dual Monitor Mount Display Installation - WARNING! A CPU should be mounted to the cart before displays are mounted. Stop immediately if you encounter any resistance, or you 9. Select the depth of the phillips screws M4 x 12mm (16) may damage your monitor.
-
Page 6: Adjusting Resistance
Mobile Sit and Stand Workstation Assembly Instructions with Dual Monitor Mount 13. After final assembly, remove the gas spring tension Remove gas spring retaining screws as shown in Fig. (A) and (8) below. Pull the tension retaining lever up to change the work surface to desired height. All labels must be on the same side as the label... -
Page 7: Specifications
Assembly Instructions with Dual Monitor Mount Specifications • Model: 695436D • Height adjustment range for LCD and work surface: 400mm (16") • Work surface height: 892mm-1292mm (35"- 51") • Work surface dimensions: 560mm (L) x 430mm ( W) (22" x 17") •... -
Page 8: Features And Components
Mobile Sit and Stand Workstation Assembly Instructions with Dual Monitor Mount FEATURES AND COMPONENTS VESA monitor mount with swivel and tilt adjustment LCD column with cable Work surface with handles management Mouse holder Vertical adjustment lever (lift lever to adjust) Hideaway keyboard tray Lift pole CPU holder...
