Summary of Contents for Combi ECpv

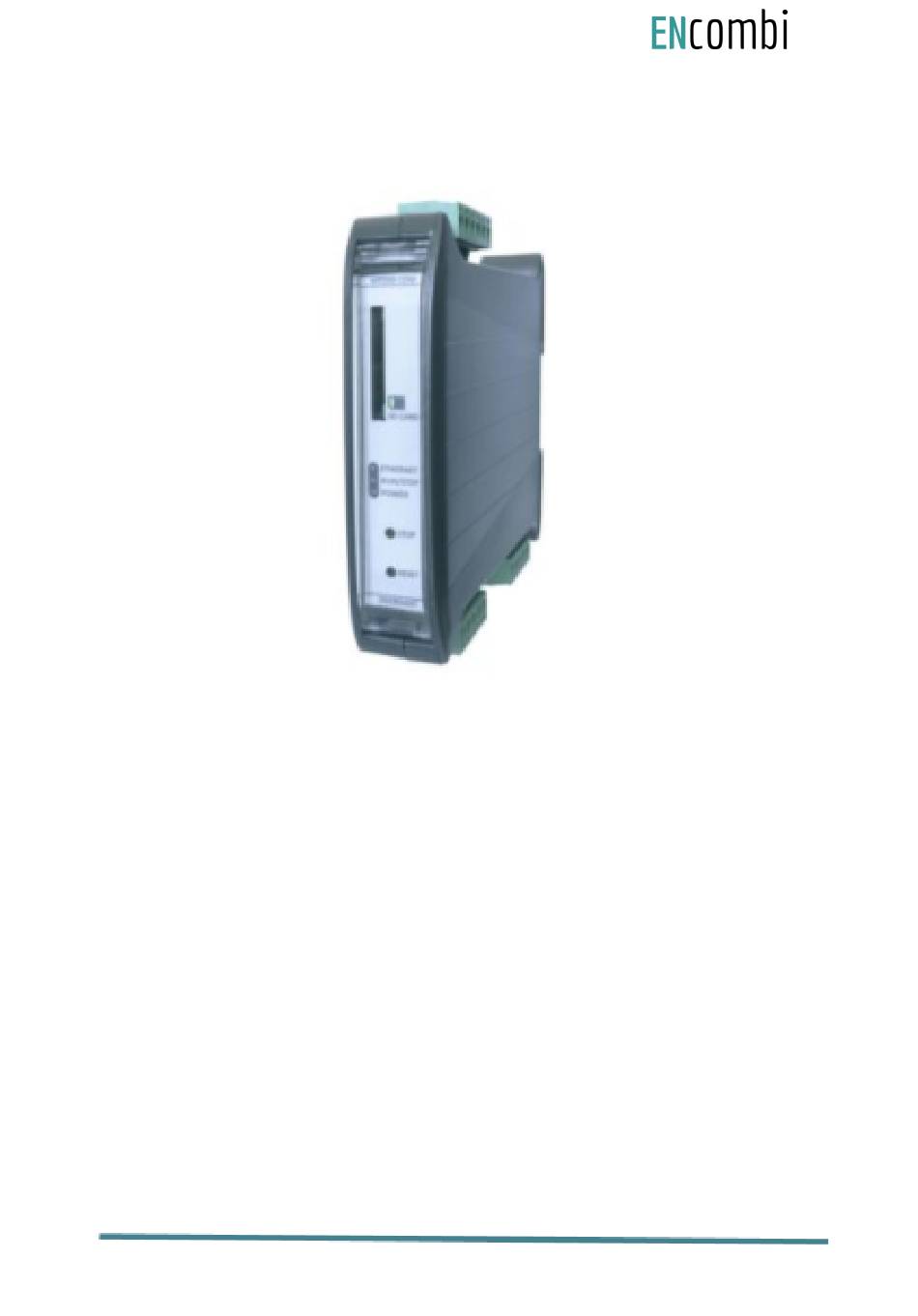

- Page 1 ECpv Quick Start Guide ...
- Page 2 Document change log Introduction ECweb Connecting to ECweb with Internet Explorer on PC/laptop Connecting to ECweb using any other browser or mobile device Troubleshooting Connection to ECweb established ...
- Page 3 Document change log 2019-07-02 First version ...
- Page 4 Introduction All configuration and real time monitoring of the ECpv is done by connecting with a standard web browser to its build in webserver (ECweb). The ECweb can run on any device featuring a web browser. Use for instance a panel PC as a local HMI on site. A laptop or portable device which will give you monitoring and control capabilities even from remote if connectivity to the ECpv is in place.
- Page 5 ECweb ECweb is the build in webserver of the ECpv. All configuration and real time monitoring of the ECpv is done via ECweb. Connection to ECweb is done with a standard web browser Using laptop/PC and Internet Explorer browser running on Java is the best option for connecting to ECweb.
- Page 6 ECpv itself. 3. Once the IP of your laptop is in place you must be able to ping the ECpv. This can be done by opening a command prompt and write the command “ping xxx.yyy.zzz.www”...
- Page 7 Furthermore when changing certain settings etc. a reboot of the ECpv is required before the changes take effect. This will be communicated in the message as well and a dedicated button with refresh symbol will be presented alongside with the messages.
- Page 8 That could be for linking physical digital inputs applied on power meters to position of breakers or similar. Also in here RRCR can be setup providing the option of superior control system to give power references for the ECpv to follow.
