Summary of Contents for Edisons mtm MBX300

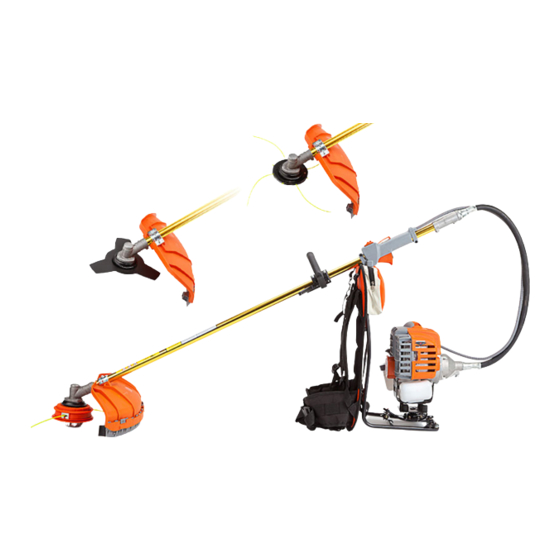

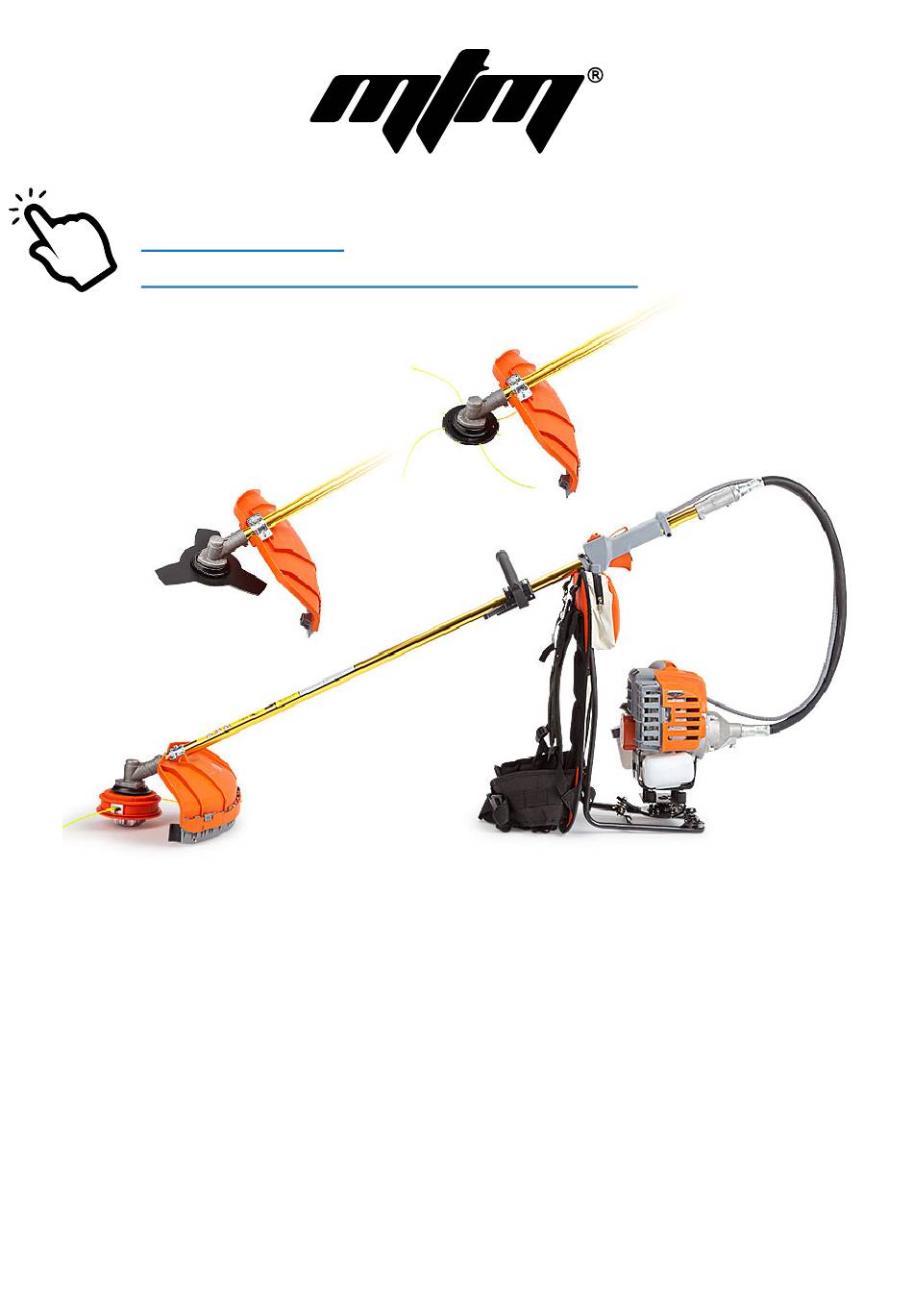

- Page 1 Click to Watch: Starting a 2-Stroke How to Reload Your Twister Bump Feed Head 3 in1 Back Pack Pole Trimmer and Brush Cutter User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
3 in1 Back Pack Pole Trimmer and Brush Cutter Table of Contents Safety ................................. 1 Included Items ..............................3 Safety Wear ..............................3 Tools ................................4 Accessories ..............................4 Set-Up ................................5 Quick Start Guide ............................11 Maintenance ..............................12 Spark Plug .............................. -
Page 3: Safety
3 in1 Back Pack Pole Trimmer and Brush Cutter Safety • It is important you read and understand the instruction manual before first use and keep this manual in a safe place for future reference. • Safety precautions must be observed to reduce the risk of personal injury when operating this machine. - Page 4 3 in1 Back Pack Pole Trimmer and Brush Cutter • Serious injury to the operator or bystanders could result as well as damage to the machine. • Never leave the machine running and unattended. • Do not use this unit for any job other than those for which it is intended as described in this manual. •...
-
Page 5: Included Items
3 in1 Back Pack Pole Trimmer and Brush Cutter make engine adjustments while the unit is strapped to the operator. Always make engine adjustments with the unit resting on a flat, clear surface. Included Items Safety Wear 1x Pair of gloves 1x Pair of googles 1x Pair of ankle sleeves 1x Pair of ear muffs... -
Page 6: Tools
3 in1 Back Pack Pole Trimmer and Brush Cutter Tools 1x Multi-tool 4x Screws (M6 x 20mm) 1x Wrench (8mm & 10mm) 4x Screws (M6 x 35mm) 3x Allen keys 4x Nuts 2x Screws (M6 x 16mm) Accessories 1x Bump head whipper snipper 1x Tri wing blade 1x Fixed line whipper snipper... -
Page 7: Set-Up
3 in1 Back Pack Pole Trimmer and Brush Cutter Set-Up Step 1: Attaching the flexi shaft Locate the motor base, flexi shaft and 4x M6 x 20mm screws. Align the coupler of the flexi shaft to the motor. Screw alternate diagonals, then the remaining two. - Page 8 3 in1 Back Pack Pole Trimmer and Brush Cutter Step 2: Aligning the internal square flexi shaft If the internal square shaft is protruding at the Remove flexi shaft by releasing the locking pin. end, it has to be aligned. Pull internal square flexi shaft roughly an inch out.
- Page 9 3 in1 Back Pack Pole Trimmer and Brush Cutter Remove coupler. Slide throttle handle onto solid extension shaft. Place the coupler back onto the solid shaft, ensuring that the holes align. Screw the 2 screws on the right back in as indicated below. Leave the longest screw out until step 5.
- Page 10 3 in1 Back Pack Pole Trimmer and Brush Cutter Step 4: Aligning the internal solid shaft If the internal shaft is protruding it has to be Slightly turn the internal shaft while also trying aligned. to push it inwards. Ensure the internal shaft it pushed all the way in. Step 5: Attaching the flexi shaft to the solid shaft Align the 2 ends together.
- Page 11 3 in1 Back Pack Pole Trimmer and Brush Cutter Step 6: Attaching the handle Locate the 2 piece handle, 4x nuts and 4x M6 x Place the nuts into the lower piece of the 35mm screws. Move the rubber piece up or handle.
- Page 12 3 in1 Back Pack Pole Trimmer and Brush Cutter Step 8: Attaching padded shoulder straps Locate the padded shoulder straps and insert over frame. Tie down the straps.
-
Page 13: Quick Start Guide
3 in1 Back Pack Pole Trimmer and Brush Cutter Quick Start Guide NOTE: When starting engine for the first time, please refer to the full manual for further details if the steps below does not work. Always use 25:1 petrol / (2-stroke) oil mix. Press the ON/OFF switch Ensure that enough petrol / Press the primer bulb 2 –... -
Page 14: Maintenance
3 in1 Back Pack Pole Trimmer and Brush Cutter Maintenance Spark Plug Clean or replace the spark plug as needed to ensure proper operation. The spark plug becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the spark plug while it is hot. -
Page 15: Specifications
3 in1 Back Pack Pole Trimmer and Brush Cutter 1. Remove screw and orange air filter cover (image to the left) 2. Remove air filter and grill 3. Place nylon gloves on your hands and clean the filter it kerosene 4. - Page 16 Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety ...
