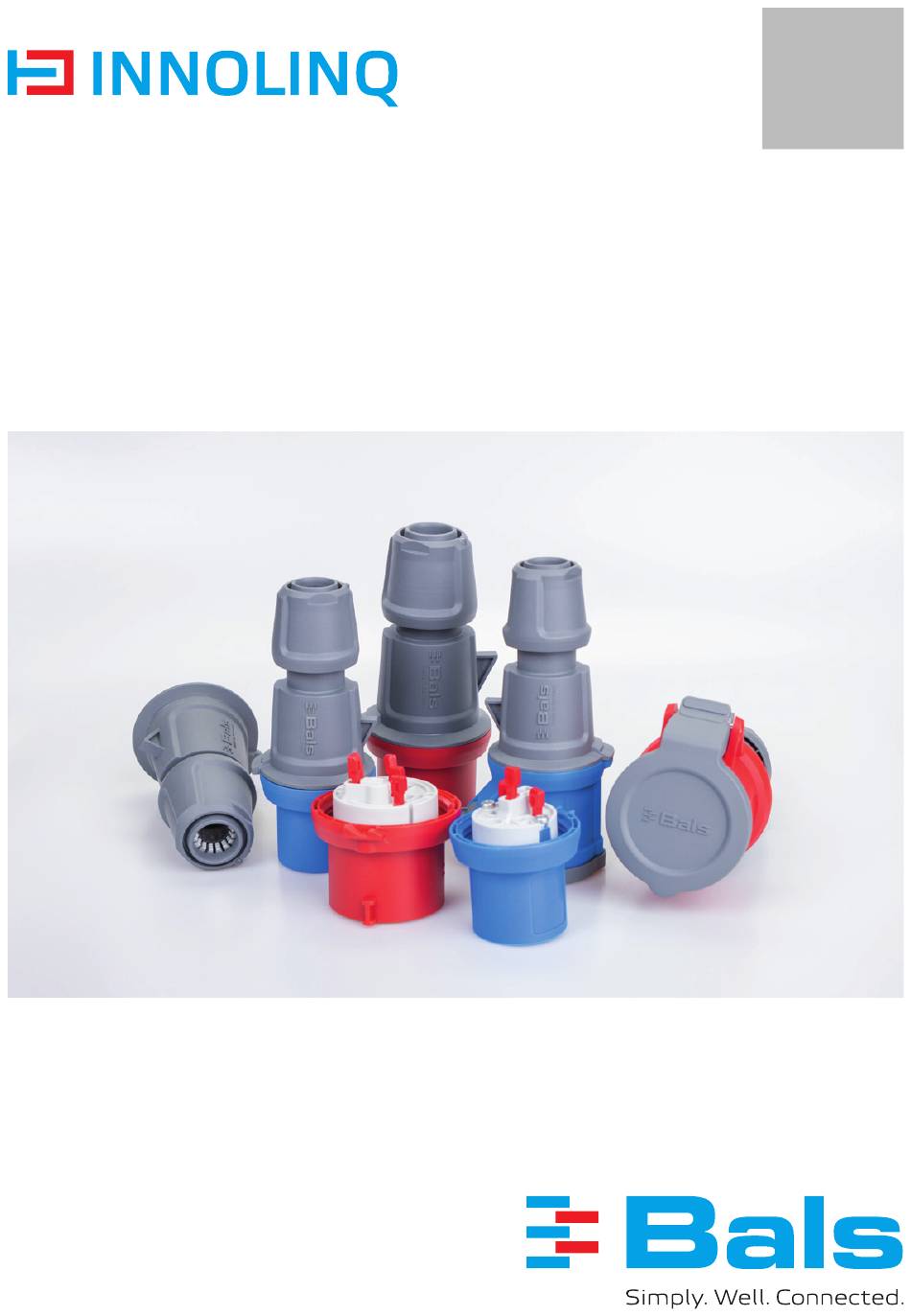

- Page 1 Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) 600XXXX Issue 09.2020 25.09.2020...
-
Page 2: Table Of Contents
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Table of contents About this manual Structure of the warnings Symbols used Signal words used Intended use General safety instruction Packaging, transport and storage Packaging Transport Storage Design Assembly and disassembly Connecting a cable to a 16-A / 32-A plug and connector... -
Page 3: About This Manual
This manual – describes the assembly and disassembly of plugs and sockets with screw connections of Bals Elektrotechnik GmbH & Co. KG – is an integral part of the product and must be kept in safe custody during the product service life –... -
Page 4: Symbols Used
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Symbols used General warning of a hazardous area Warning – dangerously high voltage Notice Signal words used All warnings in this manual are clearly highlighted. The following signal words are used for... -
Page 5: Intended Use
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Intended use The QUICK-CONNECT system is used as a screwless quick-connect system based on the cage clamp principle in electrical plugs and sockets. Plugs and sockets with QUICK-CONNECT are built for professional use. The installation and the fixed connection to the mains supply should be carried out only by trained and qualified experts. -
Page 6: General Safety Instruction
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Enviroment The following operating temperatures apply for the safe operation of the product: Standard version Military version -25 °C ... +40 °C -33 °C ... +49 °C General safety instructions – Safe use is ensured only if this manual is followed completely. -
Page 7: Packaging, Transport And Storage
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Packaging, transport and storage Packaging Packaging materials are valuable raw materials and can be reused. The packaging materials should therefore be brought to an appropriate recycling facility. If this is not possible, dispo- se of the packaging materials according to the locally applicable regulations. -
Page 8: Design
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Design Based on an example, the following figure illustrates the main components of the QUICK- CONNECT plugs and sockets. Front part with screwless quick-connect technique for all types of copper con- ductor... - Page 9 Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Technical specifications The technical specifications of the plugs and sockets depend on the design. You will find them in our catalogue or on our website http://www.bals.com. (07.2020) 9 / 16...
-
Page 10: Assembly And Disassembly
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Montage und Demontage Danger Danger to life by electrical voltage The supply cable may carry high electrical voltage that is fatal. Pay attention to the five sa- fety rules of electricity: 1. De-energise 2. - Page 11 Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) 7. Check whether the individual conductors are seated tightly by pulling them lightly. If this is not the case, open the terminal and repeat the previous step. 8. Connect the housing and the front part until the snap-on lock (6) latches.
-
Page 12: Disconnecting A Cable To A 16-A / 32-A Plug And Connector
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) 10. Check that the cable is seated tightly in the plug or connector. Disconnecting a cable from a 16-A / 32-A plug or connector 1. Make sure that the cable is de-energised. - Page 13 Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) 4. Push the housing and the cable gland back on the cable until the connections in the front part are easily accessible. 5. Open the contact slide (4) by forcing it with a screwdriver and pull the individual con- ductors from the terminals.
-
Page 14: Cleaning And Care
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Cleaning and care It is recommended to clean the device as required. Use a dry cloth to clean the device. Use a wet cloth if the device is very dirty. DANGER Electrical voltage The device contains parts that carry hazardous voltage that may be fatal. -
Page 15: Decommissioning And Disposal
Installation manual plugs and connectors INNOLINQ QUICK-CONNECT (16/32A) Decommissioning and disposal Send the worn-out product for recycling or for proper disposal. Always make sure to observe and follow the local regulations. The product should not be disposed of in household waste. Environmental damage and risk to personal health are avoided with proper disposal. - Page 16 Germany Installation manuel in another language can be found on www.bals.com. Subject to technical modifications and typographical errors Disclosure to third parties only with the consent of Bals Elektrotechnik GmbH & Co. KG. All rights reserved. Only valid at the time of printing. Update when reused.
