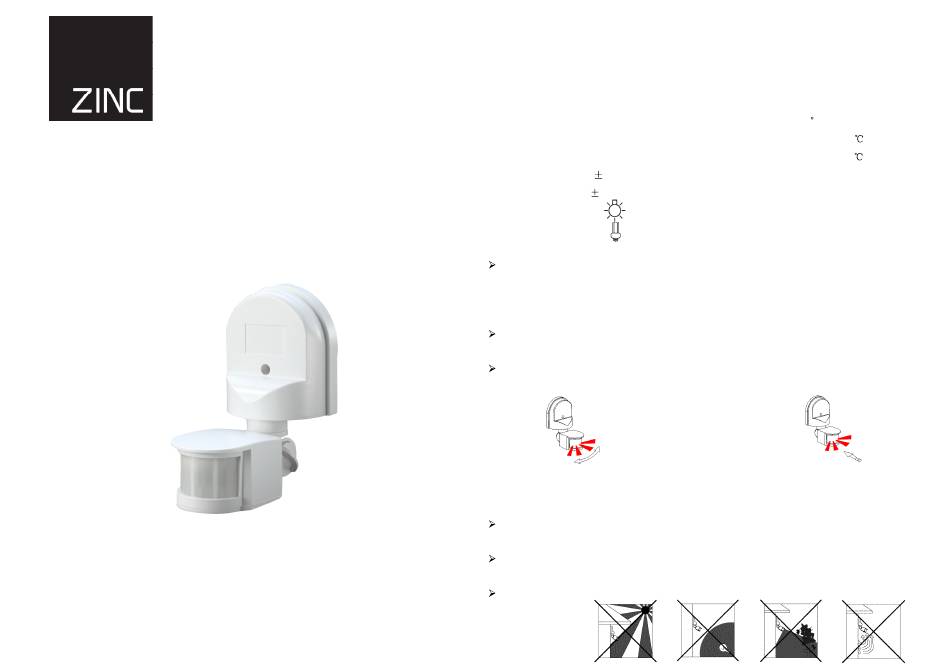

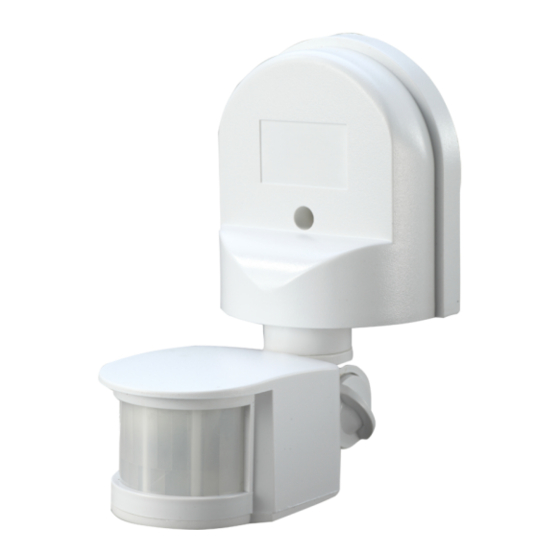

Zinc ZN25151 User Instructions

Dion 180 Degree
PIR Sensor
ZN25151
LED Compatible
User Instructions
Welcome to use ST10A Infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from
human as control-signal source and it can start the load at once when one enters detection field.
It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 220-240V/AC
Power Frequency: 50Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay: Min.10sec 3sec
Max.7min 2min
Rated Load: Max.1200W
300W
FUNCTION :
Can identify day and night: The consumer can adjust working state in different ambient light.
It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can
work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As
for the adjustment pattern, please refer to the testing pattern.
SENS adjustable: It can be adjusted according to using location. The detection distance of
low sensitivity could be only 5m and high sensitivity could be 12m which fits for large room.
Time-Delay is added continually: When it receives the second induction signals within the
first induction, it will restart to time from the moment.
Good sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains,
tall plants etc.
Detection Range: 180
Detection Distance: 5-12m (<24 ) adjustable
Working Temperature: -20~+40
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 1.8-2.5m
Detection Moving Speed: 0.6-1.5m/s
Poor sensitivity
