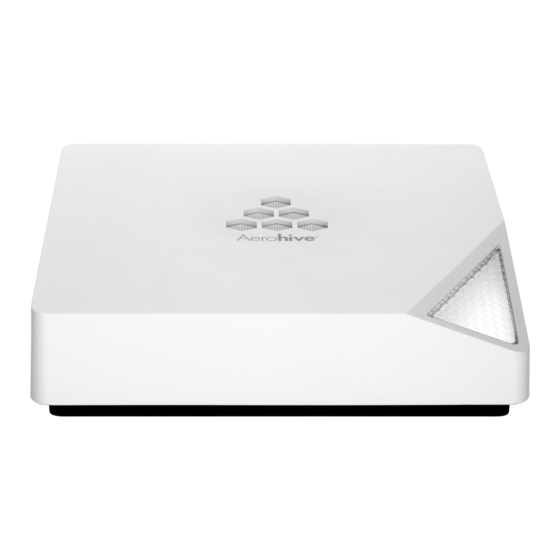

Aerohive HiveAP 320 Quick Start

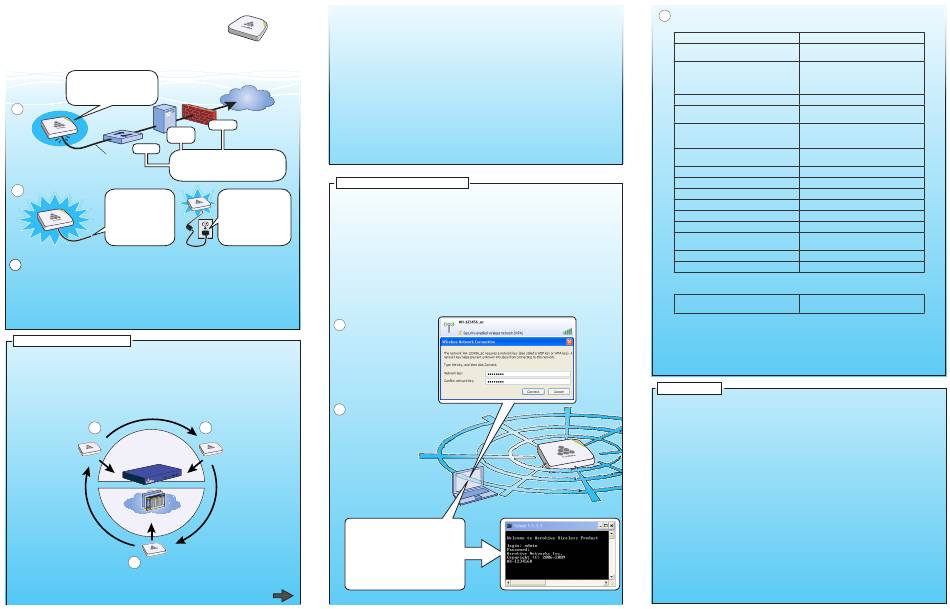

Aerohive QuickStart
for the HiveAP 320
This QuickStart guide explains how to set up a HiveAP 320 as either a managed HiveAP or as a
management AP, and how to mount it on a ceiling or wall. To register, get product documentation,
and download software updates, visit www.aerohive.com/support.
Connect a standard Ethernet
cable with RJ-45 connectors
from ETH0 on the HiveAP 320
to a switch.
1
DHCP
Server
Switch
Eth0
Ethernet Some other network devices (They
Cable might all be incorporated in the same
device, such as a router or firewall.)
2
If the switch provides
PoE (Power-over-
Ethernet), cabling the
HiveAP to the switch
will cause the HiveAP
to power on in a few
seconds.
3
After you cable the HiveAP to an Ethernet network and power it on, it automatically
attempts to get its network settings through DHCP and contact HiveManager. The process
typically takes about five minutes to complete. If you see the HiveAP listed on the Monitor >
Access Points > HiveAPs page in the HiveManager GUI, the initial setup is complete and you
can now begin managing the HiveAP through HiveManager.
If the HiveAP does not appear in the HiveManager GUI after about ten minutes, read the
rest of this guide to understand how the HiveAP attempts to contact HiveManager and what
you can do to help establish a connection between the two devices.
Connecting to HiveManager
By default, a HiveAP acts as a DHCP client and gets its network settings automatically from a
DHCP server. (You can also configure it with static network settings through the CLI. See the
next section, "Using the Virtual Access Console".) After a HiveAP has its network settings, it then
acts as a CAPWAP client and sends CAPWAP Discovery messages until HiveManager, acting as
the CAPWAP server, responds. CAPWAP (Control and Provisioning of Wireless Access Points) is a
protocol that access points use to contact a management device and communicate with it.
When a HiveAP goes online for the first time without any specific CAPWAP server configuration
entered manually or received as a DHCP option, it progresses through this cycle of CAPWAP
connection attempts:
(a) The HiveAP tries to
a
connect to HiveManager
using the default domain
HiveManager
name "hivemanager.
or
<local_domain>:
HiveManager Virtual
12222", where
Appliance
<local_domain> is the
domain name that a
DHCP server supplied
to the HiveAP and
12222 is the UDP port
number. If a DNS server
has been configured
to resolve that domain
name to an IP address, the
HiveAP and HiveManager
HiveManager Online
then form a secure CAPWAP
connection on port 12222.
If the HiveAP cannot make a
CAPWAP connection to HiveManager
on port 12222, it tries to reach it by
list), it responds and they form a secure
using TCP port 80: hivemanager.<local_
c
CAPWAP connection. If the HiveAP cannot make a
domain>:80.
CAPWAP connection to HiveManager Online on UDP port
12222, it tries to reach it on TCP port 80. If that proves
unsuccessful, the HiveAP returns to its initial search
through a DNS lookup and repeats the cycle.
P/N 330024-05 Rev. A
A HiveAP connected directly to the network is called a portal. You can also place a HiveAP
within radio range of a portal so that it forms a wireless link through the portal to the wired
network. This kind of HiveAP is called a mesh point. A mesh point initially forms a hive with
its portal using a default hive called hive0. Through this link, the mesh point can reach the
network and get its network settings from the DHCP server. Then it can form a CAPWAP
connection with HiveManager. (To add mesh points after changing the hive name, first
connect them to the wired network. Next, push the configuration with the new hive name and
password to them from HiveManager. Finally, deploy them as mesh points.)
If the HiveAP forms a CAPWAP connection with the Aerohive redirection server and its serial
number has been entered in an ACL, the redirection server automatically redirects the
CAPWAP connection to the corresponding HiveManager Online VHM (virtual HiveManager).
Internet
The redirection server does this by sending the HiveAP the HiveManager domain name or IP
address as its new CAPWAP server and the name of the appropriate VHM. If the HiveAP is
currently using HTTP, the redirection server includes the configuration needed for the HiveAP
to continue using it. Similarly, if the HiveAP is configured to access the public network through
Firewall
an HTTP proxy server, the redirection server saves the relevant settings on the HiveAP so it
will continue using the HTTP proxy server when connecting to HiveManager.
If the redirection server does not have the HiveAP serial number, the ACL ignores the CAPWAP
connection attempts, and the HiveAP repeats the connection cycle shown previously.
Using the Virtual Access Console
If the switch does not As explained in the previous section, after connecting a HiveAP to the network and powering
provide PoE, use the it on, it acts as a DHCP client and tries to get its network settings automatically from a DHCP
AC/DC power adaptor server in VLAN 1. However, if there is no DHCP server in that VLAN, if the native VLAN for the
(available as an
network segment is not 1, or if you just want to assign it a static IP address, then you need to
accessory) to connect
access the CLI and define the network settings yourself.
the HiveAP to a 100-
One approach is to use a console cable, which is available from Aerohive as an accessory.
240 AC power source.
Another is to use the virtual access console. This is a way of accessing the CLI on a HiveAP
wirelessly through a special SSID that the HiveAP, by default, automatically activates for
administrative access when it has no configuration and cannot reach its default gateway.
The default virtual access console SSID name is "<hiveap-hostname>_ac". The default host
name of a HiveAP consists of "AH-" plus the last six digits of its MAC address; for example,
AH-123456. In this case, the name of the default virtual access console SSID would be "AH-
123456_ac". By default, this SSID uses aerohive as the PSK (preshared key) for authenticating
user access. To access the virtual access console, do the following:
4
Using your wireless client,
scan for wireless networks.
If you are within range, an
SSID such as "AH-123456_ac"
appears.
Select it, and when
prompted to enter a
network key, type aerohive
and then click Connect.
5
Check the IP address of the
default gateway that the
(b) If the DNS server cannot
DHCP server on the HiveAP
b
resolve the domain
assigned your client. Then
name to an IP address,
make an SSH or Telnet
the HiveAP broadcasts
connection to the HiveAP
CAPWAP Discovery
at that IP address.
messages on its local
(Note that the Telnet
subnet. If HiveManager
is on the local network connection is protected by
and responds, they
WPA2 security mechanisms.)
form a secure CAPWAP
When prompted to enter your
connection.
credentials, enter the default
Aerohive login name (admin)
(c) If the first two searches
and password (aerohive).
for a local HiveManager
produce no results, the
HiveAP tries to contact
HiveManager Online at
C:\>ipconfig
redirector.aerohive.com:12222.
Windows IP Configuration
If the Aerohive redirection
server has a serial number for
Ethernet adapter Wireless
Network Connection:
that HiveAP in its ACL (access control
Connection-specific DNS Suffix
IP Address. . . . . . : 1.1.1.2
Subnet Mask . . . . . : 255.255.255.0
Default Gateway . . . : 1.1.1.1
C:\>telnet 1.1.1.1
Beacons
Beacons
Wireless
Client
. :
6
After logging in to the virtual access console, you can view the status of various
functions and make configuration changes. Here are some commonly used commands:
Use these commands: To do the following:
show interface
Check the status of both wired and
wireless interfaces
show interface mgt0
See the network settings (IP address,
netmask, default gateway) and VLAN
ID of the mgt0 interface, which is the
management interface of the HiveAP
no interface mgt0 dhcp client
Disable the DHCP client
interface mgt0 ip <ip_addr>
Set the IP address and netmask of the
<netmask>
mgt0 interface
interface mgt0 native-vlan <id>
Set the native (untagged) VLAN that the
switch infrastructure in the surrounding
wired and wireless network uses
interface mgt0 vlan <id>
Set the VLAN for management and
control traffic
show capwap client
See CAPWAP client settings and status
show hive
See the hive name
show hive <string> neighbor
Check for any neighboring hive members
hive <string> ...
Create a hive and set its parameters
show ssid
See a list of all SSID names
ssid <string> ...
Configure an SSID
interface { wifi0 | wifi1 } ssid
Bind an SSID to a wireless interface in
<string>
access mode
save config
Save the configuration to flash
reboot
Reboot the HiveAP
Only set the following command when managing HiveAPs through HiveManager or
HiveManager Virtual Appliance. Do not use it with HiveManager Online.
capwap client server name
Set the IP address or domain name of the
<string>
CAPWAP server (HiveManager)
To see a list of commands, and their accompanying CLI Help, type a question mark ( ? ).
For example, to see all the show commands, enter show ?
If you want to find a command that uses a particular character or string of characters,
you can do a search using the following command: show cmds | include
<string>, where <string> is the word or string of characters you want to find.
Device- and platform-specific CLI reference guides are available online. (To learn how to
access them, see "Where to go for more information" elsewhere in this document.)
Status LEDs
The five status LEDs on the top of the HiveAP 320 indicate various states of activity through
their color (dark, green, amber, and red) and illumination patterns (steady glow or pulsing).
The meanings of the color + illumination patterns for each LED are explained below.
Power
• Dark: No power
• Steady green: Powered on and the firmware is running normally
• Pulsing green: Firmware is booting up
• Steady amber: Firmware is being updated
• Pulsing amber: Alarm indicating a firmware issue has occurred
• Steady red: Alarm indicating a hardware issue has occurred
ETH0 and ETH1
• Dark: Ethernet link is down or disabled
• Steady green: 1000 Mbps Ethernet link is up but inactive
• Pulsing green: 1000 Mbps Ethernet link is up and active
• Steady amber: 10/100 Mbps Ethernet link is up but inactive
• Pulsing amber: 10/100 Mbps Ethernet link is up and active
WIFI0 and WIFI1
• Dark: Wireless interface is disabled
• Steady green: Wireless interface is in access mode but inactive
• Pulsing green: Wireless interface is in access mode and active
• Steady amber: Wireless interface is in backhaul mode but inactive
• Pulsing amber: Wireless interface is in backhaul mode and connected with hive members
• Alternately green/amber: Wireless interface is in backhaul mode, searching for hive members
