Summary of Contents for SA F1 Series

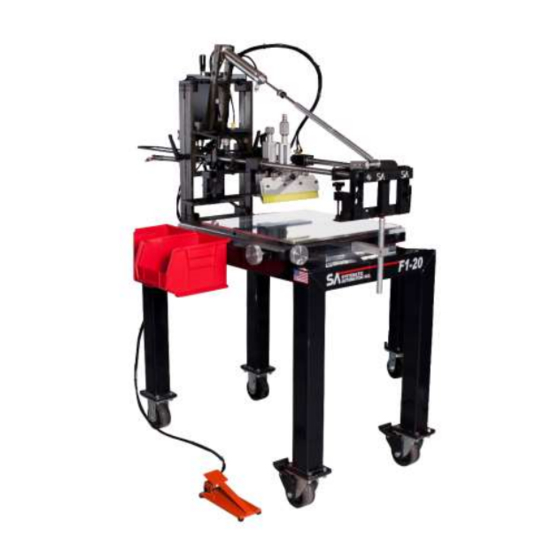

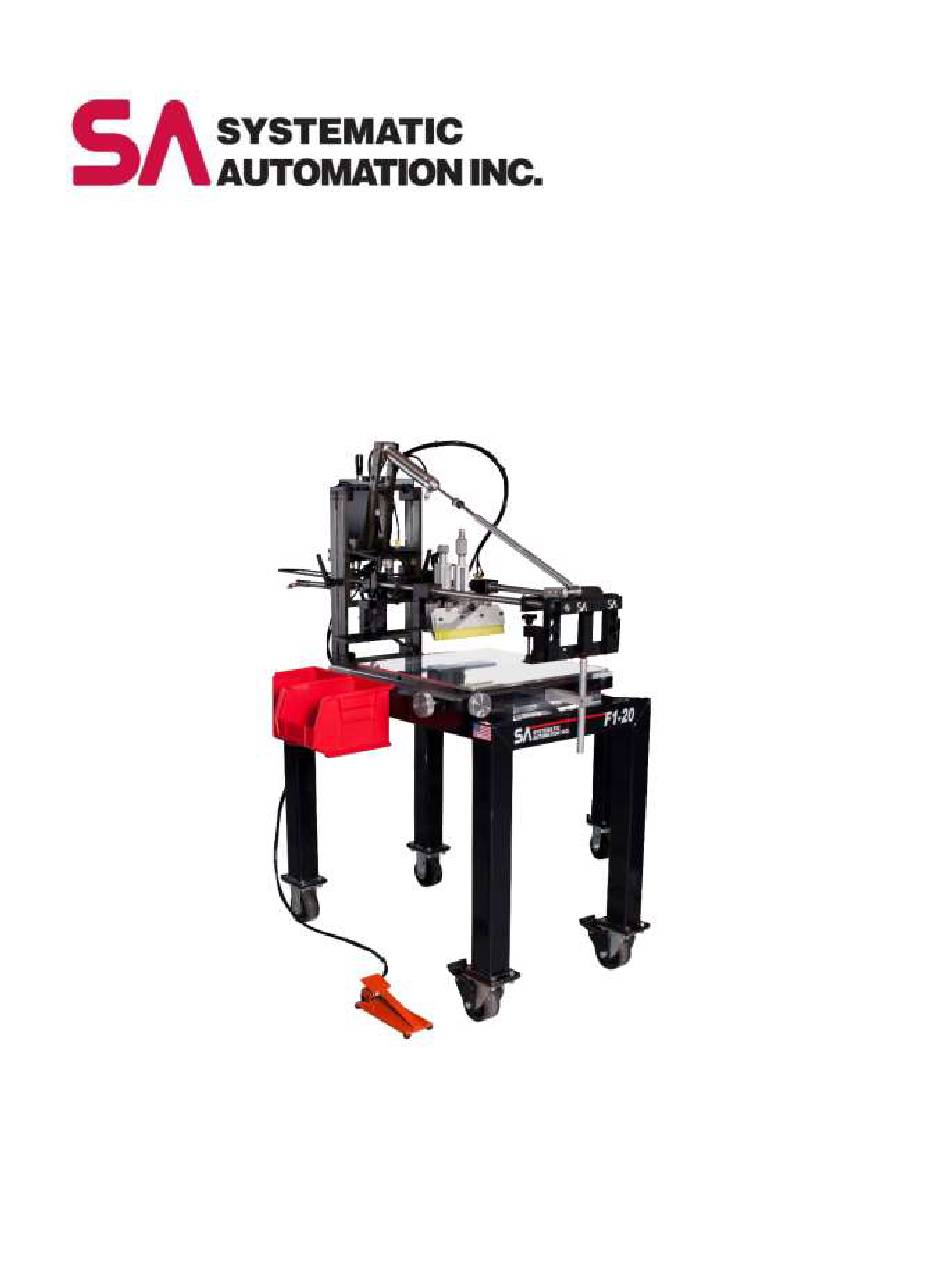

- Page 1 F1 Series Precision Screen Printer Manual Installation :: Operation...
- Page 2 Set Up: Start Up Instructions 1. Main Air Supply. *Open valve slowly after attaching air. 2a. Regulator (Main Air): Factory set at 80 PSI. 2b. Main air gauge. 3a. Regulator (Squeegee/Print head): Factory Set at 30 PSI. 3b. Squeegee air gauge. 4.
- Page 3 1. Squeegee down adjustment: To adjust the down distance of the 1a. Flood Bar. squeegee, turn knob located above the 1b. Flood Bar Up/Down Adjustment: To adjust the down distance of the flood bar, turn squeegee cylinder. The red, yellow and knob located above flood bar cylinder.
- Page 4 1. Press Frame Assembly: Allows for up to 12 inches of travel for height adjustments. 2. Adjustable Locks: Loosen to make adjustments to carriage height using the press frame hand wheel in conjunction with front post rest. 3. Press Frame Hand Wheel: Turn clockwise to raise and counterclockwise to lower the front carriage assembly.
- Page 5 1. Screen Frame Clamps: Loosen and tighten the 4 screen frame clamps to secure screen. 2. Front screen frame holder: Loosen front knobs and slide back to the front screen holder grip finger when cleaning or replacing screen.
