Summary of Contents for NexxTech 4219545

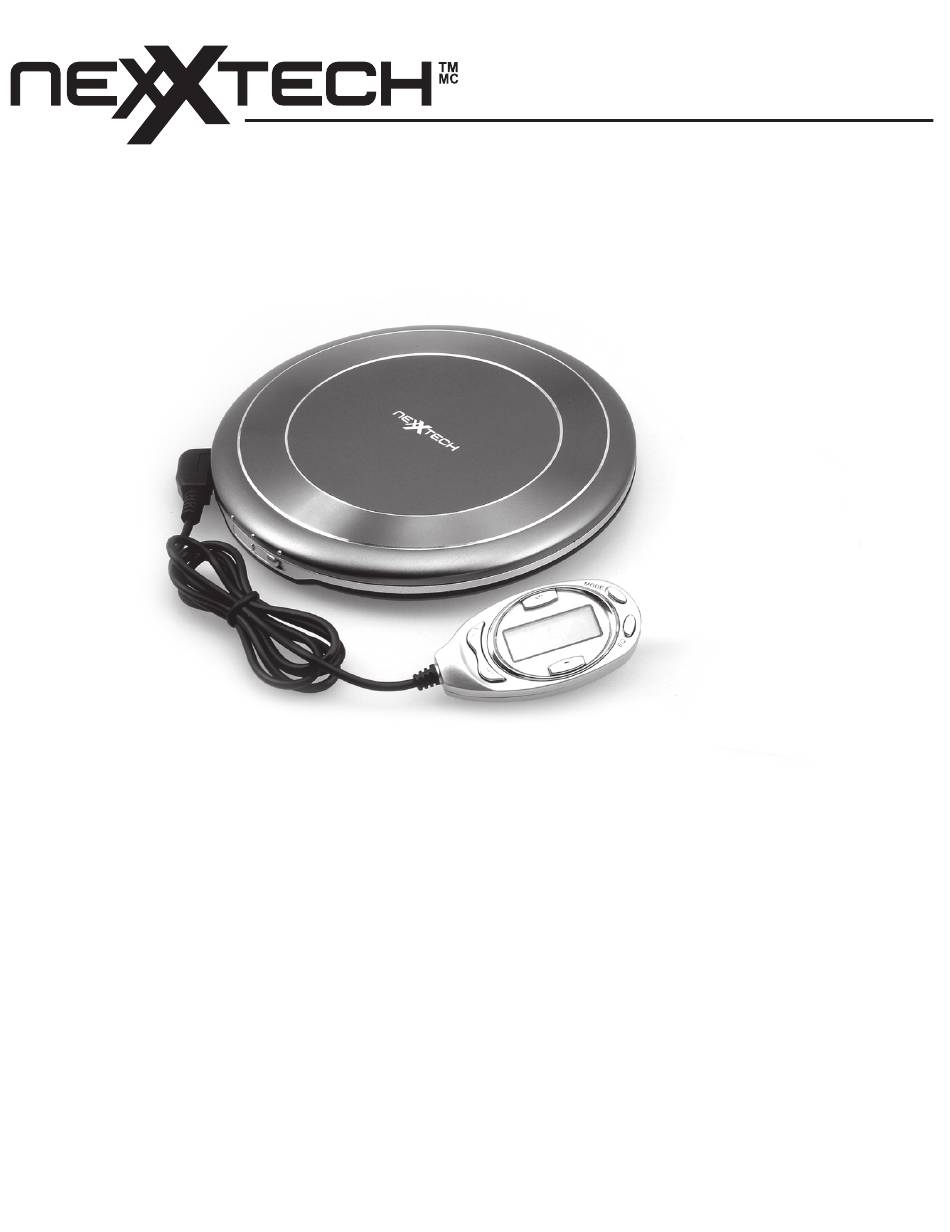

- Page 1 4219545 Slim Personal MP3/CD Player USER’S MANUAL...
-
Page 2: Table Of Contents
Contents Safety information ..............3 Features ..................4 Anti-shock function ..............4 Accessories ................5 DC Power supply ..............5 AC Power supply ..............5 Rechargeable battery instructions ...........6 External battery box ..............7 Components of main unit ............7 System connection ..............8 Instructions for control button on main unit ......9 Location of in-line controller ..........10 LCD display on in-line controller .......... -
Page 3: Safety Information
Safety Information • Before using, please verify that the local supply voltage matches that of the AC adapter. • Before turning on the player make sure all cables are connected properly and the volume level is set to minimum. • Do not use in moist or damp locations and protect from rain. •... -
Page 4: Features
Features 1. Compatible with CD/CD-R/MP3/CD-RW 2. Long ESP: MP3/120S’ , CD/40S’ 3. EQ function: Concert, theatre, stadium, church, 3d round, live, standard. 4. Programmable function. 5. Repeat play for single song or whole disk. 6. HOLD function. 7. Inline controller with LCD display. 8. -
Page 5: Accessories
Accessories 1. Audio cable (Optional) (1) 2. Earphones (1) 3. AC adapter (1) 4. In-line remote (1) 5. Chargeable batteries (2) 6. User’s Manual (1) DC Power Supply 1. Battery operation: a) This unit uses special batteries that are included. b) Open the top cover of the main unit. -
Page 6: Rechargeable Battery Instructions
Rechargeable Battery Instructions This player has a rechargeable function (only for use with the re- chargeable battery 1100mAh NI Mh*2). The new battery must be fully charged for the first time. Open the battery compartment and insert the battery. Note: With correct polarity. Otherwise the battery could be damaged. 1. -
Page 7: External Battery Box
External Battery Box This player has an external battery box. • Press the arrow position lightly with the thumb according to arrow direction. • Then open the external battery box • Insert 2 AA batteries according to “+” “-” polarity markings inside the battery compartment. -
Page 8: System Connection
System Connection Connection with Hi-Fi 1. Connect Audio Output cable to the LINE OUT port on the player. 2. Connect one end of the AC/DC adapter with DC 4.5V output port on player and the other end with AC power outlet. Instructions for control button on main unit 1. -
Page 9: Instructions For Control Button On Main Unit
Instructions for control button on main unit 1. PLAY/PAUSE ( • Press (PLAY/PAUSE) to begin playing, while playing pressing this button again will pause the player. Press it again and the player will resume play. 2. STOP ( ) • When playing, press (STOP) and the player will end operation, press again to turn off. -
Page 10: Location Of In-Line Controller
Location of in-line controller... -
Page 11: Lcd Display On In-Line Controller
LCD display on in-line controller 1. MP3 Disc 2. CD disc 3. Charge 4. Program play 5. Anti-Shock 6. Repeat the single song 7. Repeat entire disk 8. Disc playing 9. PLAY/PAUSE 10. Play song 11. Play time -- minute 12. -
Page 12: Operation Of In-Line Controller Buttons
Operation of in-line controller buttons 1. MODE Press the key once for repeat one, press again and it repeats the entire disk. Press the third time to cancel the repeat play. When stopped, press this key to enter program mode. LCD display. -
Page 13: Troubleshooting
Troubleshooting Problem Check the main point CD door will not close Disc may not be in place The player is in lock state Disc may not be in place Disc may be defective or badly scratched Unable to playback disc Disc may be upside down Disc may not be a standard CD/MP3 disc Battery may not be installed correctly... -
Page 14: Specifications
Specifications Dimensions (approx): 135mm x 132mm x 17mm Weight: about 148.6 g. (not including the battery) Operation temperature: +5 °C ~ +35 °C Operation humidity: 5% ~ 90% Type of disc: CD, MP3, CD-R, CD-RW Audio: Frequency response: 20Hz ~ 20KHz Signal-to-noise ratio: ≥70dB Output: 20mW+20mW/32 Ω... -
Page 15: Warranty
LIMITED WARRANTY • Defacing the serial number, or using your Product for Who is Providing This Warranty? commercial or institutional purposes, voids this warranty. • Orbyx Electronics, LLC (“Orbyx”), as the distributor of this Centrios™ product (your “Product”). Are There Other Warranties? What Does This Warranty Cover? •...
