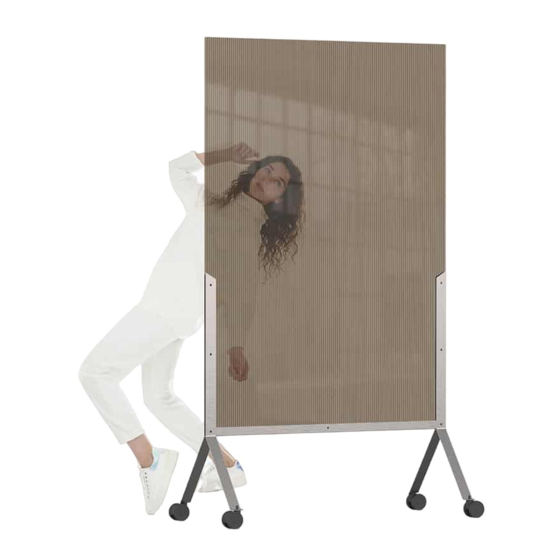

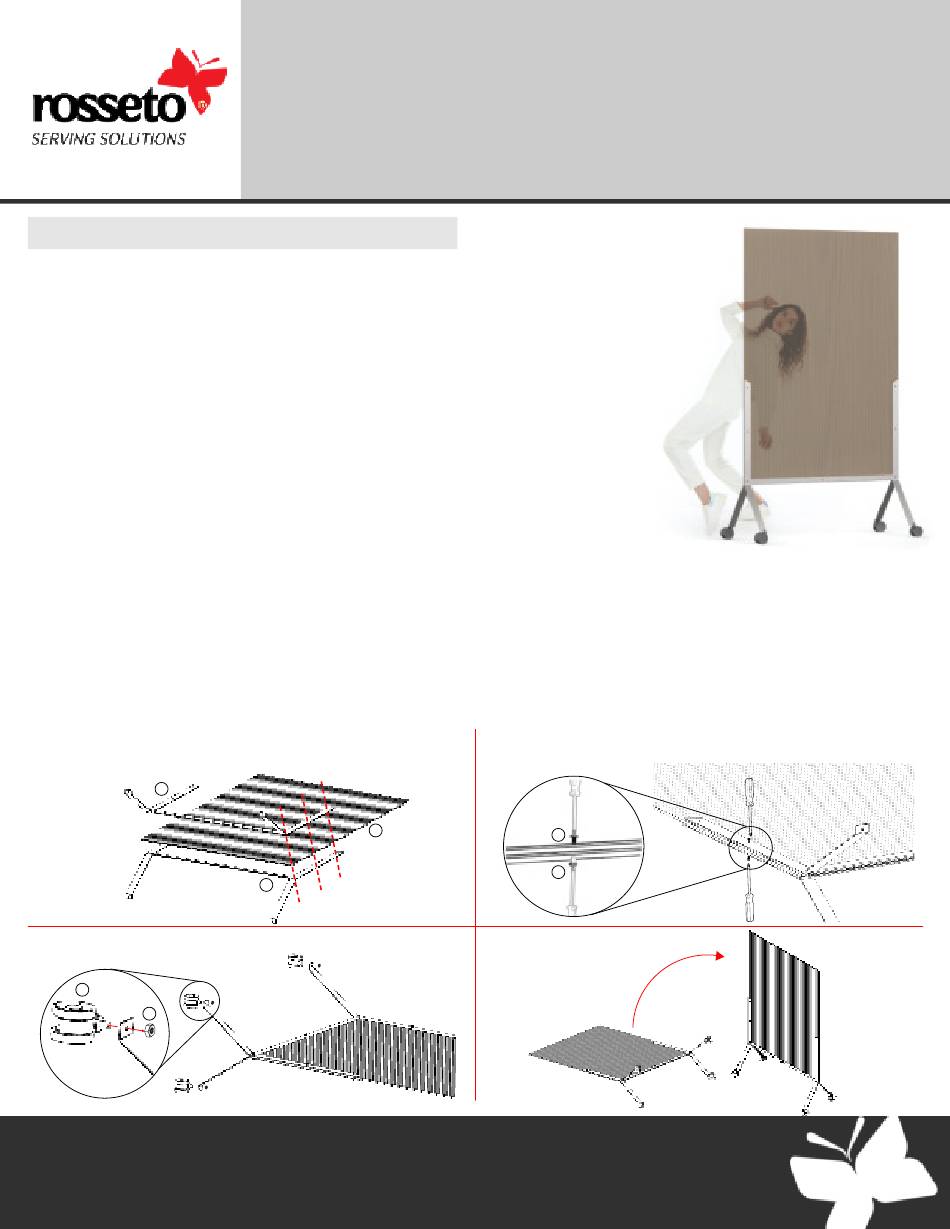

rosseto Avant Guarde RD001 Instruction & Specification Sheet

SETTING UP YOUR PRODUCT

* Two Phillips screwdrivers and wrench required for assembly.
1. Carefully remove all parts from packaging.
2. Make sure you have all parts listed:
a. 2 Metal Leg Assemblies
b. 1 Clear or Bronze Panel
c. 7 Barrel & Screws
d. 4 Casters with locks
e. 4 Hex Nuts
3. To assemble, lay 1 metal assembly (a) face down. Place the panel (b) on top where
the holes aligh. Then place the 2nd metal assembly (a) face up on top of panel. It is
easiest to do this on a large table or clean floor space. Move parts carefully so they do
not become scratched. See Figure 1.
4. Place the screw barrel (c) in one side of the hole and place the screw (c) on the
opposite side. Hold the barrel in place with one screwdriver and use a second screw
driver to tighten the screw. Repeat for remaing screws. See Figure 2.
5. Assemble casters (d) to the bottom of the metal assembly by placing the threading in caster hole and securing with hex
nut (e). Tighten with wrench. See Figure 3.
6. Once all screw are in, carfully stand the divider up. See Figure 4.
7. Check to make sure all screws are tight and in place. You may need to adjust a few.
Figure 1
a
Figure 3
Secure casters with hex nut.
d
e
NEED ASSISTANCE?
Avant Guarde™ Room Divider
Instruction & Specification Sheet
b
a
Place parts as shown
and align holes in metal
and polycarbonate.
Customer Service Support: 847-763-1215
Address: 3714 Jarvis Avenue Skokie, IL 60076
Website: www.rosseto.com
Figure 2
Attach parts together with barrel
and screw.
c
c
Figure 4
Carefully stand divider up and
retighten loose screws.
RD001 - Clear
RD002 - Bronze
