Up and Down
Indoor Drying Rack
TG1209
Capacity Load Weight :
①
Name of Each Part
210 （ 410）
BASE
Parts Included
OPERATING ROD
Please double check if all the components are included. If there are any missing or damaged parts please contact us or the retailer of the purchased item.
The following signs have been used in this Installation Guide
Spread of damage is expected
Attach this Installation if product is going to be transferred over to or lent to a third party
For any inquiries concerned with this product, please contact us or the retailer of the purchased item.
TG1609
8kg
1330 （ 1730）
1268 （ 1668）
455
303
20
20
BODY
BAR
1200 （ 1600）
800
Prohibited Actions
●This product is intended for indoor use only.
●It is not intended to be used for any other purpose
than hang drying laundry.
Installation Guide
Thank you for purchasing our Up and Indoor Drying Rack. This prod-
uct is intended for hang drying laundry indoors by manually elevat-
ing and lowering a laundry drying pole that is mounted to the
cieling. Please read this guide carefully and exercise safety precau-
tions when using this product.
※To the installer.
Please hand this guide over to the end user after installation.
455
303
303
20
20
BODY
BASE
OPERATING
MOUNTING SCREW
ROD HOOK
for OPERATING ROD HOOK
Necessary to perform
※The dimensions in （ ）are of TG1609
20
MOUNTING SCREW
FIXING SCREW
for BASE
for BODY
1
Advertisement
Table of Contents
Related Manuals for TAKARA DRY-WAVE TG1209
Summary of Contents for TAKARA DRY-WAVE TG1209

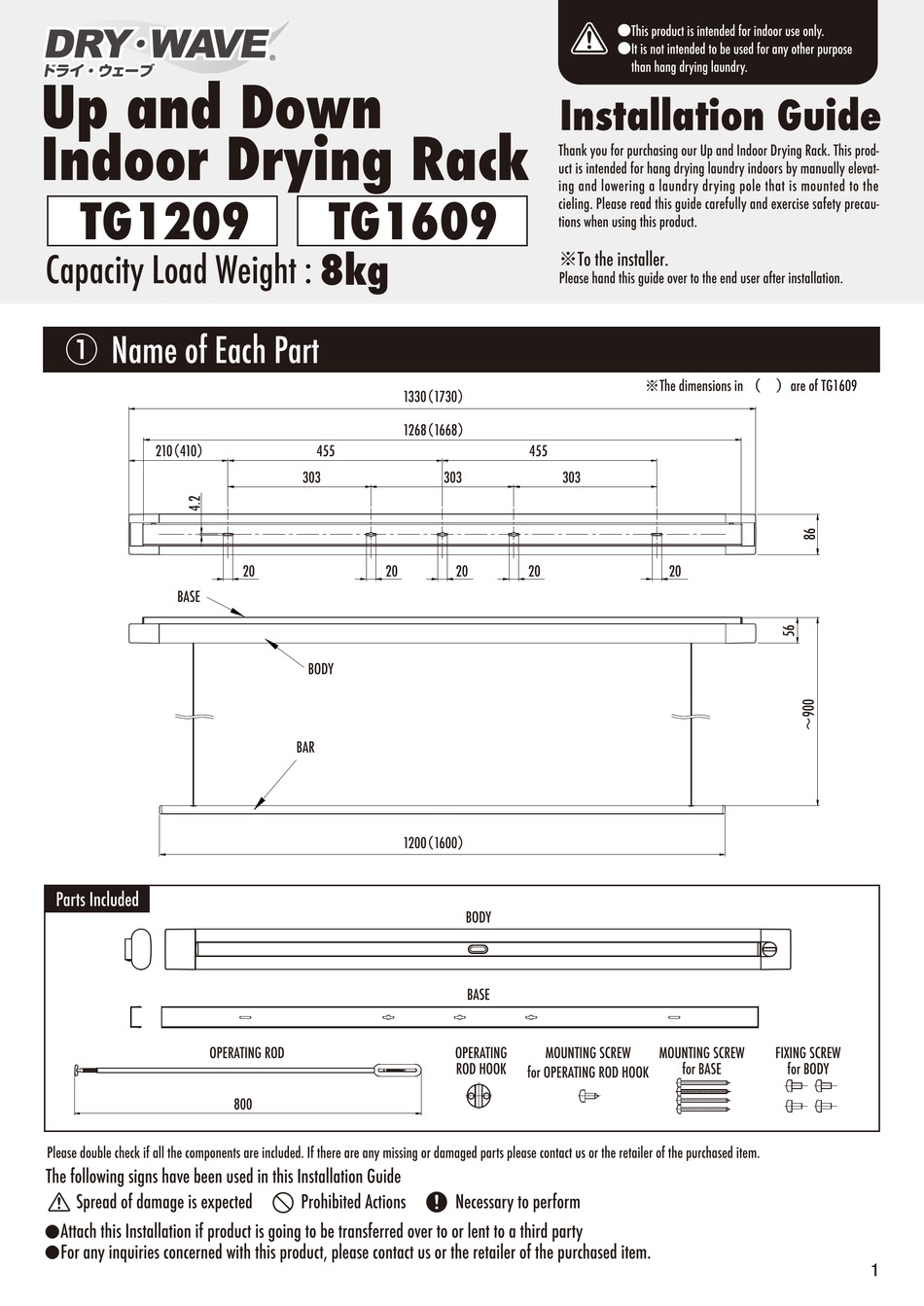

- Page 1 ●This product is intended for indoor use only. ●It is not intended to be used for any other purpose than hang drying laundry. Up and Down Installation Guide Indoor Drying Rack Thank you for purchasing our Up and Indoor Drying Rack. This prod- uct is intended for hang drying laundry indoors by manually elevat- ing and lowering a laundry drying pole that is mounted to the TG1209...
- Page 2 ② Safety Cautions Warning Can result in death or serious injury. Sign Important Matter Hazards・Damages ●It is not intended to be used for any other purpose than hang drying laundry. ●Can cause injury or damage to property. ●Do not install near combustion appliances. Keep away from combustion appliance ●Can cause fire hazards.
- Page 3 ①Decide on the Please read before mounting location to mount. ●Discuss with the owner of the product before deciding on whether to place the lock part (location of the OPERATING ROD) on the right or left side. Shown in the figure below, the LOCK part of the BODY should go on the right side of the 4 holes on the side of base can be seen. In addition, make sure there is enough space for the screwdriver when mounting with a screw through the round whole on the side of the base.
- Page 4 ④ Operational Instructions Caution Can cause injury or damage to property. Sign Important Matter Hazards・Damages ●Do not elevate or lower the pole with laundry hung on the pole. ●Can cause damage to property. ●Stop using if the cord gets tangled up, starts to wear-down or ●Can cause injury or damage to property.
- Page 5 ※When the bar is slanted （ Horizontal Adjustment） 3.To Store Away the Bar Slowly pull the center of the bar down using your hand about 4-5cm After installment, elevate and lower the bar 2 or 3 times to fit in then release the bar.
- Page 6 Product Name: Up and Down Indoor Drying Rack Purpose: Indoor Laundry Drying Rack Item Number: TG1209/TG1609 Gross Weight: 3100g/3800g Material: Aluminum, Stainless, Steal, ABS, POM, PA6resin, etc. Country of Origin: China・Japan Finished: Japan 2-2-30 Nagata Eminence Bld. 2F, Nagata Naka,Higashi Osaka-City, O saka, TAKARA INDUSTRY CO.,LTD. 577-0013, Japan TEL: +81-6-7711-3080 https://www.takaranet.co.jp/eng/ 200115...
