Summary of Contents for Seidio G2500

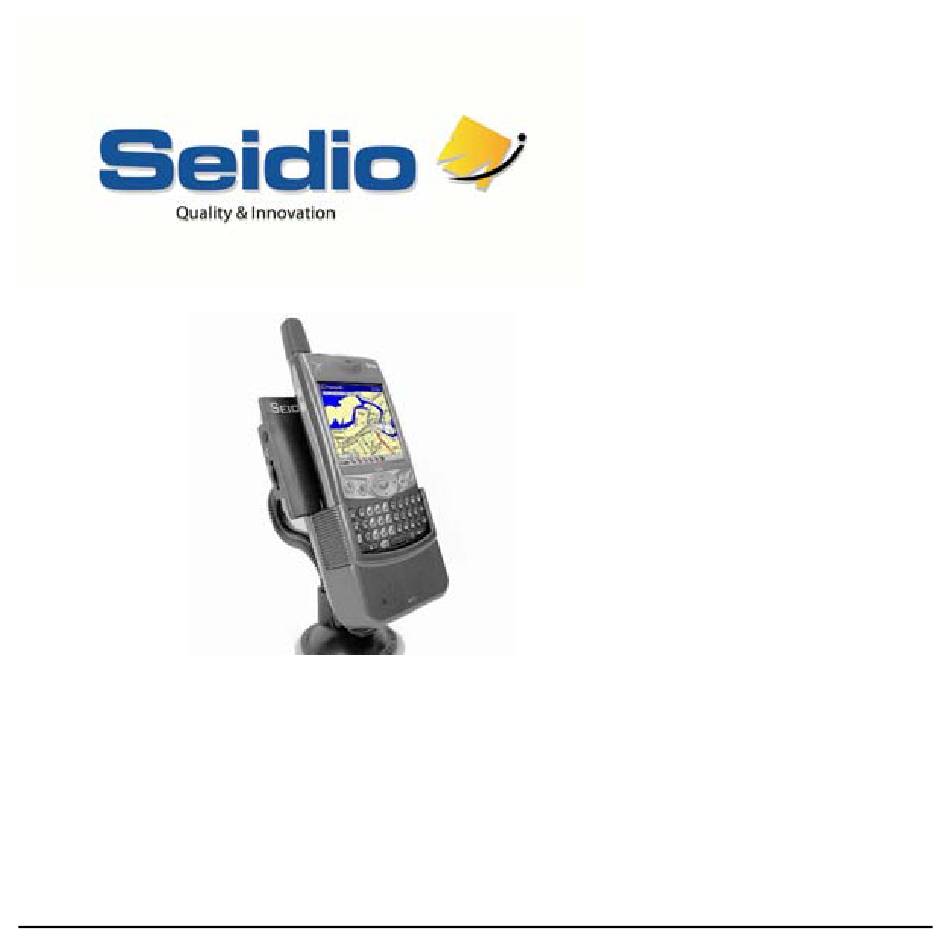

- Page 1 G2500 GPS-Ready Car Kit User Guide...
-
Page 2: Table Of Contents
CONTENT What is in the box----------------------------2 Features ---------------------------------------3 Get to know your G2500 mount --------- 4 Components --------------------------------- 5 Power and charge your PDA ------------ 6 GPS ready connection -------------------- 8 DIY cable pin layout ---------------------- 10 Speaker function -------------------------- 11... -
Page 3: What Is In The Box

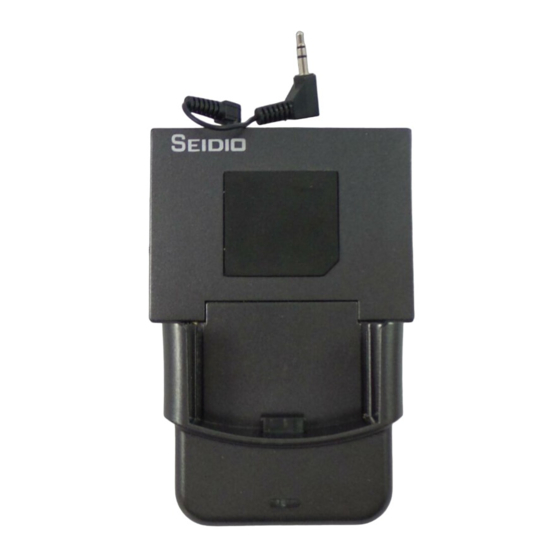

What is in the Box Seidio G2500 GPS Ready Cradle 8” Strong Suction Windshield Pedestal Slide and Lock Air Vent Pedestal Degree Swivel Adapter AMPS/Locking Plate Earpiece (for Smartphone models only) External Microphone (for Smartphone models only) Audio Cable (for selected models only) -
Page 4: Features
FEATURES Model Specific- Securely hold and charge your PDA by sliding it into the cradle without having to take the time to plug in additional wires and cables. Integrated Speaker with Volume Control- Improved sound output from your GPS as well as the ability to be used as a speakerphone when attached to your cellular phone. -
Page 5: Get To Know Your G2500 Mount
GETTING TO KNOW YOUR G2500 MOUNT... -
Page 6: Components
COMPONENTS... -
Page 7: Power And Charge Your Pda
How to Power your cradle and charge your PDA? The G2500 mount comes with a car charger. To power the cradle, simply plug the charger into the 12V DC input port on the cradle and the other end to the car’s 12V socket. - Page 8 Warning: Car charger can only be used to charge the G2500. When use with other products it may cause damage. It is suggested that users turn off the wireless Lan when they use the G2500 in order to charge the PDA efficiently.
-
Page 9: Gps Ready Connection
GPS Ready Connection (For Wired GPS receiver users only) The Seidio G2500 GPS ready mount has a built-in RJ-11 connector on top of the cradle. You can plug your receiver directly into the cradle for power and the receiver, through the interface of the cradle, will connect the PDA for navigation. - Page 10 For GPS receivers not listed in the table, the “Do it yourself” GPS adaptor cable is available. This cable allows users of other wired receivers to make the cable to connect to the G2500. The cable will have a RJ-11 on one end and four naked wires on the other end.
-
Page 12: Speaker Function
Step 1: Slide your PDA in the cradle. Step 2 : Plug the car charger connector into the cradle then to the 12V port in your car to operate the G2500 Mount. Step 3: Connect the audio cable from the headphone jack on the PDA to the speaker jack on the cradle, which is located on the top left corner of the cradle. - Page 13 Audio cables are not required for the following G2500 models: IPAQ 5100/5400/5500, Treo 600, iQue 3600, and XDAII.
-
Page 14: Additional Power Output
Charge an additional Device using add-on Charging Cable With an Add-on Charging cable (optional), the G2500 can charge an additional PDA, wireless phone or other digital devices such as a FM Transmitter. To use this cable, insert the plug into the DC OUT port located on the right side of the cradle. - Page 15 Charge the Bluetooth GPS receiver using the Bluetooth Receiver Charging Cable • With this "Bluetooth Receiver Charging Cable", you can power and charge your Bluetooth GPS receiver through the DC OUT port on the cradle. • To use, attach one end of the cable to the DC OUT port located on the cradle and plug the other end of the cable into...
- Page 16 At SEIDIO we are dedicated to provide the best quality products and service! If you need any assistance with this product, please contact us by email. For European customers: service@seidio-europe.com For all other countries: service@seidio.com You may also find information and updated user documentation on the Seidio websites, www.seidio.com and...
- Page 17 Thank you for purchasing SEIDIO G2500 GPS Ready Mount Kit! Seidio Inc. See the latest products by visiting us at: www.seidio.com...
