Summary of Contents for Cybertek CP1000B
- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. Low Frequency AC Clamp CP1000B (1000A/20Hz~10kHz) Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...

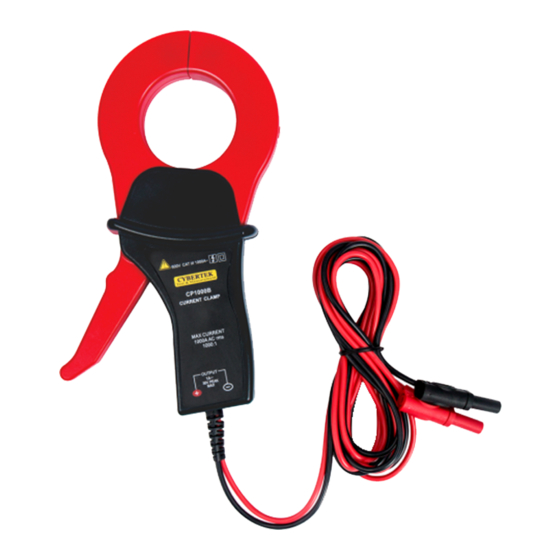

- Page 2 1000A, peak value of 2000A, bandwidth of 10 kHz. The current transfer ratio is 1000:1.Clamp diameter is around 54mm. With its banana plug or BNC output port, CP1000B can be connected to the oscilloscope of any brand, digital multi-meter or power analyzer. It can be widely used in the testing like motor drive, inverter, power switch and avionics.
- Page 3 Shenzhen Zhiyong Electronics Co., Ltd. Accessories Fork Shape Adapter: 6mm (fit banana plug) 3. Product Specification Continuous Current 1000Arms Current Transfer Ratio 1000:1 Bandwidth 20Hz~10kHz ≤3%+5uA 1mA...100mA ≤2%+3uA 0.1A...1A ≤1% Accuracy 1A...10A ≤0.5% 10A...100A ≤0.3% 100A...1000A Relationship between position and accuracy 0.1%(Typical) Clamp diameter 54mm...
- Page 4 Shenzhen Zhiyong Electronics Co., Ltd. 5. Packing List Packing List Name Number CP1000B Red& black fork shape adapter (standard banana plug) Instruction manual and warranty card Test report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang...
