BARRON HN035-01VR Quick Start Manual

HN035-01VR
DC Input Remote Control
On/off Detection Hold Daylight
control area time threshold
Detection coverage
Typical installation height 2.5-4.5m
This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.
Ceiling Mounted
6 5 4 3 2 2 3
1
2
Mounting
height
3
4
5
20070184 REV 1 P1
5
years
Remote
control
Wall Mounted
4 5 6
1 2 3 4 5 6
3
2
1
Mounting
height
1
2
3
Well covered
-1-
Technical data
Operating voltage
Operating current
Output
Stand-by power
Detection area
Hold time
Daylight threshold
Stand-by period
Stand-by dimming level
Microwave frequency
Microwave power
Mounting height
Detection range
Detection angle
Operating temperature
Size
Warranty

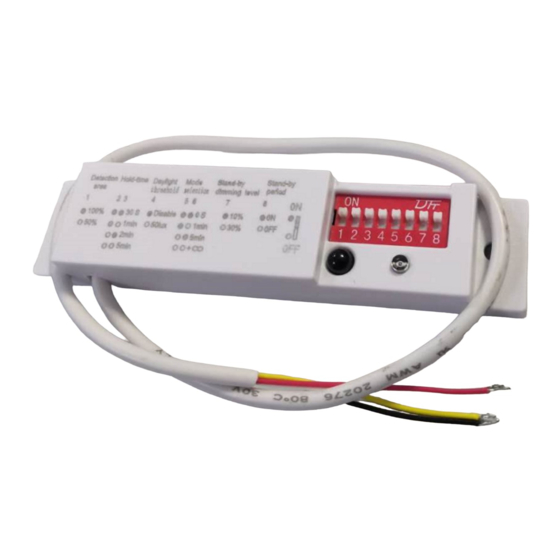

Mechanical structure
Daylight threshold
7 8
Mode selection (8)
Stand-by dimming level (7)
Stand-by period (5,6)
Covered
10.5-15V DC (supply current >50mA)
<30mA
ON/OFF 1-10V
≤0.5W
50% /100%
30s/1min/2min/5min
Disable/50Lux
0s/1min/5min//+∞
10%/30%
5.8GHz±75MHz
<0.3mW
Max.4.5m (ceiling mounted)
ø4-8m (ceiling mounted)
360°（ceiling mounted），150°（Wall Mounted）
-40°C~+80°C
84*18*11 mm
5 years
IR Receiver
Antenna module
Detection area
(1)
Hold time
(2,3)
Daylight threshold
(4)
-2-
Red: VCC
Black: GND
White: DIM +
Black: DIM -
800-533-3948 www.barronltg.com
