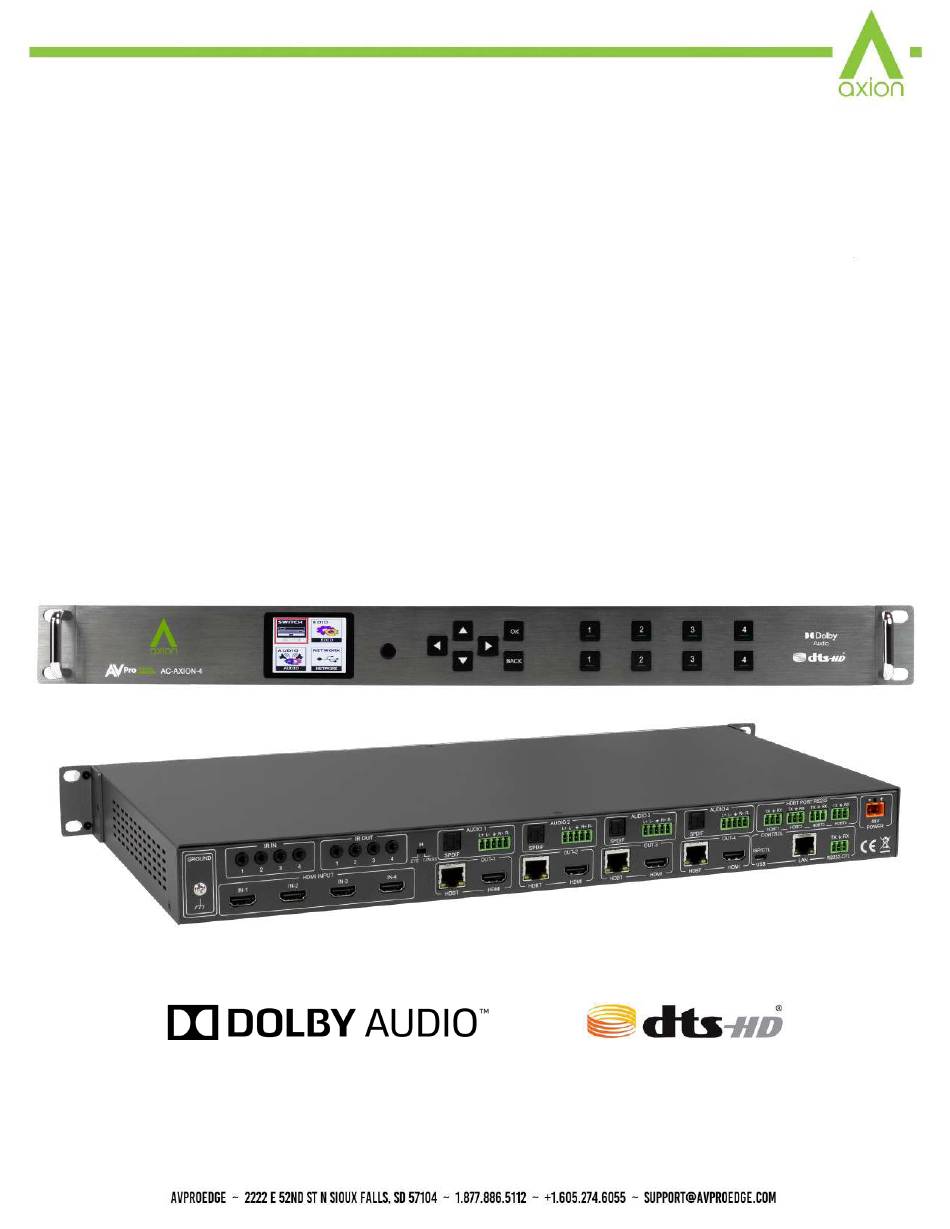

Axion AC--4 User Manual

Avpro edge's 4 hdmi input, 4 hdbaset/hdmi output matrix switcher with dolby atmos & dts audio downmixing and independent resolutions scaling and a robust user interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVPro Edge's 4 HDMI Input, 4 HDBaseT/HDMI Output
Matrix Switcher with Dolby Atmos & DTS Audio Down-
mixing and independent resolutions scaling and a robust
Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trade-
marks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
User Manual
user interface.
AC-AXION-4
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-AXION-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Axion AC-AXION-4

  • Page 1 AC-AXION-4 Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trade-...

  • Page 2: Table Of Contents

    I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 F E AT U R E S �...
  • Page 3 W E B U I : D I A G N O S T I C S - H D B T O U T � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 1 W E B U I : D I A G N O S T I C S - H D B T O U T C O N T�...

  • Page 4: Introduction

    In a multi-zoned distribution system, every zone can not handle full Dolby Atmos sound� Most zones are going to need 2 Channel audio� The AC-AXION-4 Matrix Switcher allows you to deliver 24+ channels to your Dolby Atmos home theater; simultaneously, it provides 2 Channel to the rest of the installation� We do this by allowing the downmixing only to affect the de-embedded audio outputs.

  • Page 5: Specifications

    Specifications...

  • Page 6: Compatible Hdbaset Receivers

    Compatible HDBaseT Receivers AC-EX70-444-RNE (Receiver /No Ethernet) AC-EX70-SC2-R (Scaling Receiver) · 70M 4k 60 4:4:4 & HDR · 70M 4k 60 4:4:4 & HDR · 100M 1080P · 100M 1080P AC-CX100-RAMP · 70M 4k 60 4:2:0 / 4k 30 4:4:4 ·...

  • Page 7: Front And Rear Panel Overview

    Front and Rear Panel Overview...

  • Page 8: Initial Setup: Webui

    Initial Setup: WebUI The AC-AXION-4 can be controlled using the Micro USB port, 3pin RS232, or over TCP/IP using the LAN connection� For initial setup it is recommended to connect the matrix to a local area network (LAN) and use a computer on the same network in conjunction with the built in WebUI�...
  • Page 9 Firmware OTA (over the air). This will compare the firmware versions currently loaded on the AC-AXION-4 and compare to the latest available� If it is up to date, you will see a prompt stating “No update available!”...
  • Page 10 16� Once the progress bar hits 100% click the CLOSE button, the firmware upgrade process is complete. 17� With the Firmware up to date it’s time to start setting up the matrix� With the Axion WebUI open, navigate to the I/O Conifg section� Label the applicable Inputs (Apple TV, Cable Box, Roku, etc) under the Input Settings - Label�...
  • Page 11 19� Set the HDMI/HDBaseT Video Scaling if needed� HDMI outputs can be upscaled (1080P signal up to 4k) and the HDBaseT outputs can be downscaled (4k signals down to 1080P)� 20� With the system and all it’s components powered up it’s time to verify signal path from source to the sync�...

  • Page 12: A D V A N C E D S E T U P : W E B U I I N P U T S E Tt I N G

    Advanced Setup: WebUI Input Settings After verifying good signal path from source to sync now it is time to go through the rest of the settings to maximize the setup� Starting with the input side with the EDID and Audio Mode settings� 1�...

  • Page 13: A D V A N C E D S E T U P : W E B U I O U T P U T S E Tt I N G

    Advanced Setup: WebUI Output Settings 8� Now navigate to the Video Output Settings under I/O Config 9� In addition to the output Label (name/alias), there are 3 settings for each HDMI output and 3 settings for each HDBaseT output� 10� Under State, you can enable/disable that port (turn that port on or off) and also enable a 1080P test pattern, the Video Scaling mode (HDMI you can choose to No Scaling or 1080P to 4k, HDBaseT you can choose ICT or 4K to 1080P), and you can Enable or Disable the Bitstream Audio (slider icon Green=ON,...
  • Page 14 Advanced Setup: 1� WebUI Extracted Audio Output Settings 1� Now navigate to the Extracted Audio Output Settings under I/O Config. 2� The extracted audio ports have 3 distinct operating modes, use the drop-down at the top to select� The three options are� Bind to Input (Default) - where the audio port number corresponds to the input signal�...
  • Page 15 5� To change the EQ settings of that port click on the emblem to the right of the volume slider� This will bring up the Audio Configuration Page. Here you can choose from 8 different EQ settings, change the Left / Right balance, and set the audio delay� 6�...

  • Page 16: W E B U I : V I D E O M At R I

    WebUI: Video Matrix Use this page to route the video INPUTS and OUTPUTS� · Click on the INPUT number to select (example below shows IN 1) · With the INPUT selected simply click on the OUTPUT you want to send that source to� ·...

  • Page 17: W E B U I : A U D I O M At R I

    WebUI: Audio Matrix Use this page to route the extracted audio� NOTE: The extracted audio ports can only be manually changed (matrixed) when in Matrix Mode� If the extracted audio is set to Bind to Input (default) or Bind to Output then this tab will not be visible, example below�...
  • Page 18 WebUI: I/O Config - Input Settings Input Settings Label - Use this to give an name/alias to your inputs (Apple TV, Cable Box, Roku, etc)� Note: There is a 15 character limit to this field, the name will replace the default “IN #” throughout the rest of the WebUI (for instance the Video Matrix tab)�...

  • Page 19: W E B U I : I / O C O N F I G - I N P U T S E Tt I N G S C O N

    Input Settings Audio Mode - There are 7 settings available (Default state is off/disabled). The AC-AXION-4 automatically down-mixes the source audio signals down to 2 CH� for the extracted audio Toslink and balanced 5pin ports. Changing the audio mode here will affect that inputs audio on all the ex- tracted ports�...

  • Page 20: W E B U I : I / O C O N F I G - O U T P U T S E Tt I N G S C O N

    WebUI: I/O Config - Output Settings Cont. Output Settings Video Scaling - The HDMI outputs can up-scale a 1080P signal to 4k� This scaling only changes the pixel density, it does not alter frame rate or color space� Output Settings Bitstream Audio - This is an enable/disable switch� By default this will be Enabled/ Green�...
  • Page 21 WebUI: I/O Config - Output Settings Cont. Output Settings Label - Use this to give an alias/name to your extracted audio outputs� Note: There is a 15 character limit to this field, the name will replace the default “OUT #” throughout the rest of the WebUI (for instance the Video Matrix tab)�...

  • Page 22: W E B U I : I / O C O N F I G - O U T P U T S E Tt I N G S C O N

    WebUI: I/O Config - Output Settings Cont. Output Settings Balance - Use this slider to adjust the Left/Right balance� Note: Default is 0 (zero), value can be -10~10 Output Settings Delay (ms) - Audio delay drop-down has eight available settings, these are measured in milliseconds�...

  • Page 23: W E B U I : S Y S T E M - I P S E Tt I N G

    • Baudrate (kbps) - This drop-down has six options: 9600, 14400, 19200, 38400, 57600 (Default), and 115200� • RS232 Address - This field to change the RS232 Address of the AC-AXION-4. You can use the text filed to enter a number (0 ~ 99) or use the Up/Down arrow buttons to increase/decrease the number�...

  • Page 24: W E B U I : S Y S T E M - T E L N E T S E Tt I N G

    WebUI: System - Telnet Settings This area contains relevant Telnet settings for the AC-AXION-4. There are two fields that can changed, En- able Disable switch and the Port Number� • Enable - This switch has two options, Green/Enabled (Default) and Red/Disabled�...

  • Page 25: W E B U I : S Y S T E M - U S E R W E B I N T E R Fa C

    WebUI: System - User Web Interface This switch has two options, Red/Disabled (Default) and Green/Enabled� When enabled (green) there will be three fields that appear, Username, Password, and Confirm Password. NOTE: The Admin Web Interface must first be Enabled and setup before this field will be available to change�...

  • Page 26: W E B U I : S Y S T E M - C L O U D S E R V I C E

    With the Cloud Services enabled you can use the System tab to check for new Firmware OTA (over the air)� This will check the firmware versions currently loaded on the AC-AXION-4 and compare to the latest avail- able� If it is up to date, you will see a prompt stating “No update available!” click CLOSE to exit�...

  • Page 27: W E B U I : S Y S T E M - F I R M W A R E U P D At E C O N

    4� 45 Seconds Keypad Lock - Enable or Disable (default) the front panel Keypad Lock� MCU/Version - Lists the current Firmware Versions UPDATE FIRMWARE - Check/upload firmware. FACTORY RESET - Restores matrix to Factory Defaults REBOOT - Reboots the AC-AXION-4...
  • Page 28 WebUI: Diagnostics - HDMI IN Input Settings Label - Use this to give an name/alias to your inputs (Apple TV, Cable Box, Roku, etc)� Note: There is a 15 character limit to this field, the name will replace the default “IN #” throughout the rest of the WebUI (for instance the Video Matrix tab)�...
  • Page 29 WebUI: Diagnostics - HDMI IN Cont. On the left, you will see the current applied EDID information� In the example above, you will see a canned 1080P - No 3D - SDR - 2 CH EDID applied to IN 1� Any EDID change, once applied will display here� Signal Info shows the connected source’s current output information�...
  • Page 30 WebUI: Diagnostics - HDMI OUT HDMI Output Label, State, and Connection Reset� Connected Device EDID shows the connected sync’s preferred EDID information and current state� This includes · Manufacturer · Monitor Name · Sink Device Type · Preferred Timing · Supported Audio Formats · 3d Support · Deep Color Support ·...
  • Page 31 WebUI: Diagnostics - HDBT OUT HDBaseT Output Label, State, and Connection Reset� Connected Device EDID shows the connected sync’s preferred EDID information and current state� This includes a REFRESH button and the following EDID information: · Manufacturer · Monitor Name · Sink Device Type ·...
  • Page 32 WebUI: Diagnostics - HDBT OUT Cont. HDBaseT Info · Link Status Indicator Light (there are 3 states) a� Green - Link quality is good (within HDBaseT threshold) b� Yellow - Link quality between the matrix and HDBaseT Receiver is marginal� You may experi- ence occasional failures like dropouts/screen flashing/or no video. c�...
  • Page 33 WebUI: Console There is a built in Command Console Using the command API (command list) you can send device specific commands or use as a live monitor while sending commands from a control system (helpful in troubleshooting)� Example 1� Click in the white box and type a�...
  • Page 34 Front Panel Control - Switching The AC-AXION-4 can be switched from the front panel by first pressing the desired OUTPUT (bottom row) button first, then by pressing the desired INPUT button (top row). 1� Press the OUTPUT button (1 through 4) on the bottom row that corresponds with the OUTPUT (Dis- play, or Sink Device) you would like to send to a source�...
  • Page 35 The user defined EDID can be uploaded using the Axion WebUI or RS-232� In addition, you can choose to read the EDID from the desired output and the captured EDID will automatically store and overwrite the EDID in “USER EDID 1” and will be applied to the selected source�...
  • Page 36 Front Panel Control - Audio Once in “Matrix” mode for audio, the extracted audio routing on the AC-AXION-4 can be controlled from the front panel: To Control: 1� Navigate to the Audio Menu� 2� Use the arrow key to highlight “Audio Mode” and press OK to select. The field will turn red.
  • Page 37 Front Panel Control - IR Remote: IR Remote Control: When routing HDMI, the matrix can be controlled by using the IR remote supplied with the product (battery not included, requires CR2025)� *Not Included The labels on the right are the OUTPUT numbers� The left arrow button decrements to the next input port, and the right arrow increments to the next input port�...
  • Page 38 Direct connection to a control system - Set the switch to “I-PASS” to connect directly to a control system� TIP - Signal Sleeve - Ground Control4 Wiring Example Sleeve - Ground TIP - Signal IR NOTES (On the Matrix): 1� By default the IR IN is routed to the corresponding HDBaseT Output number (ie. IR IN #1 --> HDBaseT Output 1, IR IN #2 -->...
  • Page 39 RS-232 and TCP/IP Control: The AC-AXION-4 can be controlled with either RS-232 or TCP/IP commands� Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine�...
  • Page 40 HDBaseT lights: LINK These ports are HDBaseT Transmitters (TX) and are designed to be connected via a Category cable (Cat6 or better) to an HDBaseT Receiver (RX)� NOTE: Non AVPro HDBaseT Receivers may work but ICT (our Invisible Compression Technology) will not� This means higher bandwidth signals (greater than 10�2Gbps) will not pass as this requires ICT�...
  • Page 41 HDBaseT lights: STATUS STATUS - Above RJ45 (HDBT) Port: (Amber) (Amber) This is an indicator showing that the power is present between the Transmitter and Receiver� This light ALWAYS BLINKS ALWAYS BLINKS steadily indicating everything is OK� If this light is flashing or not present attempt following: 1�...
  • Page 42 Command List: · Baudrate: 57600 · Checksum: None · Bit Num: 8 · Stop Bit: 1...
  • Page 43 Command List Continued:...
  • Page 44 Command List Continued:...
  • Page 45 Extracted Audio: The extracted audio ports have three distinct operating modes� Your desired mode can be set to suite your particular installation� The 3 modes are: Bind to Input ~ This is the default configuration. In this mode the audio port number corresponds to the INPUT signal.
  • Page 46 2 CH. 2 CH Balanced Audio Port - Supports 2 CH PCM audio only, which is ideal for 2 Channel systems and zoned audio systems. No Down-mixing on this version, see AC-AXION-4- AVDM. Toslink Audio Port - Just like the balanced 2 CH ports, the Toslink extracted audio ports are down-mixed to 2 CH.
  • Page 47 Troubleshooting · Verify Power - Check that the power supply is properly connected and on an active circuit� · Verify Connections - Check that all cables are properly connected� · TX/RX Indicator Troubleshooting Lights - Page(s) 40-41 · IR Issues - Verify correct connections - Page(s) 37-38 Note: Visibly flashing Emitters may not function properly, if you are experiencing issue try the IR Cables that are included in the box�...
  • Page 48 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions� · Use the power supplies provided� If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.
  • Page 49 Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support� When calling, the following information should be provid- · Product name and model number · Product serial number ·...
  • Page 50 RED TAPE. AVPro Edge is not responsible for untraceable purchases or those that were made outside of an authorized channel� If we conclude that a product or serial number has been tampered with as identified by warranty seal or physical examination the warranty will be void� Additionally, excessive physical damage (beyond normal wear &...
  • Page 51 The maximum liability of AVPro Global Holdings LLC under this limited warranty shall not exceed the actual purchase price paid for the product� AVPro Global Holdings LLC is not responsible for direct, special, inciden- tal or consequential damages resulting from any breach of warranty or condition, or under any other legal theory to the maximum extent permitted by law�...
  • Page 54 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
