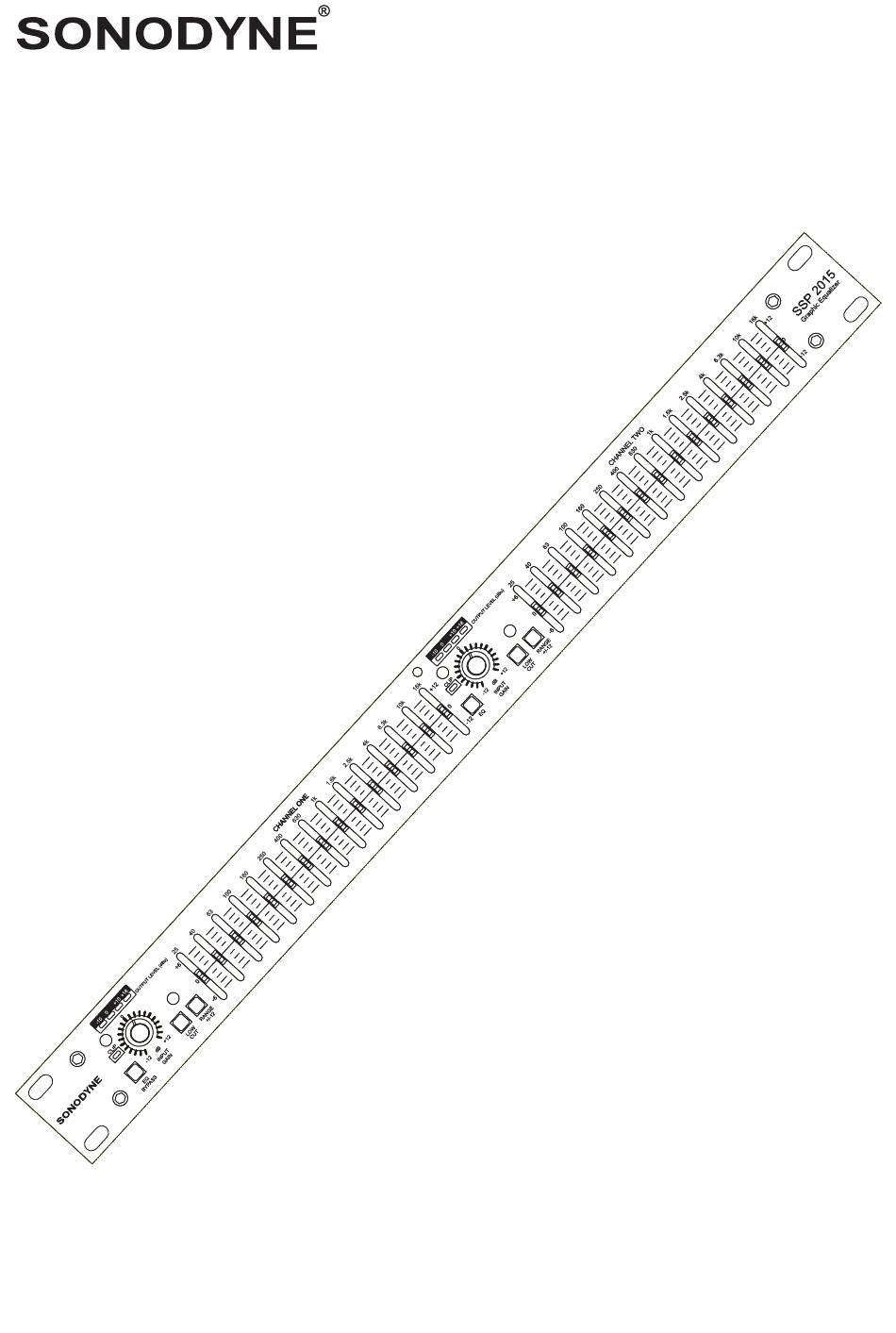

  • Page 1 SSP 2015 dual channel 15 band graphic equalizer I owners manual www.sonodyne.com...
  • Page 2: Important Safety Instructions

    TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE CONNECTORS XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), pin 3: cold (-). SSP 2015 page 1...
  • Page 3: Main Features

    MAIN FEATURES/ IN THE BOX Thank you for purchasing the Sonodyne Graphic Equalizer. Please read this manual thoroughly to get the most out of the product and ensure long-term, trouble-free use. After reading this manual, keep it available for future reference.
  • Page 4: Front Panel

    OUTPUT BAR GRAPH LEVEL: These four LEDs indicate output level of the equalizer. The red LED is 3dB below clipping and is marked as +18dBu. It monitors the level at the output of the equalizer after all other processing FREQUENCY BAND SLIDER CONTROLS: Each one of these slider potentiometers will boost or cut at its respective frequency by ±6dB or ±12dB, depending upon the position of the BOOST/CUT RANGE switch. When all the sliders are in the center detent position the frequency response of the equalizer is flat. The frequency band centers are marked at 2/3rd octave intervals on ISO standard spacing SSP 2015 page 3...
  • Page 5: Connecting The Eq To Your System

    The unit may be turned on and off from the rear panel power switch or a master equipment power switch. Since the Equalizers consume a relatively small amount of power, the units may be left on continuously. SSP 2015 page 4...
  • Page 6: Installation Considerations

    Most balanced (3-conductor) cables have the shield connected at both ends. This can result in ground loops which cause hum. If hum persists try disconnecting the shield on one or more of the cables in the system, preferably at the input of a device, not at the output. SSP 2015 page 5...
  • Page 7: Troubleshooting

    • Be certain that all audio wiring except for loudspeaker lines is well shielded, and that low level wiring is not run parallel to and/or in close proximity to AC power wiring INTERMITTENT AUDIO • Check the other equipment and the wiring to make certain that the signal is not Intermittent earlier in the chain • Check the integrity of all cables using a cable tester SSP 2015 page 6...
  • Page 8: Specifications

    DIMENSIONS (H x W x D) 4.8 lbs PRODUCT WEIGHT 4.7 lbs SHIPPING WEIGHT Due to continuous improvements, all specifications are subject to change A product of the Mukherjee Innovation Centre Sonodyne Technologies Pvt. Ltd, 98 NB Block E New Alipore, Kolkata 700053, INDIA Tel: 1-800-123-37-36; E-mail: response@sonodyne.com Please visit us at www.sonodyne.com...
