Summary of Contents for SitOnit Seating eBEAM
Page 1

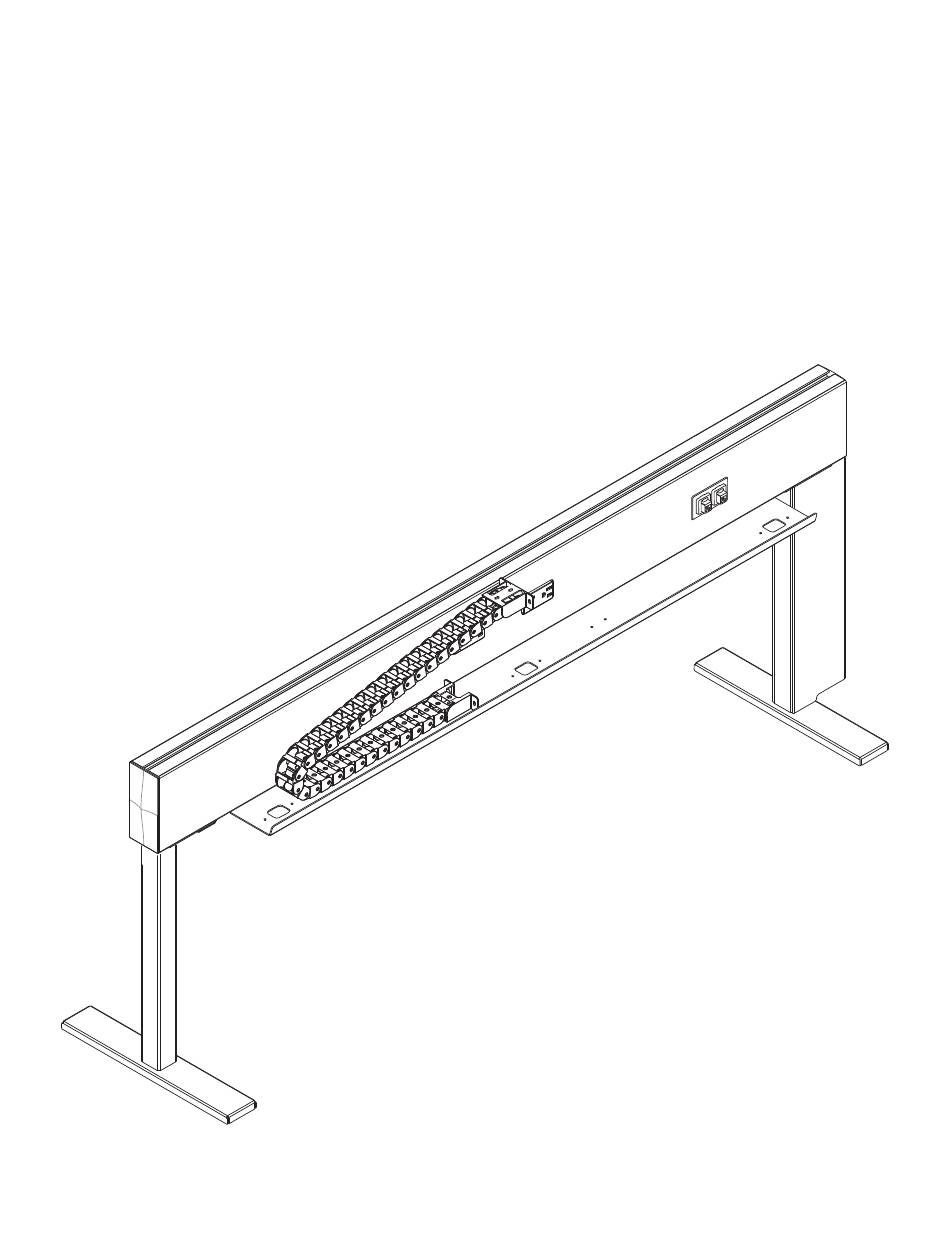

ASSEMBLY INSTRUCTIONS eBEAM is a straightforward, streamlined solution for adding power to your workstations. With adaptable legs, multiple beam lengths and cable management options that make it practically mess-free, eBEAM is simply powerful (and powerfully simple). C6547 Rev. A...
EBEAM ASSEMBLY INSTRUCTIONS COMPONENT LIST Power Data Pack Beam • Power Distribution Harness (1) • Data Adapter Tree (1) • Beam (1) • End Cap (2) • Middle Clip (1) • Blank Faceplate (2) Component quantities shown are for a standard 2-seat back-to-back •...
Page 3
EBEAM ASSEMBLY INSTRUCTIONS Beam Cover Power Distribution Harness Duplex Receptacle SNAP STEPS Note: We recommend reading these instructions in their entirety and laying all components out in advance. Remove cover from beam and set aside. If duplex receptacles were purchased, set them into the power distribution harness with the arrows pointing up, then slide outwards to snap them into place.
Page 4
EBEAM ASSEMBLY INSTRUCTIONS Mounting Bracket Bottom Harness Clip Top Harness Clip STEPS To attach a distribution harness: Align distribution harness with the pre-installed mounting bracket, ensuring that the arrows on both the distribution harness and the duplexes point up. Hook the bottom harness clips first, then rotate slightly and apply pressure to snap the top harness clips into the mounting bracket.
Page 5
EBEAM ASSEMBLY INSTRUCTIONS LEG FACES IN LEG FACES OUT Bottom Slot Infeed would run up this side Infeed would run up this side Beam is shown upside-down. Top of Beam Beam is shown upside-down. Beam is shown upside-down. Beam is shown upside-down.
EBEAM ASSEMBLY INSTRUCTIONS SINGLE-SIDED BACK-TO-BACK Beam is shown upside-down. Top of Beam Beam is shown upside-down. Beam is shown upside-down. STEPS For leg installation with wire trays complete steps 7–11: Flip the beam upside-down and slide in one mounting plate per wire tray, aligning them with the central holes of the beam.
Page 7
EBEAM ASSEMBLY INSTRUCTIONS SEPARATE MOUNTING PLATE SHARED MOUNTING PLATES Wire Tray Tabs Mounting Plate for Wire Tray(s) Mounting Plate for Leg Beam is shown upside-down. Beam is shown upside-down. MOUNTING PLATE FACES IN MOUNTING PLATE FACES OUT SHARED MOUNTING PLATE Beam is shown upside-down.
Page 8
EBEAM ASSEMBLY INSTRUCTIONS Bottom Slot Power Infeed STEPS 12. Route power infeed through one of the bottom slots of the beams and plug the end of the power infeed into the nearest distribution harness, ensuring that the arrows on both the distribution harness and the power infeed point upwards.
Page 9
EBEAM ASSEMBLY INSTRUCTIONS Bottom Slot Power Infeed STEPS 14. Remove the ¼"–20 × 1¼" screw and ¼"–20 × ¼" hex nut from the pre-attached hose clamp assembly. 15. Position the hose clamp above one of the bottom slots and fasten it to the thread feature on the upper inside of beam with a #10–24 ×...
Page 10
EBEAM ASSEMBLY INSTRUCTIONS DATA FACEPLATE BLANK FACEPLATE Data Modules Are Not Included STEPS 17. Break off applicable data adapters from tree and snap into data faceplates, then snap in respective data modules, etc. (not supplied). 18. Snap blank faceplates and/or data faceplates into window cutouts on the beam and beam cover.
Page 11
EBEAM ASSEMBLY INSTRUCTIONS STEPS If no screens were purchased, complete step 20 below to finish the beam. For optional screen assembly, complete steps 21–26 and continue from there. 20. Align end caps with square shapes and bottom opening at each end of the beam and pound flush into place with a non- marring mallet/hammer, then peel off protective film.
Page 12
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS COMPONENT LIST Horizontal Wire Tray Vertical Wire Manager Screen Power Infeed Cover (Per Side) (Each) • Screen • Power Infeed Cover (1) • Wire Tray (1) • Wire Manager (1) Per Mount: Component quantities are per accessory.
Page 13
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS Steps 21-25: Parts and instructions are per mount. There are two mounts included with 48" screens or three mounts included with 60"–72" screens. MOTIF SCREENS DOODLE AND SECTOR SCREENS Highest Point Highest Point STEPS 21. Separate U-bracket halves.
Page 14
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS Steps 21-25: Parts and instructions are per mount. There are two mounts included with 48" screens or three mounts included with 60"–72" screens. MOTIF SCREENS DOODLE AND SECTOR SCREENS M6 × 35 mm Screw M6 × 20 mm Screw STEPS 23.
Page 15
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS STEPS 26. Align end caps with square shapes and bottom opening at each end of the beam and pound flush into place with a non- marring mallet/hammer, then peel off protective film. If no additional accessories were purchased, the beam is now complete.
Page 16
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS Space for Infeed and Data Cables MOUNTING PLATE FACES INWARD MOUNTING PLATE FACES OUTWARD STEPS 27. For optional power infeed cover assembly: To install the infeed cover, remove backing from all pieces of the hook and loop.
Page 17
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS FINISHED FINISHED LATERAL INSTALLATION VERTICAL INSTALLATION FINISHED PERPENDICULAR INSTALLATION STEPS For optional vertical wire manager assembly: choose one of the installation styles above. Then, complete steps 28–30. To report any issues with this product, please contact our customer service department at (888) 274-8664.
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS LATERAL INSTALLATION VERTICAL INSTALLATION Wire Tray Cutout Wire Tray Cutout Underside of wire tray is shown. PERPENDICULAR INSTALLATION Wire Tray Cutout STEPS 28. Vertical installation: Attach the first wire manager clip to the underside of the wire tray using two #10–24 ×...
Page 19
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS LATERAL INSTALLATION VERTICAL INSTALLATION Back Table Edge Back Table Edge PERPENDICULAR INSTALLATION Back Table Edge STEPS 29. Attach the second wire manager clip to the underside of the adjacent table top and use a Phillips #2 driver to fasten with two #8 ×...
Page 20
EBEAM ACCESSORY ASSEMBLY INSTRUCTIONS LATERAL INSTALLATION VERTICAL INSTALLATION PERPENDICULAR INSTALLATION STEPS Note: To change the direction of the the wire management curvature, links can be detached and rotated 180º. To report any issues with this product, please contact our customer service department at (888) 274-8664.
Page 21
To reduce the risk of death, serious injury, or property damage: Read and follow the safety information and the provided instructions when assembling this product. Do not change or replace components and accessories provided by SitOnIt Seating. PROFESSIONAL ASSISTANCE REQUIRED Connection to the building wiring must be completed by a qualified electrician.
Page 22
EBEAM SPECIFICATION INFORMATION SINGLE-SIDED BACK-TO-BACK Power Beam 1-Seat 2-Seat 3-Seat 4-Seat 5-Seat 2-Seat 4-Seat 6-Seat 8-Seat 10-Seat Beam Parts Beam End Cap Leg Parts Mounting Plate ⁄ "–18 × ¾" Screw Power Distribution Harness Duplex Receptacles Hose Clamp Middle Clip Power Infeed #10–24 ×...
Page 23
EBEAM TECHNICAL INFORMATION Specifications Compatible VGA Jack Compatible Keystone Jacks • System rating 20A/120V • Byrne 120" VGA Connector • Belden Industrial REVConnect • 15 amp duplex receptacle • Allen Tel Versa Tap Series • Shared neutral wiring systems • L-com Keystone Jacks...
