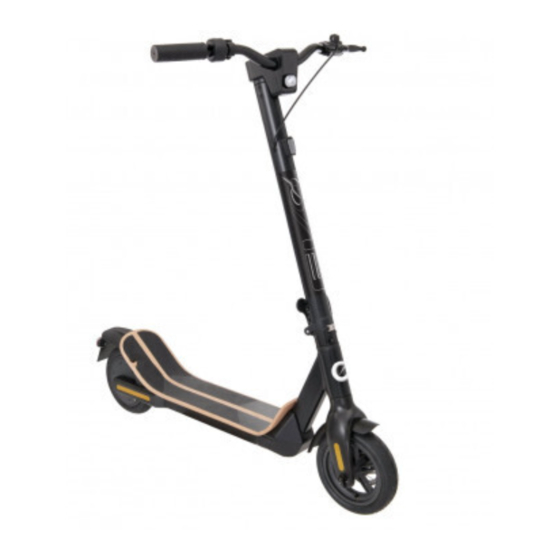

VT8 E-SCOOTER
INSTRUCTION MANUAL
Please read and understand this entire manual before assembly or use
IMPORTANT:
Please contact our customer service number if any enquiries:
www.htigroup.co.uk
evo-support@htigroup.co.uk
0300 303 5544
Save all packaging material until assembly is completed.
HTI Group, Eastham House,
Copse Road, Fleetwood,
FY7 7NY, UK
HTI EU Authorised Representative
The Merrion Buildings -
Iconic Offices, 18-20 Merrion Street,
Dublin 2, D02 XH98, Ireland
14
+
Scan the QR code
to learn more
about this
lithium scooter
Advertisement
Summary of Contents for HTI EVO VT8
- Page 1 0300 303 5544 lithium scooter Save all packaging material until assembly is completed. HTI EU Authorised Representative HTI Group, Eastham House, The Merrion Buildings - Copse Road, Fleetwood, Iconic Offices, 18-20 Merrion Street, FY7 7NY, UK...
- Page 2 TABLE OF CONTENTS P . 1-3 SAFETY NOTICE P . 4 ABOUT YOUR SCOOTER, PARTS LIST & OPERATING RANGE P . 5 GENERAL WARNINGS & PRODUCT DIAGRAM P . 6-7 ASSEMBLY & SET UP P . 8 FOLD AND UNFOLD P .
- Page 3 SAFETY NOTICE 6. Do not go over bumps that are steeper than 3 cm. 7. For your driving safety, always keep safe speed. This may cause the scooter to overturn and cause Avoid using the scooter at night. injury to the user or damage the scooter. Bumps or potholes less than 3cm should also be avoided as much as possible.
- Page 4 SAFETY NOTICE >100kg 12. In severe weather such as rain, snow, or strong 13. The user should use this product in accordance winds, please avoid riding as much as possible to with the relevant instructions in this product avoid possible damage. During wet weather, manual, and not exceed the load that the extension of braking distance should be reserved.
- Page 5 ABOUT YOUR NEW ELECTRIC LITHIUM SCOOTER Thank you for purchasing our product. Keep these points in mind as you read this guide: Material: Steel & Alu. Rated power(W): 350W Materials Folded Size(mm): Front Wheel Size: 230mm Motor: 1160*705*510mm Rear Wheel Size: 230mm &...
- Page 6 WARNING! FOR SAFETY, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. ADULT ASSEMBLY REQUIRED The product contains small parts, which are for adult assembly only. Keep children away when assembling. • PREVENT FIRE AND ELECTRIC SHOCK: - Do not charge near heat or flammable materials.
- Page 7 ASSEMBLY & SET UP ● Handle with care! Hold the handlebar and ● Life up steering column and handlebar with care. steering column. ● Pull up the folding lever and lock the steering column in place. P . 6...
- Page 8 ASSEMBLY & SET UP ● Insert and assemble the handlebar into the steering column. Make sure the screw holes on steering column align with the screw holes on handlebar. ● Use the hex key to fasten the screws on both sides tightly.
- Page 9 FOLD AND UNFOLD Fold ● Pull down the folding lever to ● Fold the steering column. ● Make sure the folding clip (near release the steering column. the throttle) click onto the folding hook on deck. Unfold ● Release folding clip from folding ●...
- Page 10 CHARGING YOUR LITHIUM SCOOTER WARNING! • This product has CHARGING PROTECTION: When charging, all the functions will be cut off! ● Power off the scooter. Let it rest on ● Plug-in the charging plug of ● Plug-in the power plug of battery ground and open charging port battery charger to charging port charger into socket.
- Page 11 HOW TO OPERATE YOUR LITHIUM SCOOTER LCD Panel Display Speed Gear Mode Light On Battery Level Folding Clip Hand brake Power On/Off button Throttle POWER ON / OFF Press ON/OFF Button to switch on the scooter and LCD panel. Press and hold the ON/OFF Button (in ON mode) to switch off the scooter and LCD panel. SPEED CONTROL Press and hold the right Throttle to accelerate.
- Page 12 WARNING! A GUIDE TO SAFE SCOOTING: 1. This is an electric lithium scooter designed for a single rider only. 2. Ensure all locking devices are engaged before using the scooter, EN14619, Class A. 3. Please add oil for lubrication periodically and replace bearings ( centre of front wheel ) when worn. 4.
- Page 13 WARNING! 1. Only use the product in accordance with local regulations. 2. It is designed for persons aged 14 or above. 3 Protective helmet is strongly recommended. 4. WARNING! Never use the product close to a water source. 5. WARNING! Stop using the product when damaged. 6.
- Page 14 MAINTENANCE • If the tyres are underinflated, release the valve cap connected to the air valve extender on the value and use a pump to inflate the tyres to not more than 50 PSI (340 kpa). WARNING! - For the purpose of recharging the battery, only use the detachable supply unit provided with this product (Charger model: GJS150-4200200 ).
- Page 15 TROUBLESHOOTING GUIDE Problem Possible Cause Solution Fully charge the battery. First charge for at least 5 hours Battery prior to using the scooter for the first time. is not charged Wires or connectors Check to ensure that charger is tightly plugged into the are loose charging port.
- Page 16 Frame, wheel hub motor and rear-wheel hub HTI is not liable for any incidental or consequential loss or damage due to the direct or indirect use of this product. For your records, we recommend to save your original sales receipt with your HTI product manual and batch code directly on your product manual for reference.
