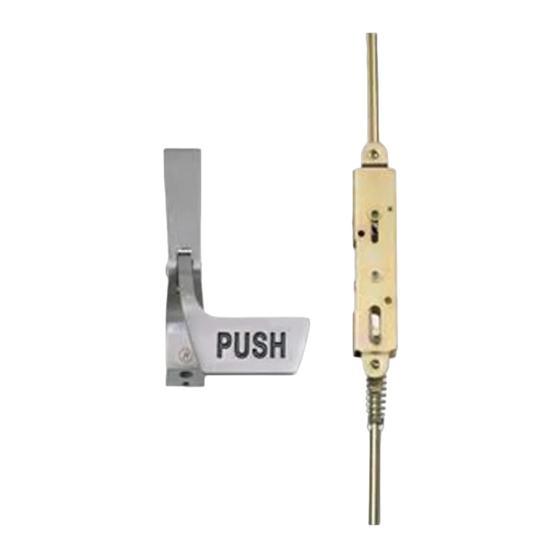

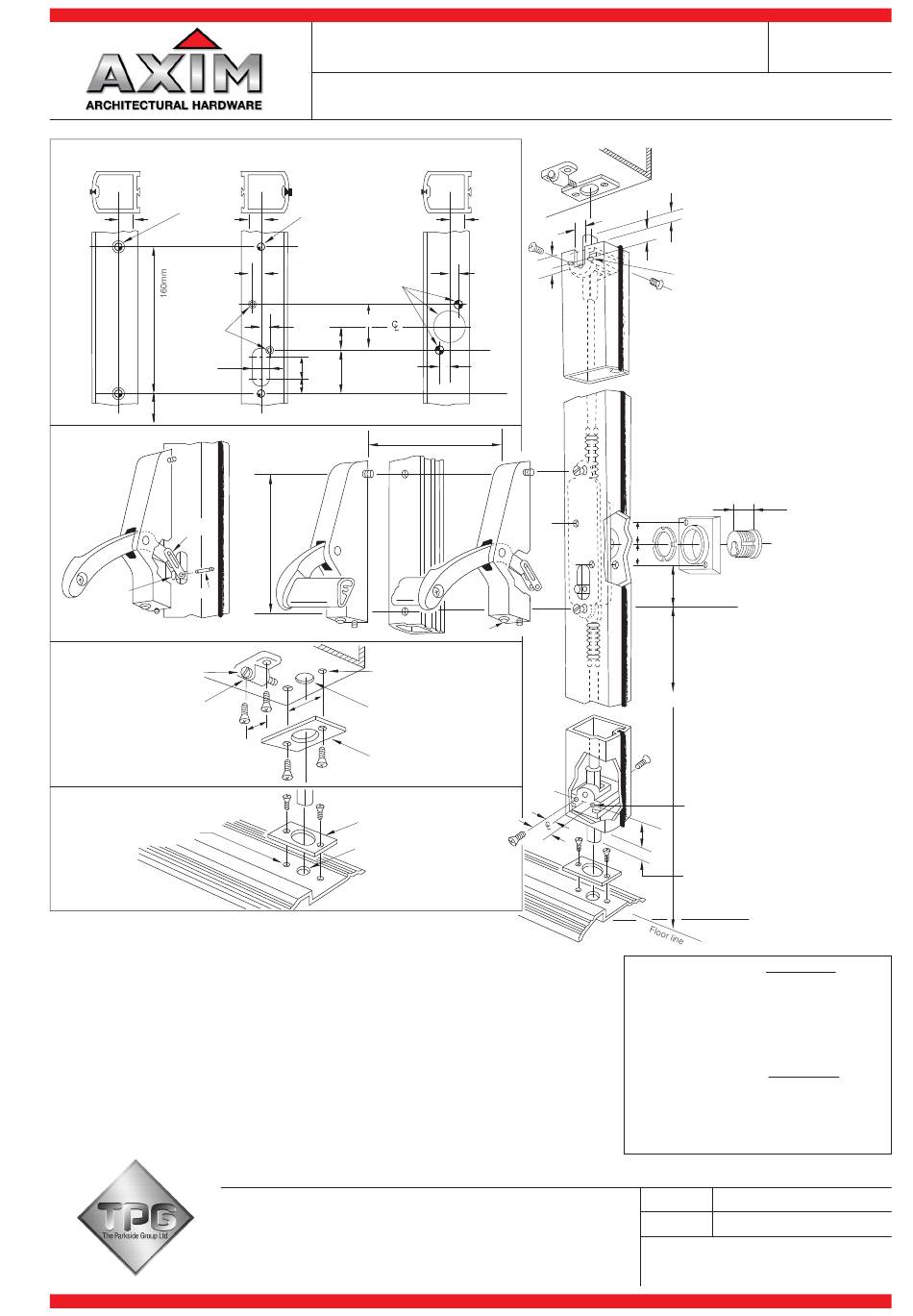

Axim PR-7085 Series Assembly

Hinge stile (inside) Lock stile (inside)
Drill 5mm
(.203) and tap
1/4-20 (2)
17mm 17mm
9.5mm
(.375)
Drill 5mm
(.188) and
countersink
(2)
16mm
906mm
to floor
INSTALLATION OF
ACTUATOR LINK
Actuator
link
Actuator
Connecting
pin
pin
Place actuator link over actuator
pin & connect using connecting pin
HEADER PREPARATION
Adjustment screw
Trip bracket used as
release when door
stop is not used
THRESHOLD PREPARATION
Drill 3mm (.125) holes (2)
MOUNTING INSTRUCTIONS
1. Determine hand of door and prepare inside of lock and hinge
stiles as show.
2. If Cylinder Key Lock is to be used, prepare inside and outside
of lock stile as shown.
3. Insert Rod and Case Assembly into lock stile and secure with
(2) 1/4-20 Shoulder Studs.
4. If Key Lock is used, insert Cylinder in Mounting Pad and
secure with Locking Ring. Install using (2) #8-32x49mm Flat
Head Machine Screws.
5. Position Exit Pad over stile and attach Actuator Link to Actuator
Pin using Connecting Pin provided. Place on stile over 1/4-20
Shoulder Studs and tighten 3 Socket Head Set Screws to
secure in place.
6. Adjust length of top and bottom Latch Bolts by turning in or
out. When the Panic Arm is fully depressed, the Latch Bolts
TITLE
CONCEALED ROD CRASH BAR
PR-7085 SERIES EXIT DEVICE
SUB TITLE
ASSEMBLY DETAILS PR-7085
Lock stile (outside)
Drill 7mm (.266)
holes (2)
17mm
For lock cylinder only
Drill 5mm (.203)
clearance holes (2)
and 36mm
cylinder hole
51mm
9.5mm
(.375)
25mm
10mm
24mm
48mm
16mm
Cross bar length (see note #8)
160mm
Drill 3mm (.125) holes (4)
22mm x 27mm hole
for strike or 17mm
40mm
hole if strike not used
22mm
Strike
Strike
22mm x 27mm hole
for strike or 17mm
hole if strike not used
should be slightly recessed from flush with the top and bottom
of the door. NOTE: Flat notch side of Bolt must face the
outside of the door. Install top and bottom Latch Bolt Guides
using (6) #10x13mm Flat Head Self-threading Screws.
7. Install (2) 1/4-20 Shoulder Studs on hinge stile. Place other
Exit Pad over Studs and tighten 3 Socket Head Set Screws to
secure in place.
8. Measure distance from inside edge to inside edge of Exit pads
for proper Cross Bar length. Cut Cross Bar. CAUTION: Cross
Bar length must be within ± 1mm for unit to function properly.
9. Loosen 3 Set Screws on hinge stile Exit Pad and install Cross
Bar using (2) 1/4-20x25mm Oval Head Self-threading Screws.
Tighten 3 Set Screws to secure in place.
10. Prepare header and threshold as shown. If Header and
Threshold Strikes are required, install using (4) #8x25mm Flat
Head All-purpose Screws.
The Parkside Group Ltd
The Willow Centre
17 Willow Lane, Mitcham, Surrey, CR4 4NX
Tel: 020-8685 9685 Fax: 020-8646 5096
Email: axim@parksidegroup.co.uk
Web Site: www.axim.co.uk
9mm
10mm
17mm
Lock
cylinder
Dogging
pin
10mm
19mm
See note #6
12mm
Drill 5mm (.203)
& countersink (3)
25mm
25mm
25mm
47.5mm (1.875)
906mm
Drill 5.2mm
(.203) and
countersink (3)
14mm
See note #6
DOGGING EXIT DEVICE USING DOGGING PIN:
Fully depress Cross Bar and hold, push up Dogging Pin with
screwdriver and rotate 90 in either direction.
o
TO RELEASE EXIT DEVICE:
Hold Cross Bar down and rotate Dogging Pin with screwdriver
in either direction until Dogging Pin releases.
DOGGING EXIT DEVICE USING CYLINDER KEY:
Fully depress Cross Bar and hold, turn Key clockwise
approximately 60 , return Key to centre and remove.
o
TO RELEASE EXIT DEVICE:
Turn key counterclockwise 90 , return Key to centre and remove.
o
SCALE NTS @A4
DATE MARCH 2014
For scaled technical or CAD drawings,
please contact AXIM.
