Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product.
Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with
instructions could result in personal injury and/or damage to product or property. Please retain instructions for
future reference.
UNPACKING
After unpacking unit, inspect carefully for any
damage that may have occurred during transit.
Check for loose, missing, or damaged parts. If
any damage is observed, a shipping damage
claim must be filed with carrier. Do not use the
DURALAST
17 Piece Air Tool Kit if broken, bent,
®
cracked or damaged parts (including labels) are
noted. Any 17 Piece Air Tool Kit that appears
damaged in any way, operates abnormally or is
missing parts should be removed from service
immediately. If you suspect that the 17 Piece
Air Tool Kit was subjected to shock load (a load
that was dropped suddenly, unexpectedly, etc.)
immediately discontinue use until it has been
checked by a factory authorized service center.
WARNING
The following safety information is provided as a guideline to help you operate your 17 Piece Air Tool Kit under the
safest possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe
handling instructions are not known or not followed. The following safety instructions are to provide the user with the
information necessary for safe use and operation. Please read and retain these instructions for the continued safe
use of your tool. Failure to follow instructions listed below may result in serious injury. In addition, make certain that
anyone that uses the equipment understands and follows these safety instructions as well.
Explanation of Safety Signal Words
WARNING
: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
CAUTION
: Used without the safety alert symbol indicates a potentially hazardous situation which, if not
avoided, may result in property damage.
NOTES
: Provide clarity and helpful information.
05/15
2015 DURALAST
®
80-375

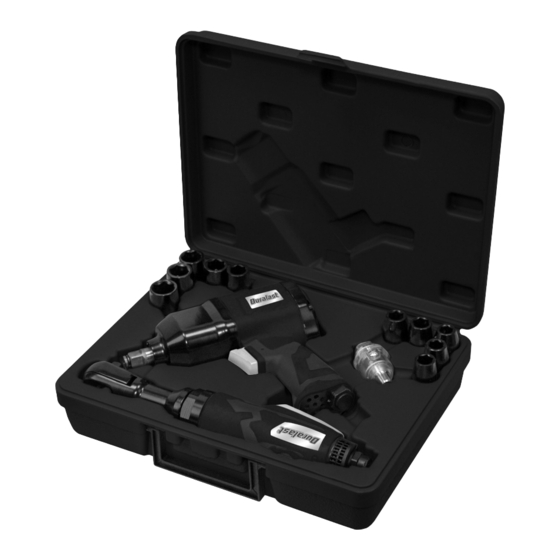

17 PIECE
AIR TOOL KIT
®
Advertisement
Table of Contents
Summary of Contents for Duralast 80-375
- Page 1 Operating Instructions and Parts Manual 80-375 Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference.
- Page 2 80-375 17 PIECE ® AIR TOOL KIT Thank you very much for choosing a DURALAST inspected to make sure that it can perform its Product! intended function correctly. If in doubt, the part should be repaired. Refer all servicing to a qualified For future reference, please complete the owner’s...
- Page 3 DISPOSAL NOTE: The manufacturer declines any and all At the end of the useful life of the DURALAST Impact responsibility for damage to vehicles or components if Wrench or Air Ratchet Wrench, dispose of the said damage is the result of unskillful handling by the...
- Page 4 Operating Instructions and Parts Manual 80-375 17 PIECE ® AIR TOOL KIT Always disconnect tools from the air supply PRODUCT SPECIFICATIONS before installing, adjusting or removing any ½” DRIVE IMPACT WRENCH accessories or before performing maintenance. 4. Do not carry any air tool by the hose. Keep air Driver Size: 1/2”...
- Page 5 Operating Instructions and Parts Manual 80-375 17 PIECE ® AIR TOOL KIT WARNING TROUBLESHOOTING Any excess oil in the motor is immediately expelled Problem Cause Remedies from the exhaust port. Always direct exhaust port away from people or objects. Unit will...
- Page 6 Operating Instructions and Parts Manual 80-375 17 PIECE ® AIR TOOL KIT ½” DRIVE IMPACT WRENCH Parts List Item # Part Name Quantity Item # Part Name Quantity 80-360-21 Adjustment Knob 80-360-1 Housing 80-360-2 Front Housing 80-360-22 Knob Spring 80-360-3...
- Page 7 Operating Instructions and Parts Manual 80-375 17 PIECE ® AIR TOOL KIT ⁄ ” DRIVE AIR RATCHET WRENCH Parts List Item # Part Name Quantity Item # Part Name Quantity 80-363-17 Steel Ball 80-363-1 Housing 80-363-2 Trigger 80-363-18 Blade 80-363-3...
- Page 8 ® If for up to three years from the date of purchase of this DURALAST product, you find any defect in material or workmanship through normal usage, return it to the place of purchase, or to customer service for repair or replacement at our discretion.
